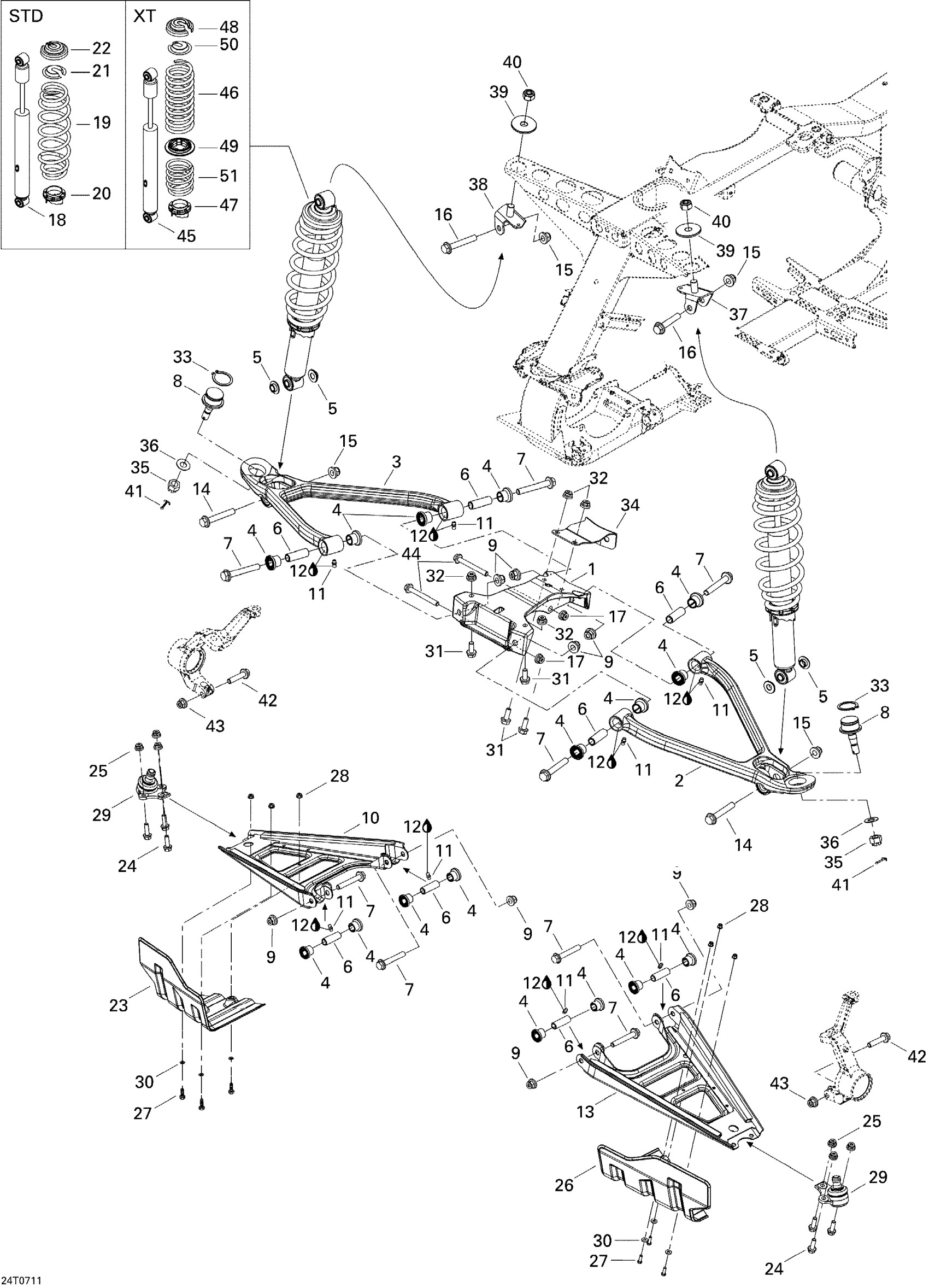

Can-Am Outlander 650 XT 4 X 4, 2007 07- Front Suspension XT Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$158.99

2

LH Upper Arm

706200641

Unavailable

3

RH UPPER ARM - Call your local BRP dealership

706200403

Unavailable

4

Bushing

706200181

$3.14

5

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

6

Sleeve

706201587

$3.79

7

Hex. Flange Screw M10 X 70

207607046

$2.96

8

Ball Joint

706200653

$44.99

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

Suspension Arm

706205905

$158.99

11

Grease Fitting

408200700

$3.49

12

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

13

Suspension Arm

706205905

$158.99

14

Hex. Flange Screw M10 X 65

207606536

$4.44

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M10 X 55

207605544

$3.38

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$11.49

24

Hex. Flange Screw M8 X 25

207682544

$1.35

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

$11.49

27

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

Joint Attachment

706200444

$51.99

30

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

31

Hex. Flange Screw M8 X 20

207682044

$1.15

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Circlip 32 mm

293370009

$1.39

34

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

35

Nut M12

250100099

$2.09

36

Hardened Washer

706200281

$2.85

37

LH Upper Bracket

706200440

Unavailable

38

R.H. BRACKET - Call your local BRP dealership

706201036

Unavailable

39

SPACER - Call your local BRP dealership

706200490

Unavailable

40

Elastic Stop Nut M12

232521416

$1.69

41

Cotter Pin

211400017

$0.33

42

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

43

Hex. Flange Elastic Nut M10

233201414

$1.58

44

Hex. Flange Screw M8 X 70

207687044

$7.41

45

Front Shock | STD

706200408

$158.99

46

FRONT SPRING - Call your local BRP dealership | XT

706200564

Unavailable

47

Adjuster Ring

706002356

$18.49

48

Spring Stopper

706200881

$12.99

49

SPRING SPACER - Call your local BRP dealership

706000472

Unavailable

50

Cap

706200785

$4.69

51

FRONT SPRING - Call your local BRP dealership | XT

706200590

Unavailable
