Description

Price

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

20

Cover | Package XMR

707001563

$23.99

25

Hex. Flange Screw M6 X 50

207665044

$4.12

41

External Serrated Lock Washer 6 mm

234461608

$1.15

50

Insulator Pad

710000073

$11.12

56

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

57

Oetiker Clamp | Europe

293650044

$5.09

70

Throttle Cable

707000955

$13.24

75

Cable Guide

707000434

$11.60

90

Throttle Handle | 4X4

707000595

$214.99

100

Socket Head Screw M5 X 25

205052588

$1.90

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$10.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Bracket

707001193

$16.99

155

RH Rear Engine Bracket

707001194

$16.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Bracket

707001256

$13.49

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

285

CVT Filter

715003483

$54.99

286

CVT Filter Base

707001171

$8.59

287

CVT Filter Support

707001203

$65.99

288

Hex. Flange Screw M6 X 25

207562544

$1.69

290

CVT Air Inlet

707001087

$43.99

291

Heat Shield

707001654

$2.59

292a

CVT Air Inlet

707001301

$53.99

292b

Upper CVT Air Inlet

707001738

$55.99

292c

Tube

707001263

$9.79

292d

Norma Clamp

293650091

$11.12

293

Norma Clamp

293650091

$11.12

294

Welded Support

707001498

$89.99

295

Deflector

707001129

$20.99

330

Screw PT K60 X 30

250000949

$2.11

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

335

Flat Washer M6, Stainless

234062600

$0.77

340

CVT Air Outlet Adaptor

707001168

$15.99

350

Norma Gear Clamp

293650118

$13.16

355

Norma Clamp

293650091

$11.12

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$10.49

362

Heat Shield

707001206

$10.49

365

Air Outlet

707001496

$81.99

366

Air Outlet

707001497

$43.99

367

Tuflok Plastic Rivet

293150230

$1.47

368

Heat Shield

707002092

$11.99

380

Rubber Stopper

708000506

$7.55

395

Lever

707000911

$20.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

445

Bushing

293900106

$4.55

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

490a

Hex. Jam Nut M8

232180600

$0.67

510

Shifter Rod

707002085

$33.99

516

Screw Socket M10 X 25 | Europe

205402556

$3.91

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Nut M6

233161414

$2.11

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610

Shift Arm | Except Europe

707000840

$16.87

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

660

Cover OPS

707000410

$13.24

670

Hex. Flange Screw M6 X 12

210261250

$1.90

680

Upper Cable Support

707001955

$10.49

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

737

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

740

Air Outlet Support

707003075

Unavailable

742

Hex. Flange Screw M6 X 20

207662044

$2.00

743

Flat Washer 6 mm

234062410

$0.77

745

Panel Nut M6 X 1.0

250100198

$2.11

750

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

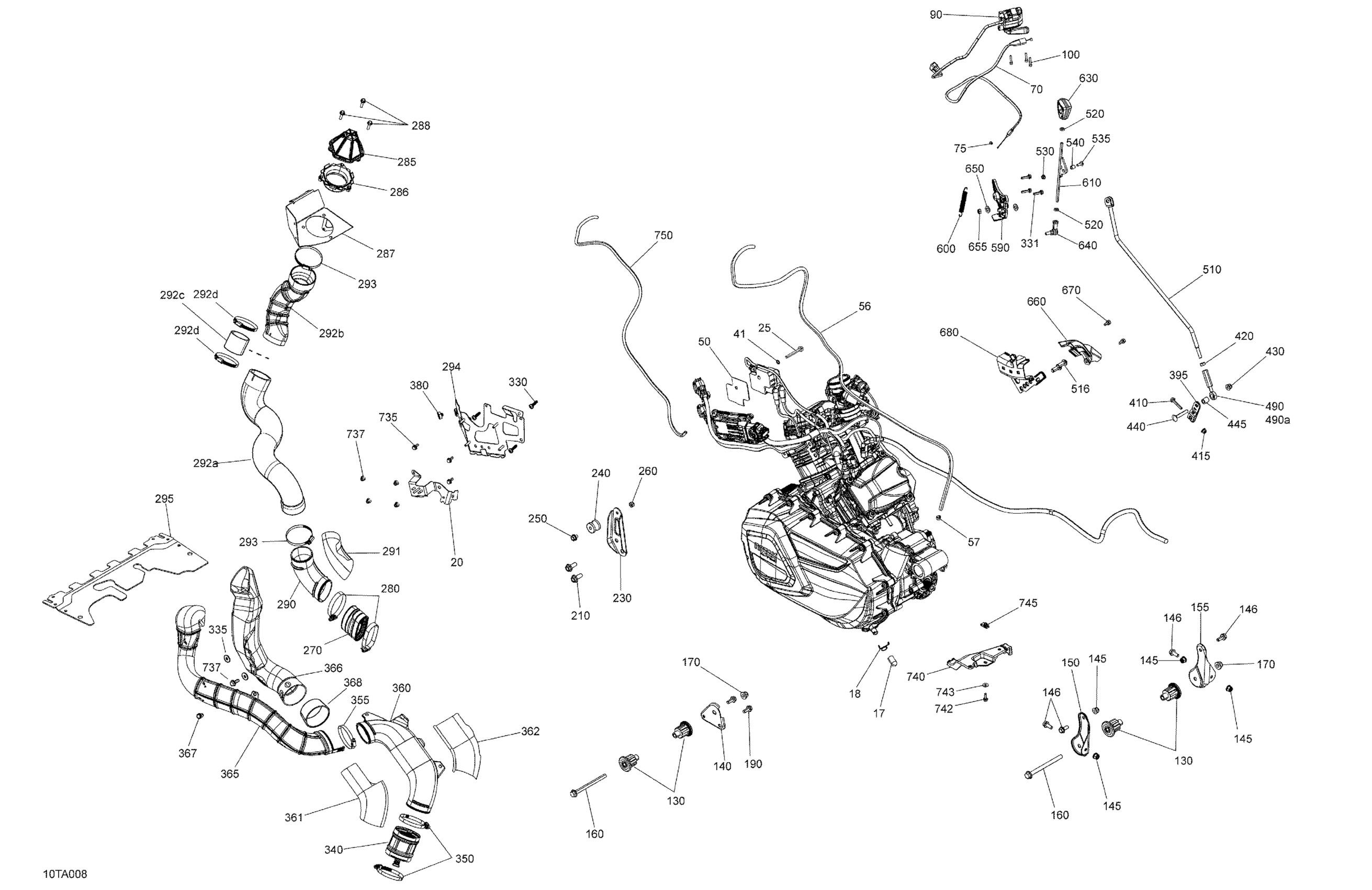

Can-Am 005 - Outlander 570 EFI - XMR - International, 2021 02- Engine - System Diagram

Plug

Retainer Clip

Cover | Package XMR

Hex. Flange Screw M6 X 50

External Serrated Lock Washer 6 mm

Insulator Pad

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Oetiker Clamp | Europe

Throttle Cable

Cable Guide

Throttle Handle | 4X4

Socket Head Screw M5 X 25

Vibration Damper

Engine Support

Hex. Elastic Flange Nut M8

Hex. Flange Screw M8 X 20

LH Rear Engine Bracket

RH Rear Engine Bracket

Hex. Flange Screw M10 X 125

Hex. Flange Elastic Nut M10

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M10 X 25

Upper Engine Bracket

Rubber Isolator

Flange Screw M8 x 10, Scotch Grip

Hex. Elastic Stop Nut M8

Flexibale Adaptor

Norma Clamp

CVT Filter

CVT Filter Base

CVT Filter Support

Hex. Flange Screw M6 X 25

CVT Air Inlet

Heat Shield

CVT Air Inlet

Upper CVT Air Inlet

Tube

Norma Clamp

Norma Clamp

Welded Support

Deflector

Screw PT K60 X 30

Hex. Flange Screw M6 X 20, Scotch Grip

Flat Washer M6, Stainless

CVT Air Outlet Adaptor

Norma Gear Clamp

Norma Clamp

Air Outlet

Heat Shield

Heat Shield

Air Outlet

Air Outlet

Tuflok Plastic Rivet

Heat Shield

Rubber Stopper

Lever

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Hex. Nut M8, LH Threads

Hex. Flange Elastic Nut M8

Carriage Bolt M8 X 50 | DS 650 X

Bushing

Ball Joint Ass'y | Includes 55 to 56

Hex. Jam Nut M8

Shifter Rod

Screw Socket M10 X 25 | Europe

Hex. Jam Nut M8

Hex. Flange Nut M6

Torx Screw M6 X 20, Scotch Grip

Bushing

Lever Support

Spring

Shift Arm | Except Europe

Lever Trim

RH Ball Joint

Washer

Hex. Elastic Stop Nut M8

Cover OPS

Hex. Flange Screw M6 X 12
