Description

Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561434

$1.99

40

Positive Cable

710004376

$48.99

41

Battery Cable Cap

710006729

$7.20

201

Light Cable

710005780

$23.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

370

Mount Dart

293730040

$1.04

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561434

$1.99

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Multi Fonction Control | Package STD

710006229

$67.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

600

Speedometer

710006216

$339.99

605

Safety Nut (DESS Switch)

278002963

$3.28

630

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

685a

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

720

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

750

Pilot Lamp Cap

710003910

$4.29

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

850

Housing

710003006

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710006561

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

910

Push Nut

732610072

$2.19

920

Fixation Plate

710002404

$9.39

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99

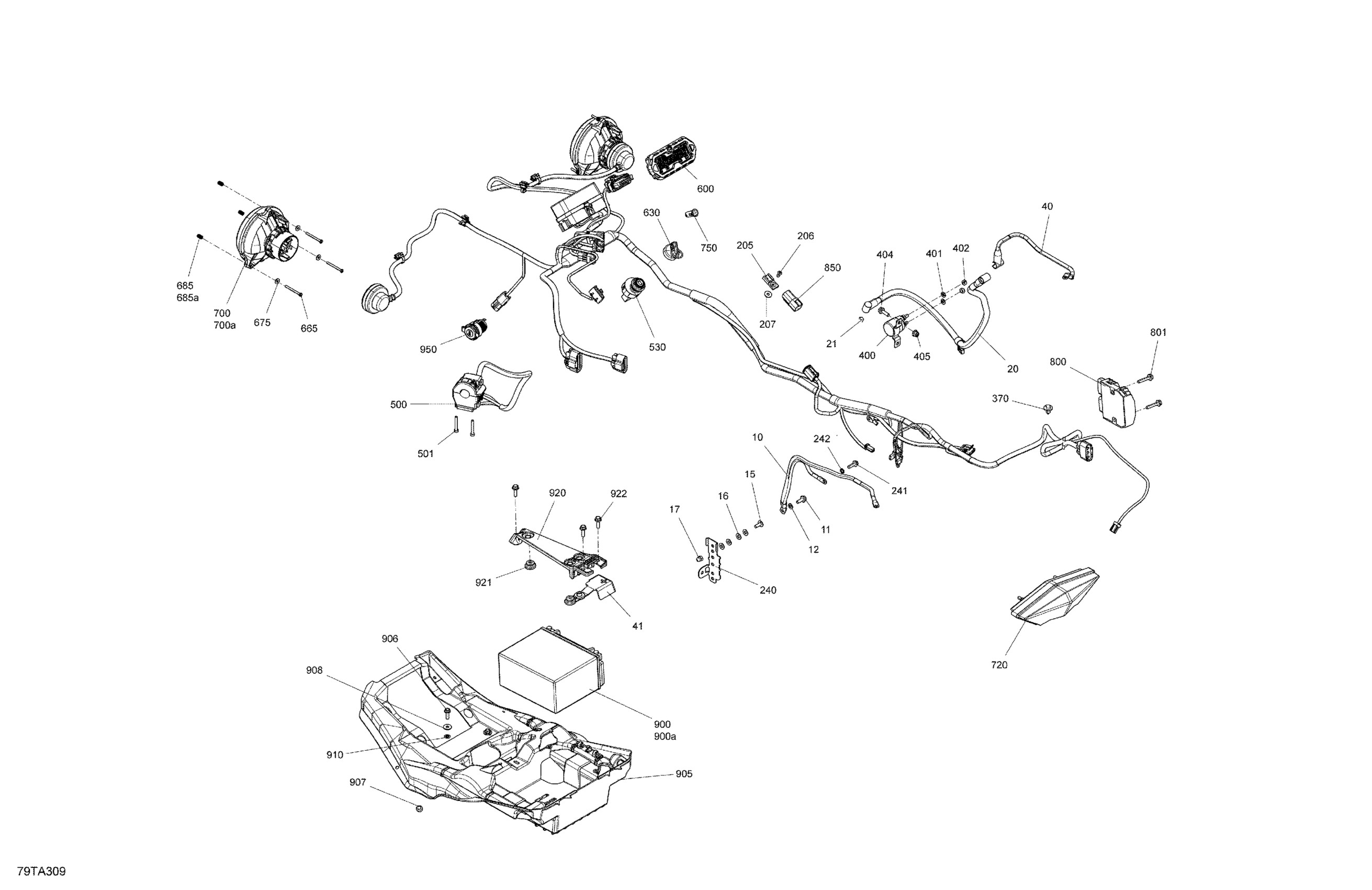

Can-Am 004 - Outlander 570 EFI - XU - International, 2021 08- Electric - System Diagram

Ground Cable

Hex. Flange Screw M6 X 16, Scotch Grip

Lock Washer Helical M6

Torx Head Screw M6 X 16

Flat Washer

Domed Nut M6

Positive Cable

Elastic Stop Nut M6

Positive Cable

Battery Cable Cap

Light Cable

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Connector Bracket

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Mount Dart

Starter Relay

Lock Washer Helical M6

Elastic Stop Nut M6

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Multi Fonction Control | Package STD

Socket Head Screw M5 X 35

Terminal Dess One-Wire | Except Model Europe

Speedometer

Safety Nut (DESS Switch)

Grey Key RFID | Except Model Europe, Except T3

Hex. Screw K40 X 45

Flat Washer

Spring

Spring

Low Beam

Bulb, 12V 35/35W

Tail Light Housing Ass'y | Includes 29 to 31

Pilot Lamp Cap

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Housing

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Support

Hexagonal Head Screw

Rubber Bumper

Stainless Steel Flat Washer

Push Nut

Fixation Plate

Stopper Rubber

Hex. Flange Screw M6 X 20

DC Outlet
