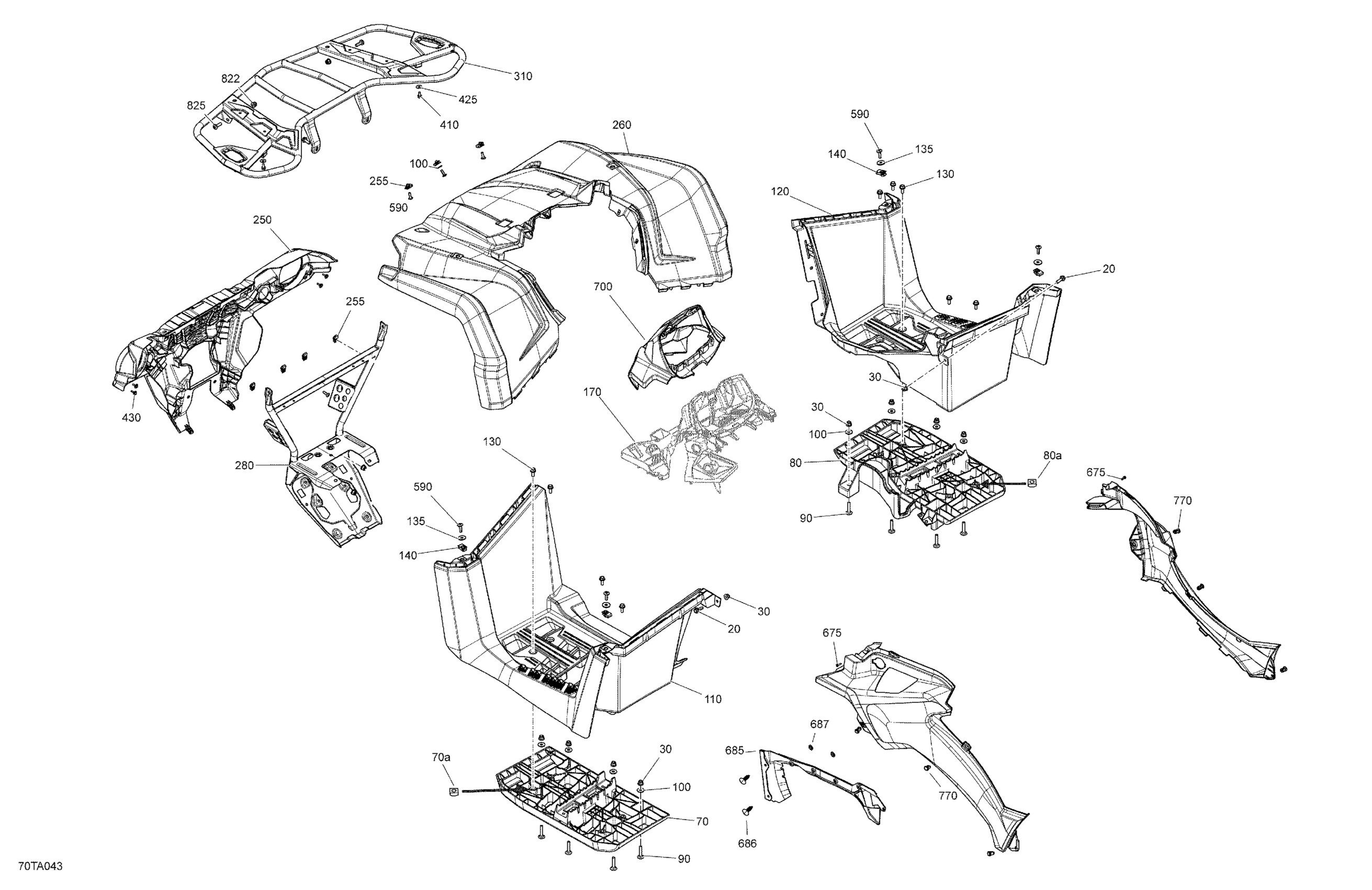

Can-Am 002 - Outlander 570 EFI - STD - International, 2021 07- Body - Front Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$1.01

Flange Elastic Nut M6

233261434

$4.44

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Step

705007040

$97.99

120

RH Step

705007039

$129.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

250

Front Facia | Model-North America, International

705009334

$119.99

255

Panel Nut M6 X 1.0

250100198

$2.11

260

Viper Red, LH Front Fender | Model Viper Red

715006845

$204.99

280

Front Frame

705017337

$264.99

310

Black, Front Luggage Rack

705006887

$285.99

410

Hex. Flange Screw M6 X 12

210261250

$1.90

425

Stainless Steel Flat Washer

234062670

$2.11

430

Screw M4 X 16

250000725

$3.49

590

Torx Screw M6 X 20

250000722

$1.68

675

Phillips Screw K40 X 16

250000723

$0.98

685

Deflector Body Panel

705014061

$43.99

686

Push Nut

732610072

$2.19

687

Black, Dart

293730006

$0.99

700

Gage Support

705007066

$44.99

770

Tuflok Plastic Rivet

293150230

$1.47

822

Elastic Flange Nut M8

233281464

$1.01

825

Pan Torx Screw M8 X 25

250000898

$2.11
