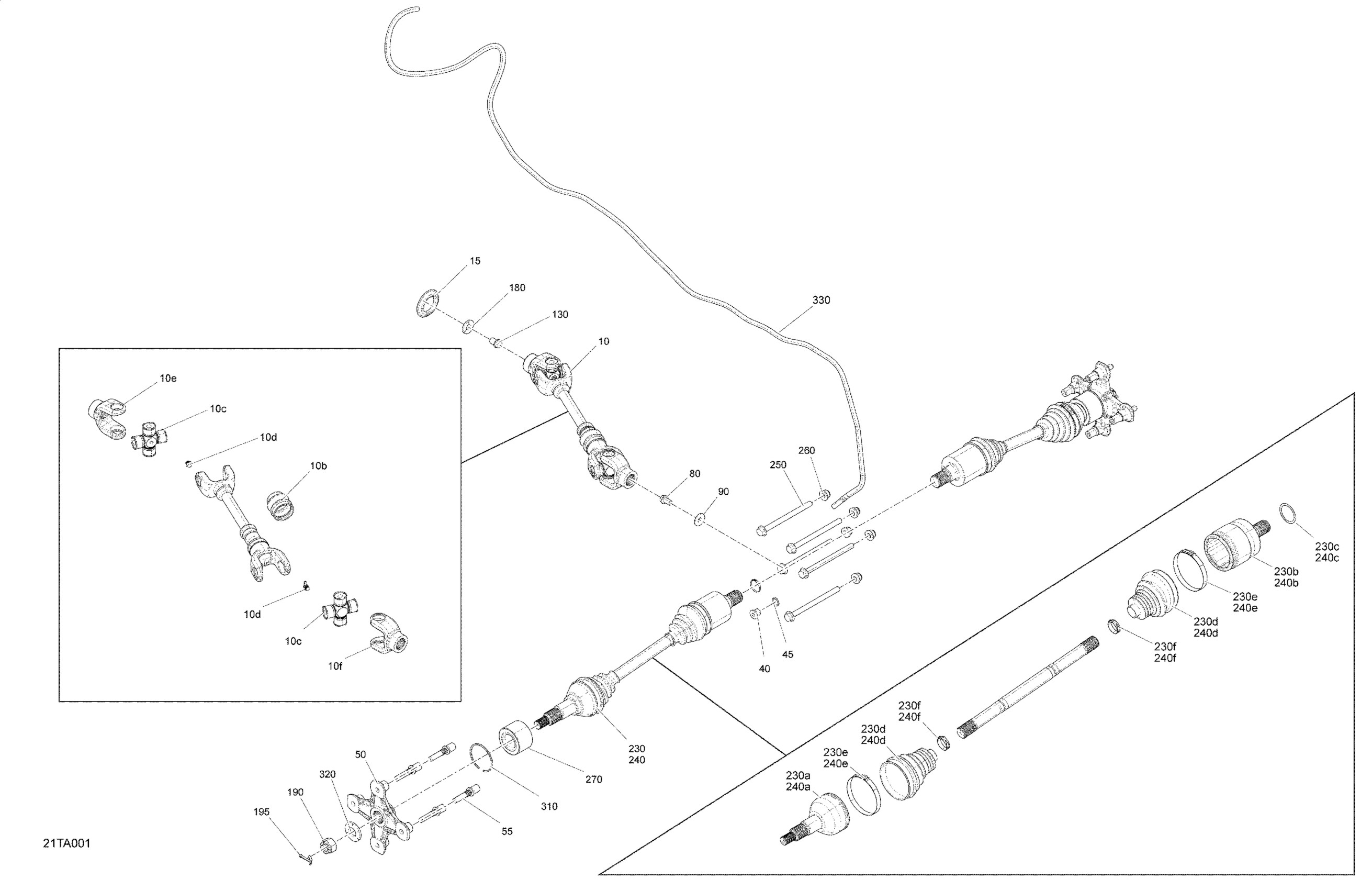

Can-Am 006 - Renegade 1000R EFI - XMR - NEO YELLOW - North America, 2021 04- Drive - Rear Section - Common Parts Diagram

Shaft Ass'y Kit | XMR

703500990

$232.99

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Yoke

715900499

$24.99

Joint | T3

715900436

$24.99

Protector

705501123

$7.55

Protector

705501123

$7.55

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub Ass'y

705501716

$105.99

Wheel Hub | Built Dec 21 2020 And Up

705503050

$104.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH CV Joint | Package XMR

705503024

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Joint Protector

705501842

$8.85

LH CV Joint | Package XMR

705503025

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Joint Protector

705501842

$8.85

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose

293830193

Unavailable
