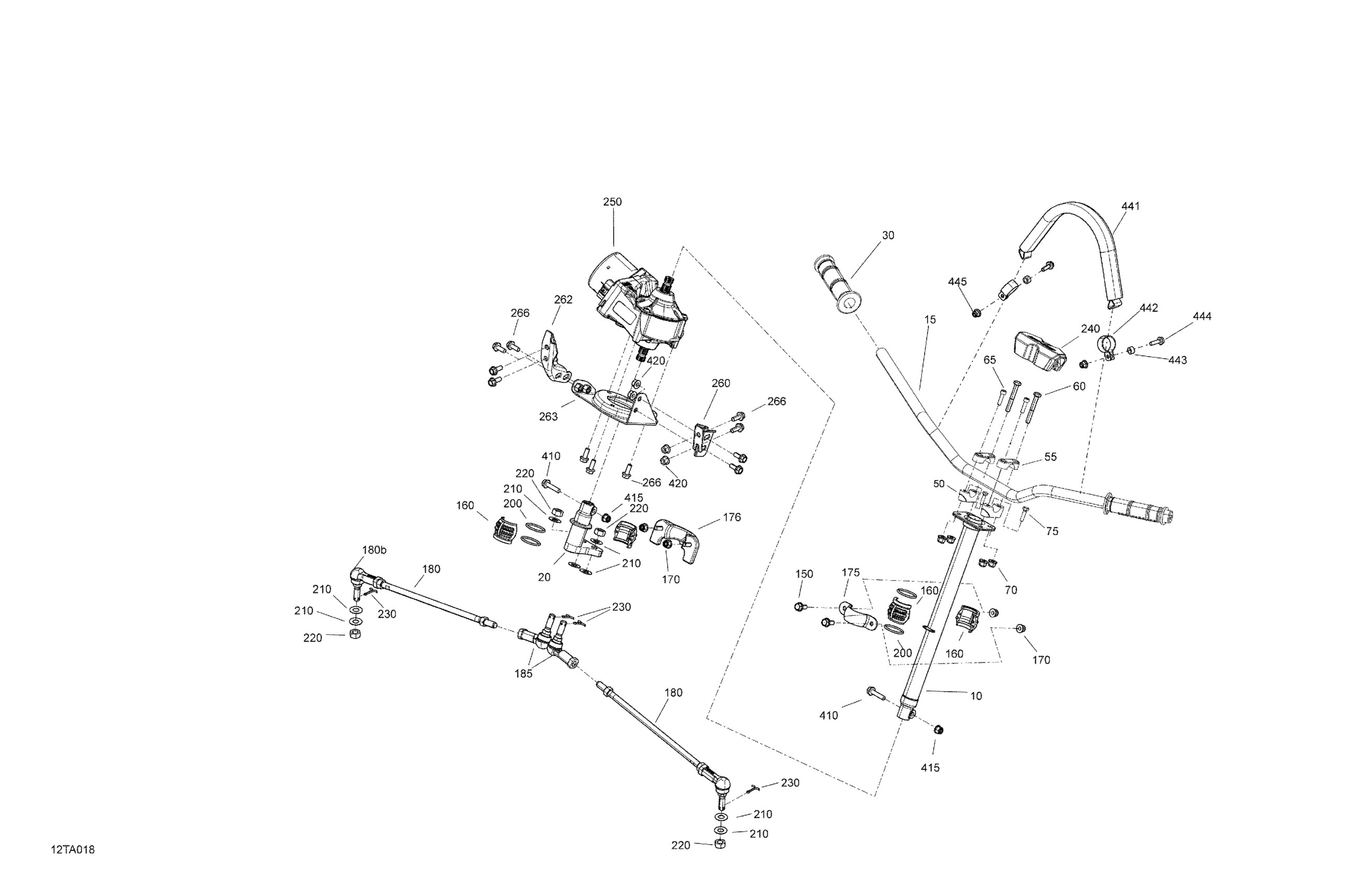

Can-Am 006 - Renegade 1000R EFI - XMR - NEO YELLOW - North America, 2021 03- Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$74.99

Anodized Handlebar | Package XTP, XXC

709402292

$63.49

Pitman Arm | Model XMR

703501161

$43.99

Handle Grip

709400493

$14.83

Lower Mounting Clamp

709402750

$25.99

Support

709400496

$22.49

Socket Head Screw M8 X 60

205086060

$4.12

Socket Screw M8 X 30

205083060

$2.96

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Screw M8 X 30

207183060

$1.58

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682534

$2.11

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

RH Ball Joint

709402302

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Steering Cover | XTP

709402328

$90.99

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut

233081436

$2.00

Strap Ass'y | Package XMR

506152115

$44.49

Collar Tube | Package XMR

709401720

$19.99

Bushing | Package XMR

506152156

$5.61

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00
