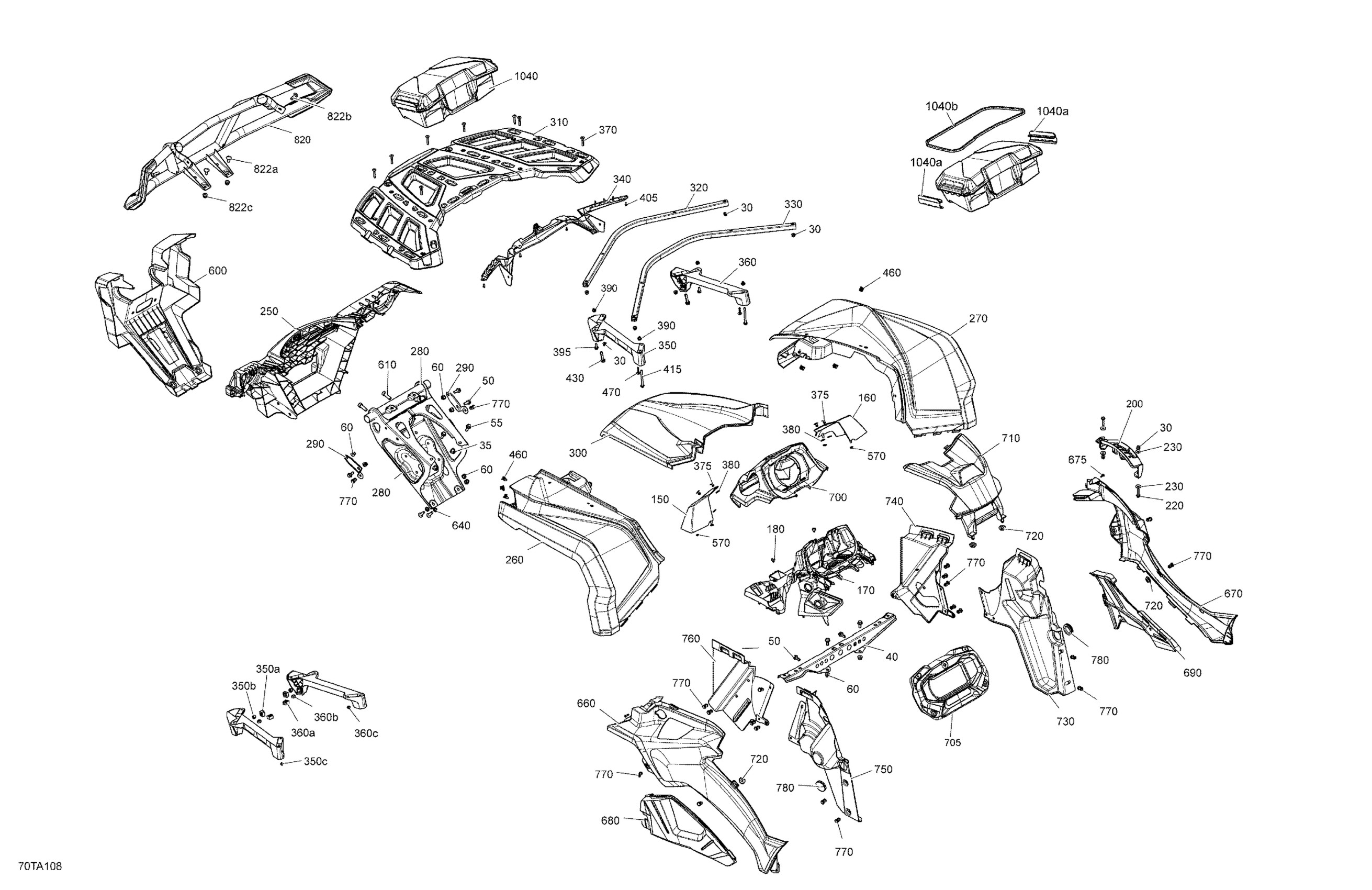

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2021 07- Body - Front Section Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M10

233201434

$2.09

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

200

Indicator | Package PRO International

715004085

$26.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

260

Pure Magnesium, LH Front Fender Kit | OUT-MAX&B-321&C/U

715006449

$409.99

270

Pure Magnesium Front RH Fender

715006071

$409.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

300

Magnesium Hood

715006092

$419.99

310

Rack Kit | Europe, Int'l

715002784

$194.99

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

430

Hex. Flange Screw M8 X 35

207683534

$2.11

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

570

Push Nut

732610072

$2.19

600

Front Guard Plate | North America, International

705006299

$51.99

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

660

Pure Magnesium, LH Lateral Panel | Pure Magnesium

705011909

$309.99

670

Pure Magnesium, RH Lateral Panel

705011910

$309.99

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector_Body Panel Kit

715007008

$28.99

690

Engine Cover

705003444

$22.99

700

Gauge Support | Includes 700 to 700a

705012572

$44.99

705

Gauge Trim

705015547

$22.49

710

Dash Kit

715006098

$30.99

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Inner Fender

705011463

$18.49

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Inner Fender

705011465

$18.49

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

820

Deep Black, Bumber Kit

715004837

$223.49

822a

Carriage Bolt, M8 X 20

207782044

$1.90

822b

Torx Screw M8 X 30

250000886

$2.11

822c

Hex. Flange Elastic Nut M8

233281434

$2.11

1040

Box Ass'y

708200408

$82.99

1040a

Clip | Outlander Max

269501945

$15.89

1040b

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99
