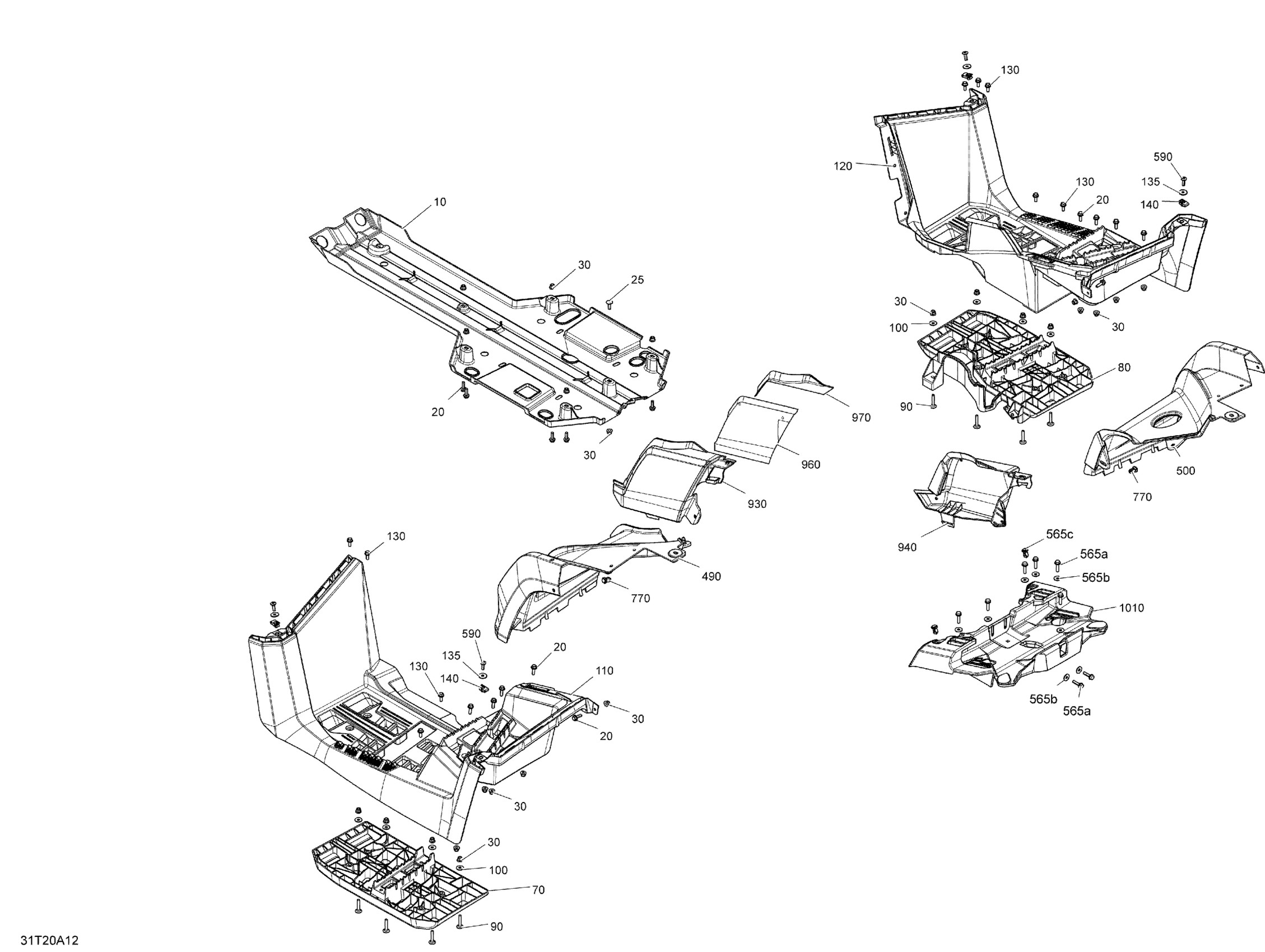

Can-Am 002 - Outlander MAX 6X6 - 650 EFI - DPS - North America, 2021 07- Body - Rear Section Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

30

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

80

RH Structural Footboard

705011542

$109.99

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footrest Max

705003525

$189.99

120

RH Footrest Max

705003521

$134.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

490

Tundra Green, LH Rear Fender Kit

715008005

$139.99

500

Tundra Green, RH Rear Fender Ass'y

705015367

$139.99

565a

Hex Flange Screw M6 X 25

250000841

$7.51

565b

Stainless Steel Flat Washer

234062670

$2.11

565c

Tuflok Plastic Rivet

293150230

$1.47

590

Torx Screw M6 X 20

250000722

$1.68

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

1010

Seat Holder

705007948

$58.99
