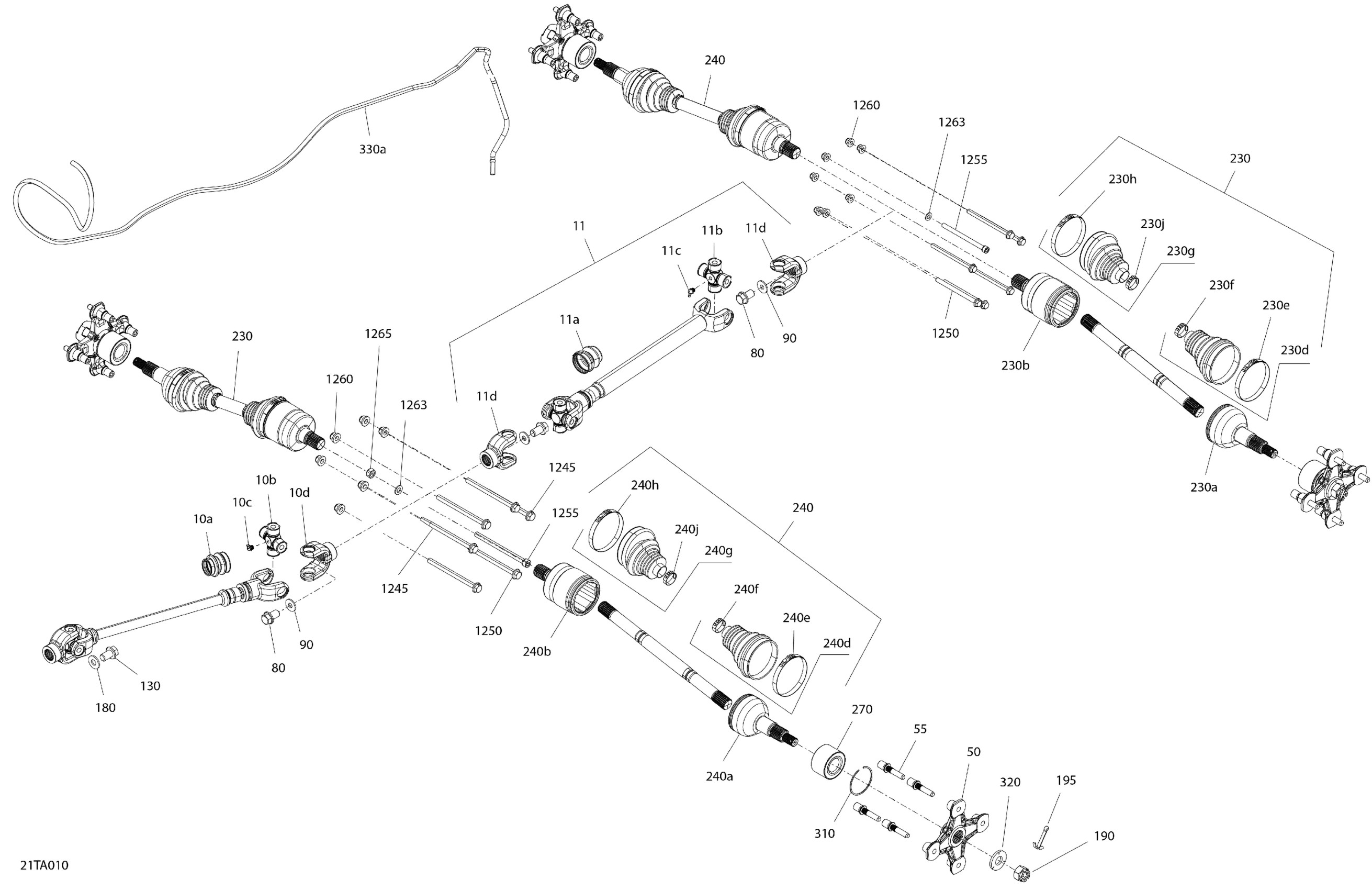

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - North America, 2021 04- Drive - Rear Section - Common Parts Diagram

#

Description
Price

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Yoke | T3

715900500

$24.99

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$412.99

11a

Rubber Boot

715900118

$14.30

11b

Universal Joint

715900326

$68.99

11c

Grease Fitting | T3

715900295

$5.24

11d

Yoke | T3

715900500

$24.99

50

Wheel Hub | Built Dec 21 2020 And Up

705503050

$104.99

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230e

Oetiker Clamp

715900282

$5.29

230f

Oetiker Clamp, Small

715900283

$5.29

230g

Boot Kit, Differential Side

705401346

$42.49

230h

Oetiker Clamp, Large

715900284

$5.29

230j

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240e

Oetiker Clamp

715900282

$5.29

240f

Oetiker Clamp, Small

715900283

$5.29

240g

Boot Kit, Differential Side

705401346

$42.49

240h

Oetiker Clamp, Large

715900284

$5.29

240j

Oetiker Clamp, Small

715900261

$5.29

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose

293830193

Unavailable

1245

Hex. Flange Screw M10x145

705502741

$8.09

1250

Hex. Flange Screw M10 X 135

250001041

$5.59

1255

Screw Socket HD M10 X 140

250001094

Unavailable

1260

Hex. Flange Elastic Nut M10

233201436

$2.11

1263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1265

Elastic Stop Nut M10

232500416

$1.90
