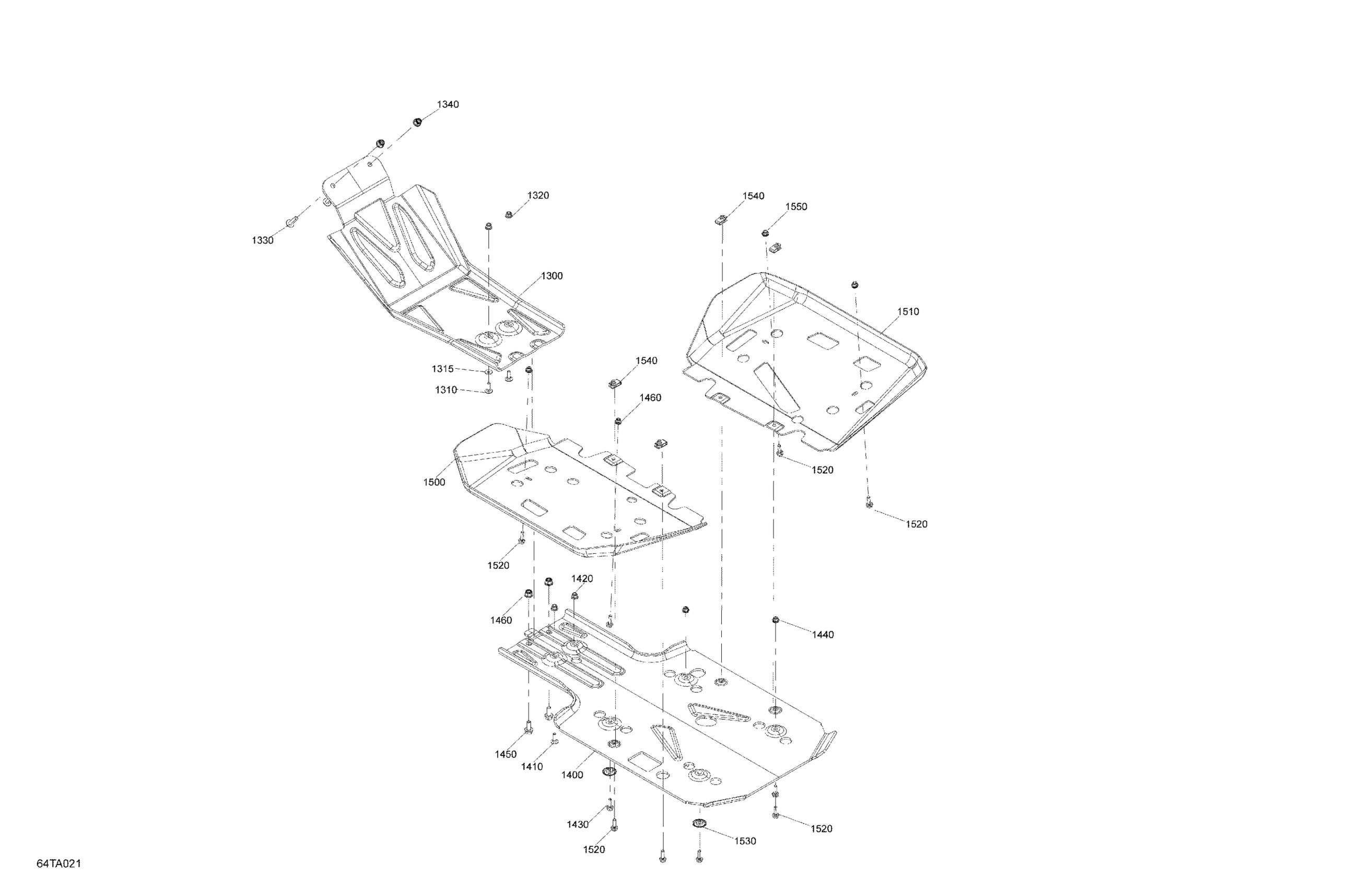

Can-Am 005 - Outlander 1000R EFI - XT_XTP_XXC - North America, 2021 07- Body - Skid Plate - XXC Diagram

Description

Price

1300

Front Skid Plate | Package Hunter

715000926

$96.49

1300b

Decal "Can-Am" | Not Shown

704904566

$10.99

1300c

Front Skid Plate | Package Hunter

715000926

$96.49

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

1300e

Flange Elastic Nut M6

233261434

$4.44

1300f

Hex Torx Truss M8 X30

250000745

$3.17

1300g

Hex. Flange Elastic Nut M8

233281434

$2.11

1310

Torx Screw M6 X 20

250000712

$2.11

1315

Stainless Steel Flat Washer

234062670

$2.11

1320

Flange Elastic Nut M6

233261434

$4.44

1330

Hex Torx Truss M8 X30

250000745

$3.17

1340

Hex. Flange Elastic Nut M8

233281434

$2.11

1400

Central Skid Plate | Package-XXC

705204031

$174.49

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

1420

Flange Elastic Nut M6

233261434

$4.44

1430

Hex. Flange Screw M6 X 20

207662054

$1.01

1440

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1450

Hex. Flange Screw M8 X 25

207682534

$2.11

1460

Hex. Flange Elastic Nut M8

233281434

$2.11

1500

LH Skid Plate | Package Hunter

705010659

$121.49

1510

RH Skid Plate | Package Hunter

705010660

$121.49

1520

Hex. Flange Screw M6 X 20

207662054

$1.01

1530

Cup | Package Hunter

705007171

$7.89

1540

Panel Nut M6 X 1.0

250100198

$2.11

1550

Insert Half Hex Body M6 x 1.0

250100199

$3.19
