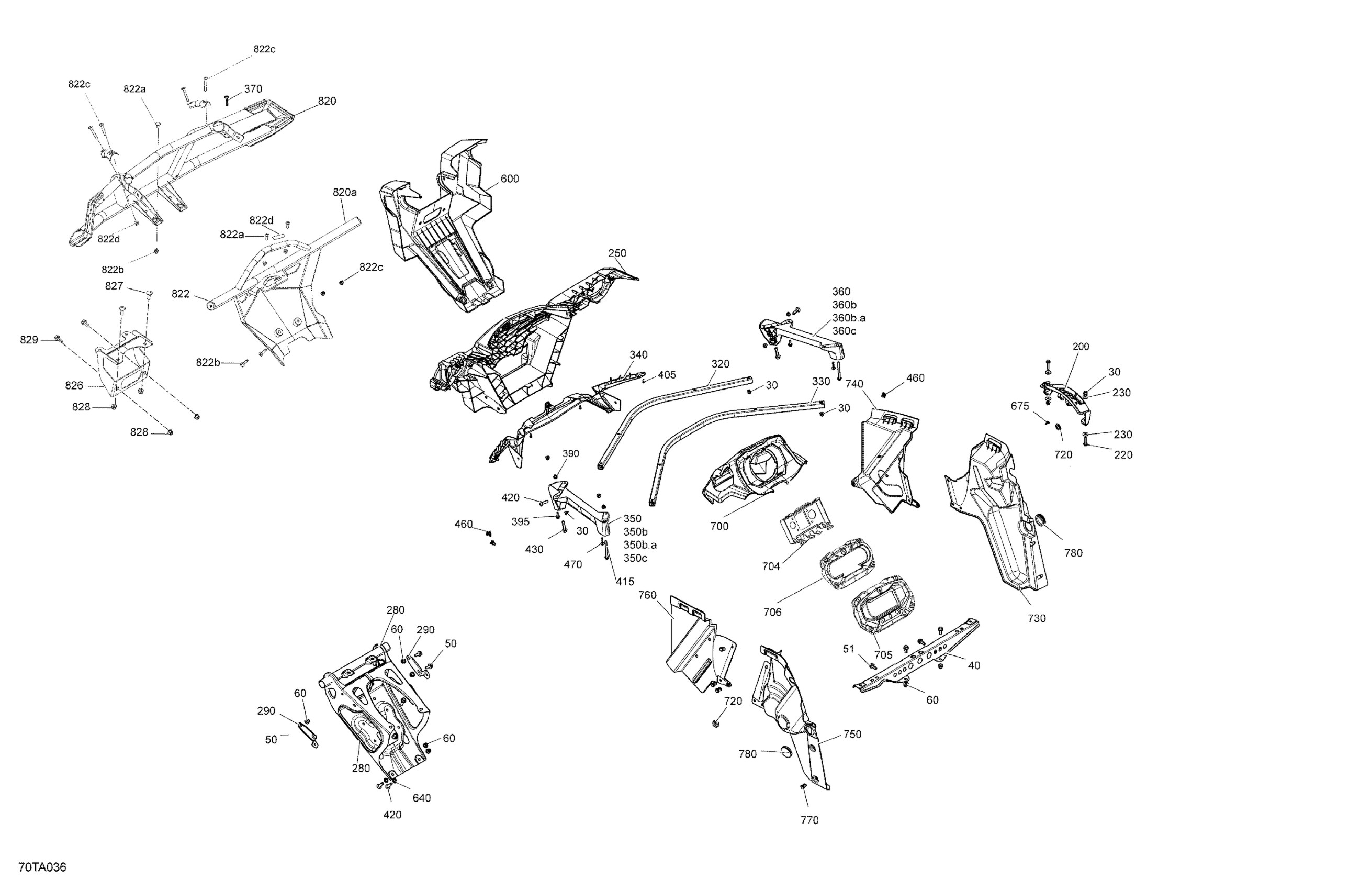

Can-Am 005 - Outlander 1000R EFI - XT_XTP_XXC - North America, 2021 07- Body - Front Section Diagram

Flange Elastic Nut M6

233261434

$4.44

Cargo Rack Center Support

705006812

$61.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Elastic Nut M8

233281434

$2.11

Indicator | Package PRO International

715004085

$26.99

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$26.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Fascia

705012822

$119.99

Front Bumper Support

705016893

$349.99

Lower Fender Support

705004565

$6.89

Sectional Bent Tube

705016640

$38.99

Bent Sectional Tube

705016092

$42.99

Lugage Rack Moulding

705004523

$24.49

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

Black, Torx Screw M6 X 35

250000646

$0.98

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Screw K40 X 10

241140060

$1.48

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

Torx Screw M8 X 30

250000886

$2.11

Hex. Flange Screw M8 X 35

207683544

$1.69

Edge Clip

517302785

$0.88

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

Front Guard Plate | North America, International

705006299

$51.99

Ring

705004497

$5.19

Phillips Screw K40 X 16

250000723

$0.98

Gauge Support

705013984

$19.99

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Interior Gauge Support

705015548

$6.19

Front Gauge Trim

705013985

$22.49

Gauge Trim

705015547

$22.49

Torx Head Screw M4 X 16

250000797

$2.09

Grommet

705003264

$4.09

RH Wheel Arch Protector

705013925

$19.04

RH Front Inner Fender

705011463

$18.49

LH Wheel Arch Protector

705013924

$19.04

LH Front Inner Fender

705011465

$18.49

Tuflok Plastic Rivet

293150230

$1.47

Rubber Cover

293250242

$6.99

Deep Black, Bumber Kit

715004837

$223.49

Front Bumper Ass'y | Model XXC

715007687

$779.99

Carriage Bolt, M8 X 20

207782044

$1.90

Torx Screw M8 X 30

250000886

$2.11

Hex. Flange Elastic Nut M8

233281434

$2.11

Assembly Kit | Model XXC

705014415

$27.99

Torx Truss M8 X 25

250000874

$2.11

Torx Truss Screw M8 X 50

250000761

$7.51

Warning Decal Bumper

704906938

Unavailable

Bumper Support

705012722

$76.99

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

Hex. Flange Elastic Nut M8

233281434

$2.11

Hex. Flange Screw M8 X 25

207682534

$2.11
