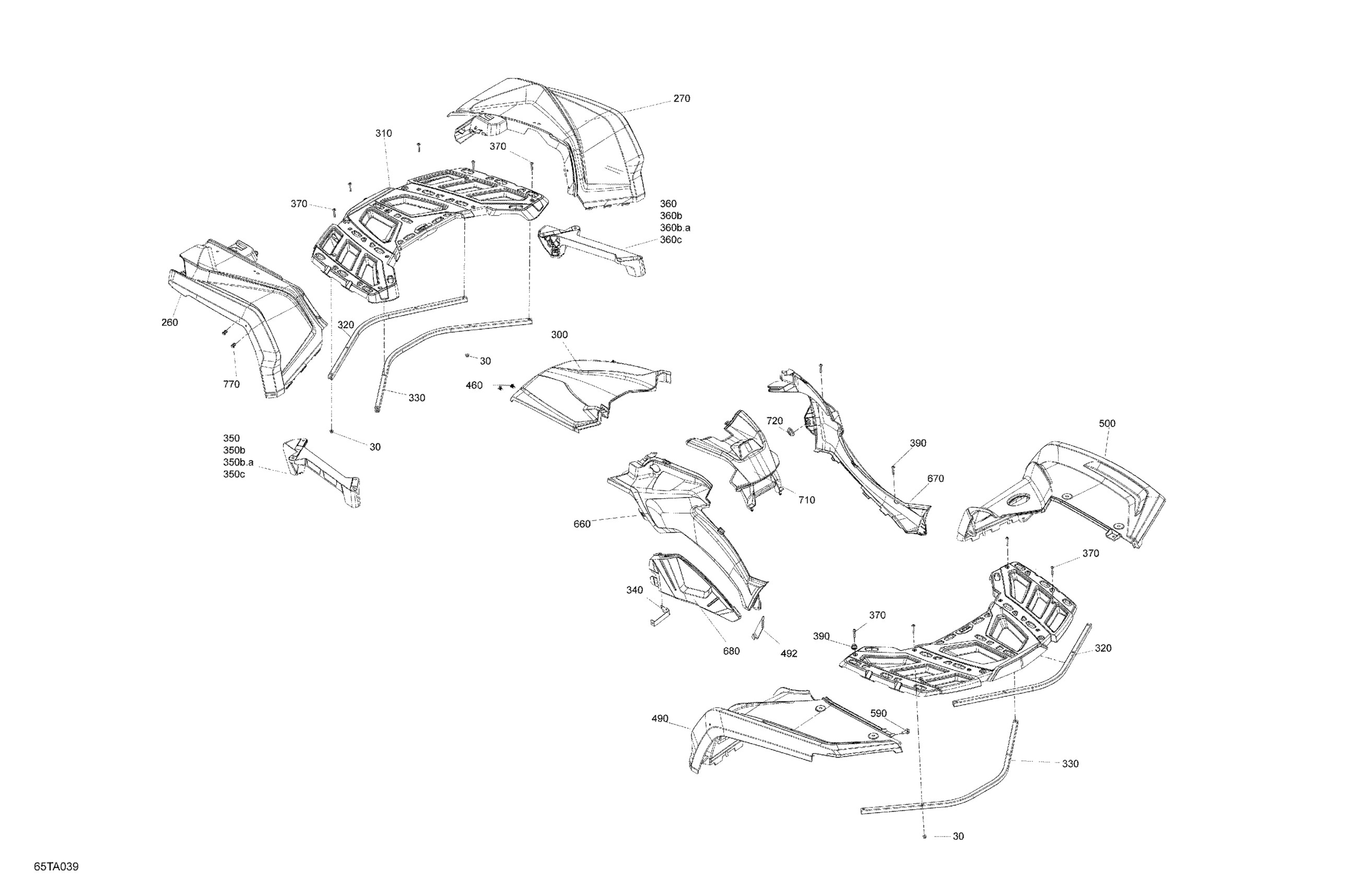

Can-Am 001 - Outlander 650 EFI - STD_DPS_XT_Mossy Oak Edition - North America, 2021 07- Body - Fender Kit Diagram

Flange Elastic Nut M6

233261434

$4.44

Squadron Green, LH Front Fender Kit | Model Squadron Green

715007852

$204.99

Camo, LH Front Fender Kit

715006922

$459.99

Boreal Green, LH Front Fender Kit | Model Boreal green

715007543

$409.99

Mineral Gray Satin, LH Front Fender

715006930

$409.99

Granite Grey, LH Front Fender Kit | Model Granite Grey

715007555

$204.99

Squadron Green, RH Front Fender Kit | Model Squadron Green

715007856

$204.99

Camo, RH Front Fender Kit | Camo

715005686

$459.99

Boreal Green, RH Front Fender Kit | Model Boreal green

715007568

$409.99

Mineral Gray Satin, RH Front Fender

715006946

$409.99

Granite Grey, RH Front Fender kit | Model Granite Grey

715007572

$204.99

Squadron Green, Hood Kit | Model Squadron Green

715007860

$189.99

Camo, Hood Kit | Camo

715005796

$819.99

Boreal Green, Hood Kit

715005799

$239.99

Timeless Black, Hood Kit

715006987

$489.99

Granit Grey, Central Hood Ass'y | Model Granite Grey

715008106

$419.99

Luggage Rack Kit

715001852

$224.99

Sectional Bent Tube

705016640

$38.99

Bent Sectional Tube

705016092

$42.99

Lugage Rack Moulding

705004523

$24.49

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

Black, Torx Screw M6 X 35

250000646

$0.98

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Edge Clip

517302785

$0.88

Granit Gray, LH Rear Fender

715007066

$139.99

Squadron Green, LH Rear Fender Kit | Model Squadron Green

715007858

$139.99

Camo, LH Rear Fender Kit | Camo

715005767

$459.99

Break Up Country, LH Rear Fender | Model Camo XT

705014391

Unavailable

Breakup Country Camo, LH Rear Fender | Model Boreal green

715007635

$409.99

Mineral Gray Satin, LH Rear Fender

715006961

$409.99

Granite Gray, LH Rear Fender | Model Granite Grey

715007639

$139.99

Heat Shield

707002457

$3.89

Squadron Green, RH Rear Fender | Model Squadron Green

705013846

$139.99

Camo, RH Rear Fender Kit | Camo

705013852

$409.99

Boreal Green, Rear Fender

705014394

$409.99

Mineral Gray Satin, RH Rear Fender

705014483

$409.99

Granite Grey, RH Rear Fender

705014396

$139.99

Torx Screw M6 X 20

250000722

$1.68

Squadron Green, LH Lateral Panel | Green Model

705009760

$74.99

Camo, LH Lateral Pannel | Camo Model

705009903

$309.99

Boreal Green, LH Panel

705013241

$309.99

Mineral Gray Satin, LH Panel Central

705014484

$309.99

Granite Grey, LH Central Body Panel | Model Granite Grey

705016111

$73.99

Squadron Green, RH Lateral Panel | Green Model

705009764

$74.99

Camo, RH Lateral Pannel | Camo Model

705009912

$309.99

Boreal Green, RH Panel

705013242

$309.99

Mineral Gray Satin, RH Panel Central

705014485

$309.99

Granite Grey, RH Central Body Panel | Model Granite Grey

705016114

$57.99

Deflector Body Panel Kit

715007294

$55.99

Dash Kit

715005837

$33.99

Grommet

705003264

$4.09

Tuflok Plastic Rivet

293150230

$1.47
