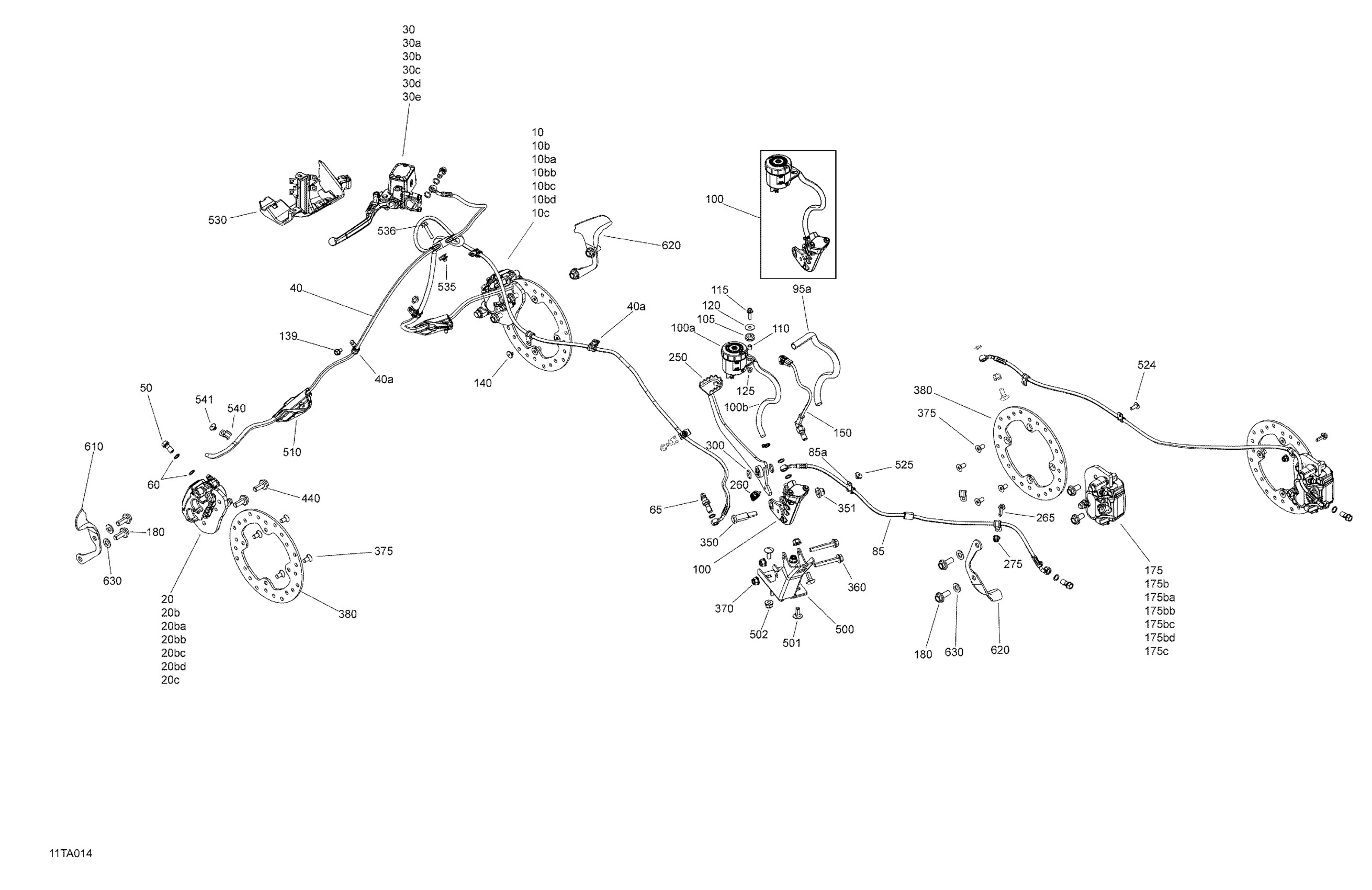

Can-Am 003 - Outlander 570 EFI - XMR - North America, 2021 03- Mechanic - Brakes Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Model XMR

703500967

$280.99

10b

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10ba

RH Organic Brake Pad Kit

705601014

$42.49

10bb

Pin Set

705601016

$9.26

10bc

Bleeding Screw

705601017

$6.35

10bd

Retaining Spring

705601018

$7.55

10c

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

20

LH Front Caliper Ass'y | Model XMR

703500968

$270.49

20b

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20ba

Pin Set

705601016

$9.26

20bb

Bleeding Screw

705601017

$6.35

20bc

Retaining Spring

705601018

$7.55

20bd

LH Organic Brake Pad Kit

705601015

$42.49

20c

LH Metallic Brake Pad Kit | Model XMR

715900248

$51.99

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30c

Hex. Flange Screw M6 X 25

250000447

$2.11

30d

Cap Set

219800096

$21.99

30e

Screw M4 X 20

415129356

$2.22

40

Front Hose

705601524

$132.49

40a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

65

Bleeding Screw

705601051

$12.16

85

RH Rear Hose

705601301

$41.49

85a

Clamp

293650256

$5.49

95a

Tubing 10 MM 1000MM Long

219704407

$2.79

100

Rear Master Cylinder | Includes 21 to 23

705601273

$269.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.79

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.90

120

Flat Washer

224060201

$1.26

125

Flange Elastic Nut M5

233251434

$2.00

139

Hex. Flange Screw M6 X 16

210261640

$2.11

140

Pop Rivet 3/16"

390406500

$0.88

150

Brake Switch

705601250

$59.49

175

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$291.49

175b

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

175ba

Pin Set

705601016

$9.26

175bb

Bleeding Screw

705601017

$6.35

175bc

Retaining Spring

705601018

$7.55

175bd

RH Organic Brake Pad Kit

705601014

$42.49

175c

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

180

Hex. Flange Screw M10 X 25

207502546

$2.11

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.00

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.77

351

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Hex. Flange Screw M8 X 55

207685544

$5.39

370

Hex. Flange Elastic Nut M8

233281414

$1.47

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

380

Disc Brake

705600999

$67.99

440

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.90

502

Hex. Flange Elastic Nut M8

233281414

$1.47

510

Hose Guard

705601893

$4.55

524

Torx Screw M6 X 16

250000755

$0.87

525

Pop Rivet 3/16"

390402400

$0.35

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.11

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

540

Open Clamp

518321570

$7.69

541

Pop Rivet 3/16"

390402300

$0.75

610

LH Deflector

705601214

$24.99

620

RH Deflector

705601215

$24.99

630

Flat Washer 10 mm

234001410

$1.26
