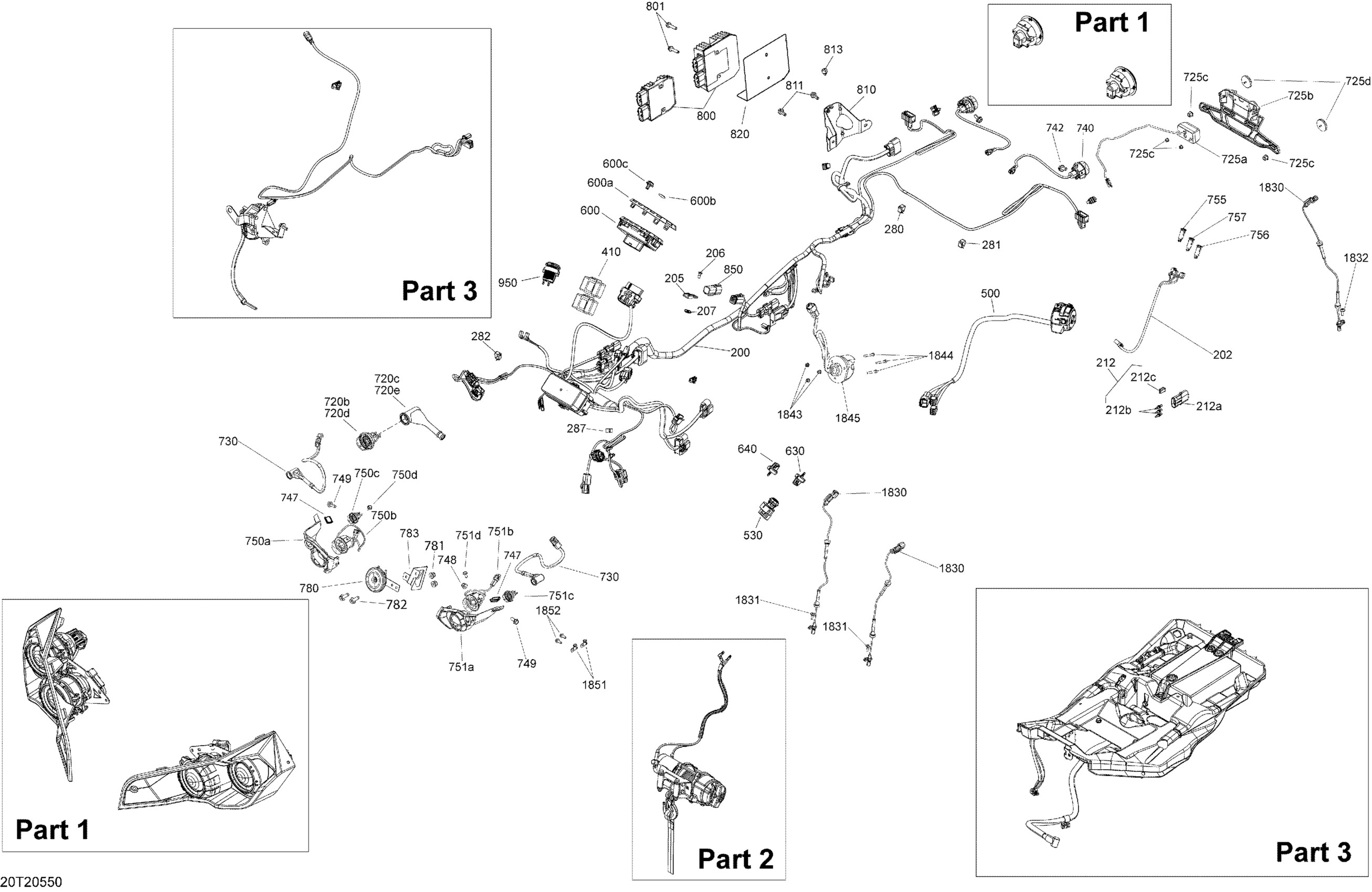

Can-Am 002 - Renegade T 1000 EFI - T Regulation, 2020 10- Electrical System - Main Section Diagram

#

Description
Price

200

Main Wiring Harness

710006713

$1,009.99

202

Indicator Light Cable

710005840

$19.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

282

Clip

414227300

$1.67

287

Clip

414227300

$1.67

410

Flasher Unit

710003239

$78.49

500

LH Multi Fonction Control

710006211

$174.99

530

Ignition Switch

710008400

$78.49

600

Speedometer

710006216

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600b

BRP Logo13 mm

704904615

$13.49

600c

Button

715900265

$13.71

630

Grey, Electronic Key

710002183

$63.49

640

Black, Electronic Key

710000817

$63.49

720b

Day Light | Europe

710001726

$35.99

720c

Cap Protector | Model-Europe

710003269

$12.11

720d

Day Light | Europe

710001726

$35.99

720e

Cap Protector | Model-Europe

710003269

$12.11

725a

License Plate Light | Europe

710005563

$126.99

725b

Plate Support | Europe

708300553

$24.49

725c

Flange Elastic Nut M5

233251434

$2.00

725d

Red Reflector

705011221

$14.49

730

Position Light Harness

710005676

$15.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

747

Clip

414479100

$1.90

748

Hex. Flange Elastic Nut M8

233281414

$1.47

749

Hex. Flange Screw M8 X 20

207682044

$1.15

750a

RH Flasher Support

710005900

$8.99

750b

Flasher | Europe

710002964

$35.99

750c

Day Light | Europe

710001726

$35.99

750d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

751a

LH Flasher Support

710005899

$8.99

751b

Flasher | Europe

710002964

$35.99

751c

Day Light | Europe

710001726

$35.99

751d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 16

207661644

$0.74

783

Horn Support

710006112

$6.95

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

810

Rectifier Support

710002587

$15.99

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

813

Rubber Bumper

293830005

$8.09

820

Deflector

710006746

$53.99

850

Housing

710003006

$8.79

950

DC Outlet

710001248

$37.99

1830

Speed Sensor

710006981

$83.99

1831

Torx Screw K50 X 16

250000720

$1.69

1832

Torx Truss Screw M6 X 16

250000721

$1.69

1843

Flange Elastic Nut M5

233251434

$2.00

1844

Socket Head Screw M5 X 35

205053588

$1.90

1845

Trailer Harness

710005846

$229.99

1851

Clamp

293650256

$5.49

1852

Hex. Flange Screw M6 X 16

210261640

$2.11
