Description

Price

10

Central Skid Plate | Package-XXC

705204031

$174.49

15

Skid Plate | XXC

705007820

$20.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

26

Torx Screw M6 X 20

250000712

$2.11

27

Stainless Steel Flat Washer

234062670

$2.11

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

37

Hex. Flange Screw M8 X 25

207682534

$2.11

40

Winch Support

705013102

$244.99

40a

Bumper Support

705003505

$39.99

60

Hex. Flange Elastic Nut M8

233281434

$2.11

65

Insert Half Hex Body M6 x 1.0

250100199

$3.19

67

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

145

Oval Washer

705000321

$5.61

200

Lever Indicator

705003838

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Front Facia

705003948

$55.99

280

Front Bumper

705011635

$280.99

300

Dashboard

705003556

$46.99

315

Bracket

705003599

$24.49

320

Front Bent Sectional Tube

705016094

$104.99

325

Support

705005381

$24.99

330

Bent Sectional Tube

705016093

$104.99

370

Hex. Flange Screw M6 X 35

207663544

$0.90

390

Insert

293450275

$12.99

400

Torx Screw M6 X 25

250000758

$2.11

410

Fuse Holder

710002482

$8.99

415

Pop Rivet 3/16"

390402400

$0.35

420

Hex. Flange Screw M8 X 25

207682534

$2.11

430

Hex. Flange Screw M6 X 45

207664544

$1.46

450

Hex. Flange Screw M6 X 16

207661644

$0.74

460

Insert Half Hex Body M6 x 1.0

250100199

$3.19

480

LH Grille

705008137

$20.99

485

RH Grille

705008138

$20.99

505

Torx Screw K50 X 16

250000720

$1.69

515

Oblong Grommet

705003668

$5.79

600

Front Bumper Plate

705004850

$19.99

620

Hex. Flange Screw M8 X 20

207682044

$1.15

650

Square Nut M6

232862412

$1.49

665

Torx Screw M6 X 12

250000454

$4.44

675

Torx Screw M6 X 16

250000755

$0.87

710

Cap

705002353

$15.49

720

Grommet

705003264

$4.09

740

RH Front Wheel Arch Protector

705017922

$26.99

750

LH Front Wheel Arch Protector

705017926

$26.99

770

Tuflok Plastic Rivet

293150230

$1.47

930

Torx Screw M6 X 20

250000712

$2.11

940

Mudguard Kit | Includes 940 to 940f5

705012695

$259.49

940a

LH Front Mudguard

705012696

$64.49

940b

RH Front Mudguard

705012697

$66.49

940e

Torx Screw M6 X 20

250000722

$1.68

940f

Flange Elastic Nut M6

233261434

$4.44

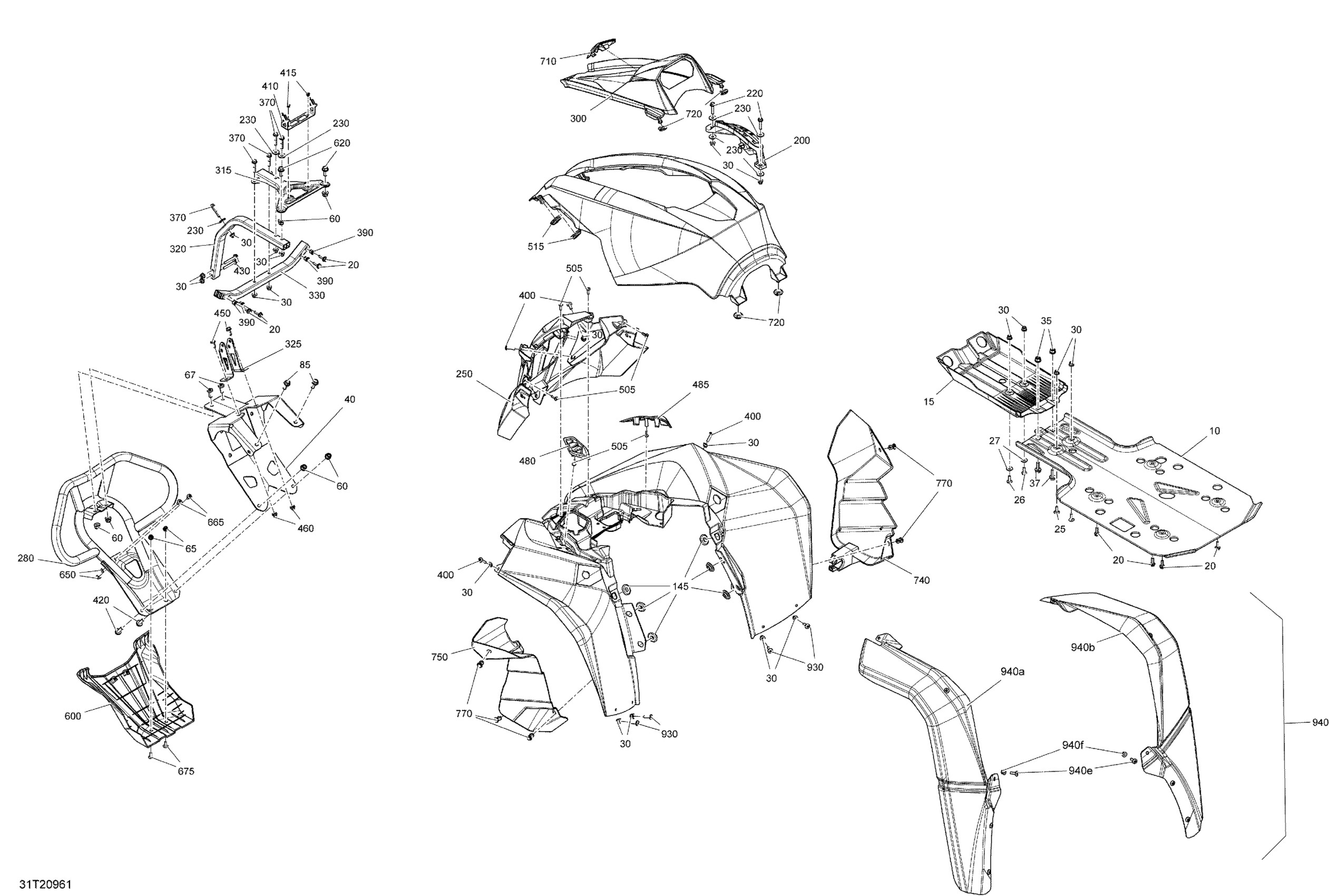

Can-Am 002 - Renegade T 1000 EFI - T Regulation, 2020 09- Body - Front Section - Carbon Black Diagram

Central Skid Plate | Package-XXC

Skid Plate | XXC

Hex. Flange Screw M6 X 20

Carriage Bolt M6 X 20 | DS 650 X

Torx Screw M6 X 20

Stainless Steel Flat Washer

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 25

Winch Support

Bumper Support

Hex. Flange Elastic Nut M8

Insert Half Hex Body M6 x 1.0

Torx Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

Oval Washer

Lever Indicator

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Flat Washer

Front Facia

Front Bumper

Dashboard

Bracket

Front Bent Sectional Tube

Support

Bent Sectional Tube

Hex. Flange Screw M6 X 35

Insert

Torx Screw M6 X 25

Fuse Holder

Pop Rivet 3/16"

Hex. Flange Screw M8 X 25

Hex. Flange Screw M6 X 45

Hex. Flange Screw M6 X 16

Insert Half Hex Body M6 x 1.0

LH Grille

RH Grille

Torx Screw K50 X 16

Oblong Grommet

Front Bumper Plate

Hex. Flange Screw M8 X 20

Square Nut M6

Torx Screw M6 X 12

Torx Screw M6 X 16

Cap

Grommet

RH Front Wheel Arch Protector

LH Front Wheel Arch Protector

Tuflok Plastic Rivet

Torx Screw M6 X 20

Mudguard Kit | Includes 940 to 940f5

LH Front Mudguard

RH Front Mudguard

Torx Screw M6 X 20

Flange Elastic Nut M6
