Description

Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000538

$88.99

6

Bumper Rubber

708000760

$10.49

7

Latch, Black

708000144

$11.99

8

Hex. Screw M6 X 110

230061044

$1.48

9

Spring

708000369

$9.19

10

Push Nut

732610072

$2.19

11

Seat Reinforcement

708000629

$33.99

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

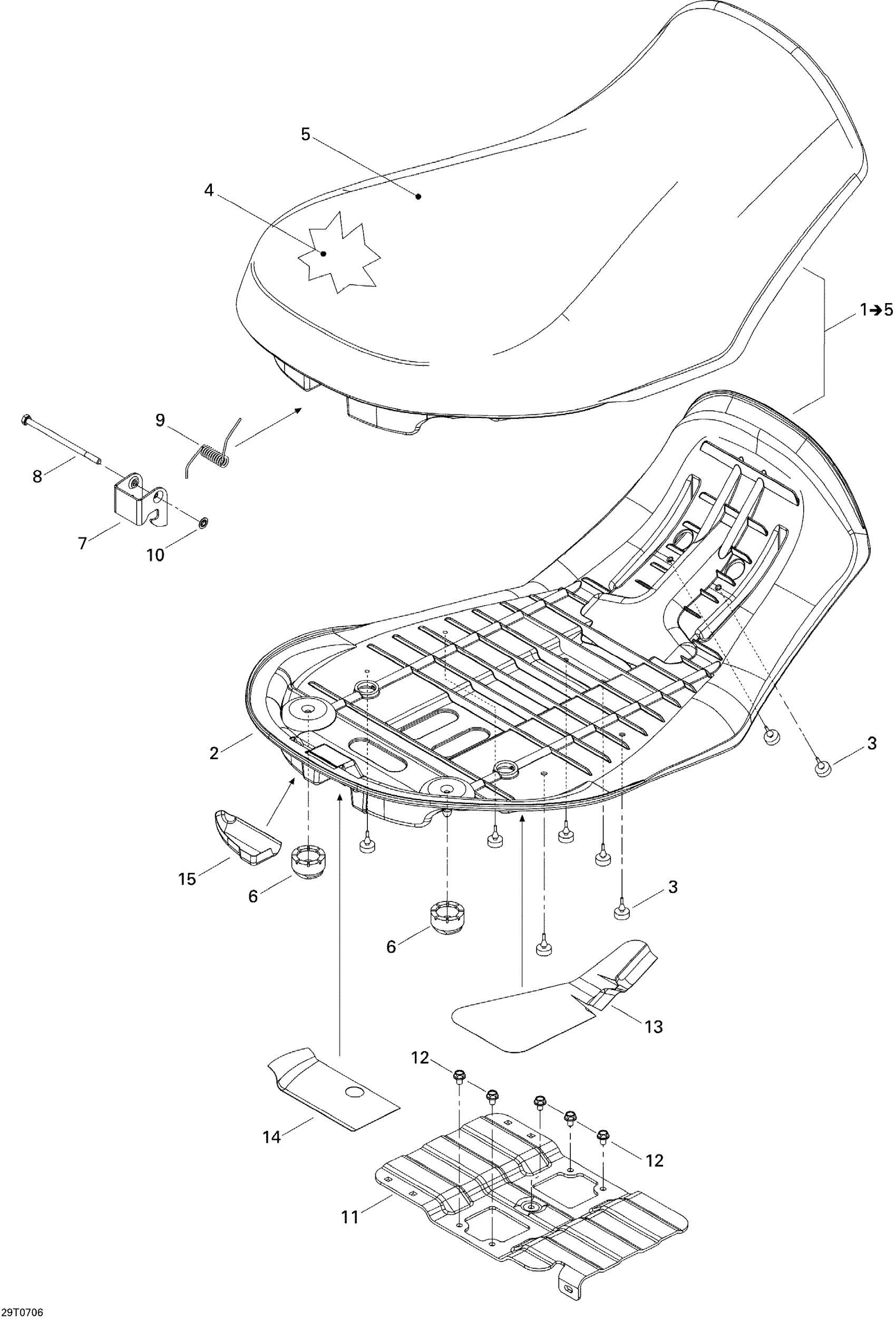

Can-Am Outlander 500 STD 4 X 4, 2007 09- Seat Diagram

Seat Assembly | Includes 1 to 6

Not Available As Spare Part - Friction Washer

Rubber Stopper

Not Available As Spare Part - Friction Washer

Seat Cover

Bumper Rubber

Latch, Black

Hex. Screw M6 X 110

Spring

Push Nut

Seat Reinforcement

Hex. Flange Screw M6 X 12

REFLECTING SHEET - Call your local BRP dealership

REFLECTING SHEET - Call your local BRP dealership

HEAT SHIELD - Call your local BRP dealership
