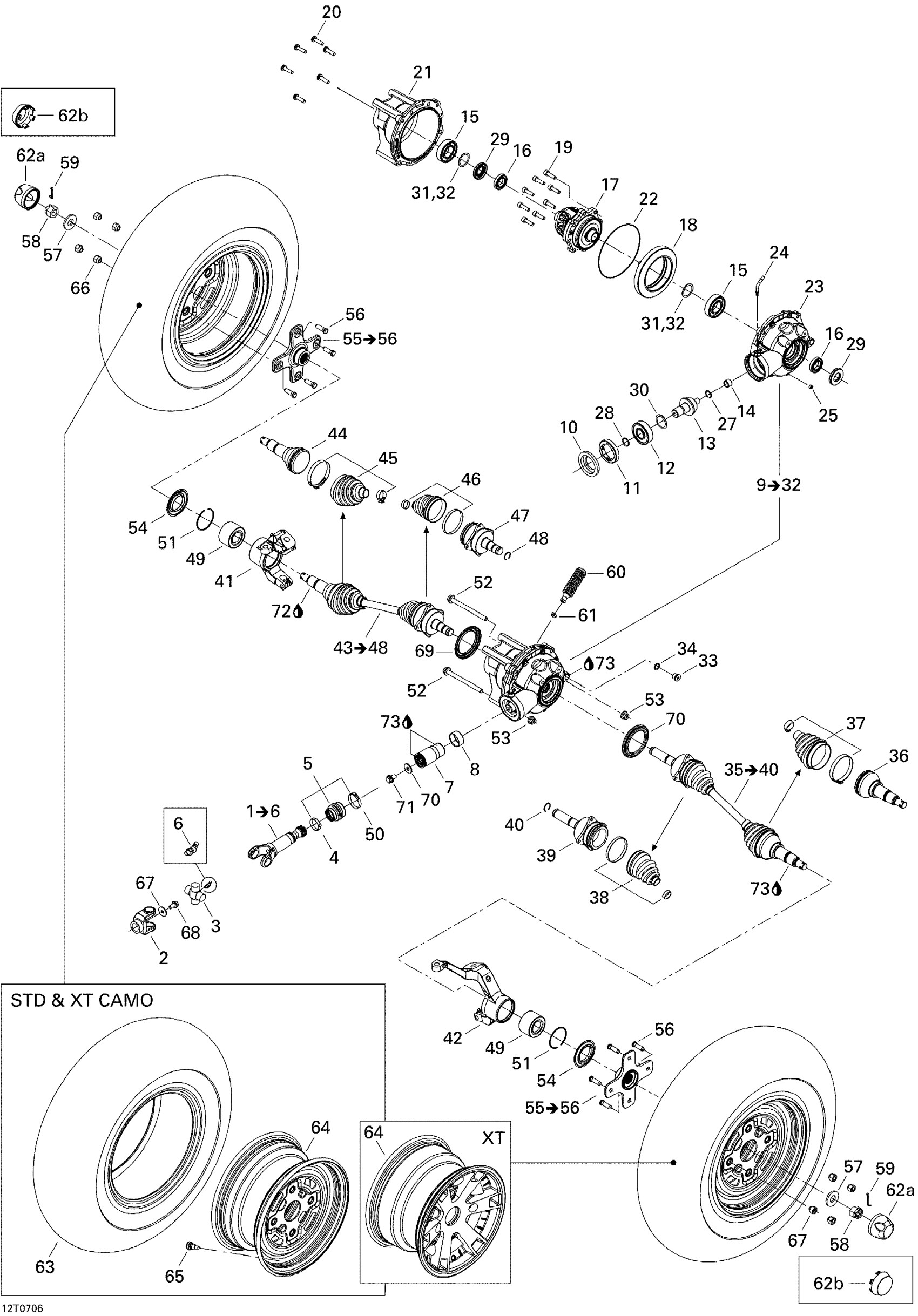

Can-Am Outlander 500 STD 4 X 4, 2007 07- Drive System, Front STD Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$270.49

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Collar | 4X4

705400148

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$114.99

8

Wear Ring | 4X4

705400036

$26.49

9

Front Differential | Includes 8 to 31

703500907

$1,579.99

10

Oil Seal | 4X4

705401481

$19.49

11

Nut | 4X4

705401603

$35.99

12

Ball Bearing | 4X4

705500260

$31.99

13

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

14

Needle Bearing | 4X4

705500261

$19.99

15

Ball Bearing | 4X4

705401606

$51.99

16

Ball Bearing | 4X4

293350044

$31.99

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

18

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

20

Screw | 4X4

705401601

$10.49

21

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

22

Seal | 4X4

705500265

$18.76

23

Front Cover

705400646

Unavailable

24

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

25

Drain Plug | 4X4

705500894

$11.49

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

28

O-Ring | 4X4

705500267

$7.65

29

Gasket | 4X4

705401618

$18.49

30

Pinion Gear Shim 1.67 mm

705502061

$18.99

31

Shim | 4X4

705401604

$57.99

32

Shim | 4X4

705401604

$57.99

33

Fill Level Plug | 4X4

705500504

$10.01

34

Copper Washer | 4X4

705500506

$0.45

35

RH Half Shaft | Includes 34 to 39

705401579

$243.99

36

CV Joint

705500560

Unavailable

37

Wheel Boot Kit

705400511

$42.49

38

Differential Boot Kit

705400512

$42.49

39

RH Plunging Joint

705400513

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH Knuckle

705400816

$206.49

42

RH Knuckle

705400818

$206.49

43

LH Half Shaft | Includes 42 to 47

705401578

$243.99

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$42.49

46

Differential Boot Kit

705400512

$42.49

47

LH Plunging Joint

705400514

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$52.99

50

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

51

Circlip

293370019

$4.68

52

Hex. Flange Screw M10 X 125

230602546

$7.41

53

Hex. Flange Elastic Nut M10

233201436

$2.11

54

Wear Sleeve | 4X4

705501121

$7.90

55

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

56

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

57

Conical Spring Washer M18

250200171

$7.65

58

Hex. Flange Castellated Nut M18

232291413

$7.98

59

Cotter Pin

250400036

$2.11

60

Rubber Bellow | 4X4

705400552

$6.14

61

Oetiker Clamp

293650042

$3.09

62a

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

62b

Not Available As Spare Part - Friction Washer

Unavailable

63

Front Tire | Outlander XT

705400213

Unavailable

64

RIM_12 INCH X 6 - Call your local BRP dealership | Outlander STD & XT

705400355

Unavailable

64

FRONT RIM - Call your local BRP dealership | Outlander STD & XT (Camo)

705400243

Unavailable

65

Rim Valve With Cap

705400193

$8.69

66

Steel Wheel Nut

250100042

$3.98

67

Washer

211200041

$3.17

68

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

69

Wear Sleeve

705400780

$7.90

70

Flat Washer M10 | 4X4

250200014

$1.49

71

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

72

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

73

Synthetic Grease, 400 G

293550010

Unavailable
