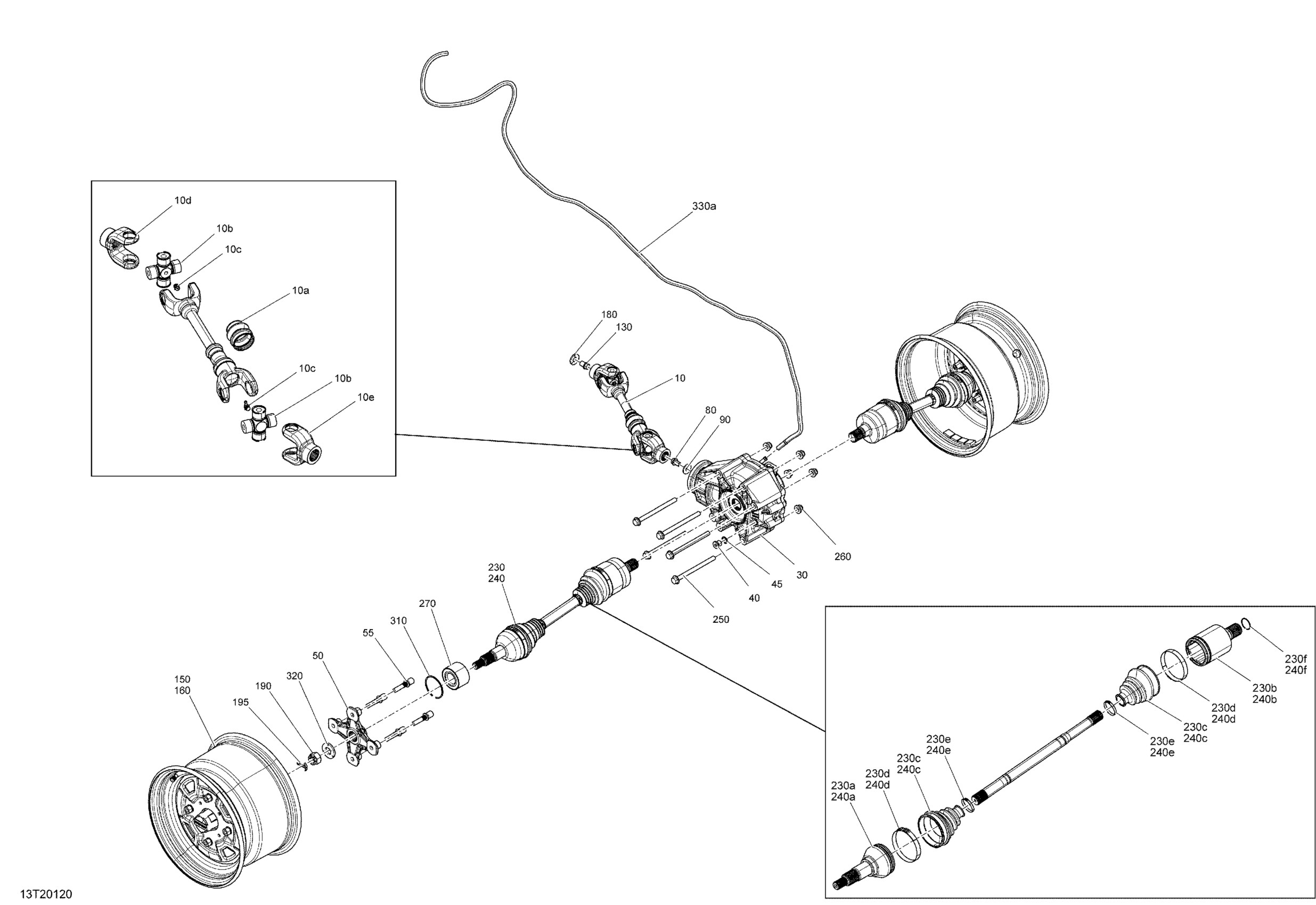

Can-Am 004 - Outlander T MAX 450 EFI - DPS - T Regulation, 2020 08- Rear Drive - Common Parts Diagram

Axle Drive | Includes 10 to 10e

705502726

$264.99

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Yoke | T3

715900500

$24.99

Yoke

715900499

$24.99

Final Drive Unit

705502546

$1,144.99

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$243.99

CV Joint

705501776

$259.49

Plunging Joint

715900604

$110.99

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Circlip

705501781

$6.50

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Circlip

705501781

$6.50

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
