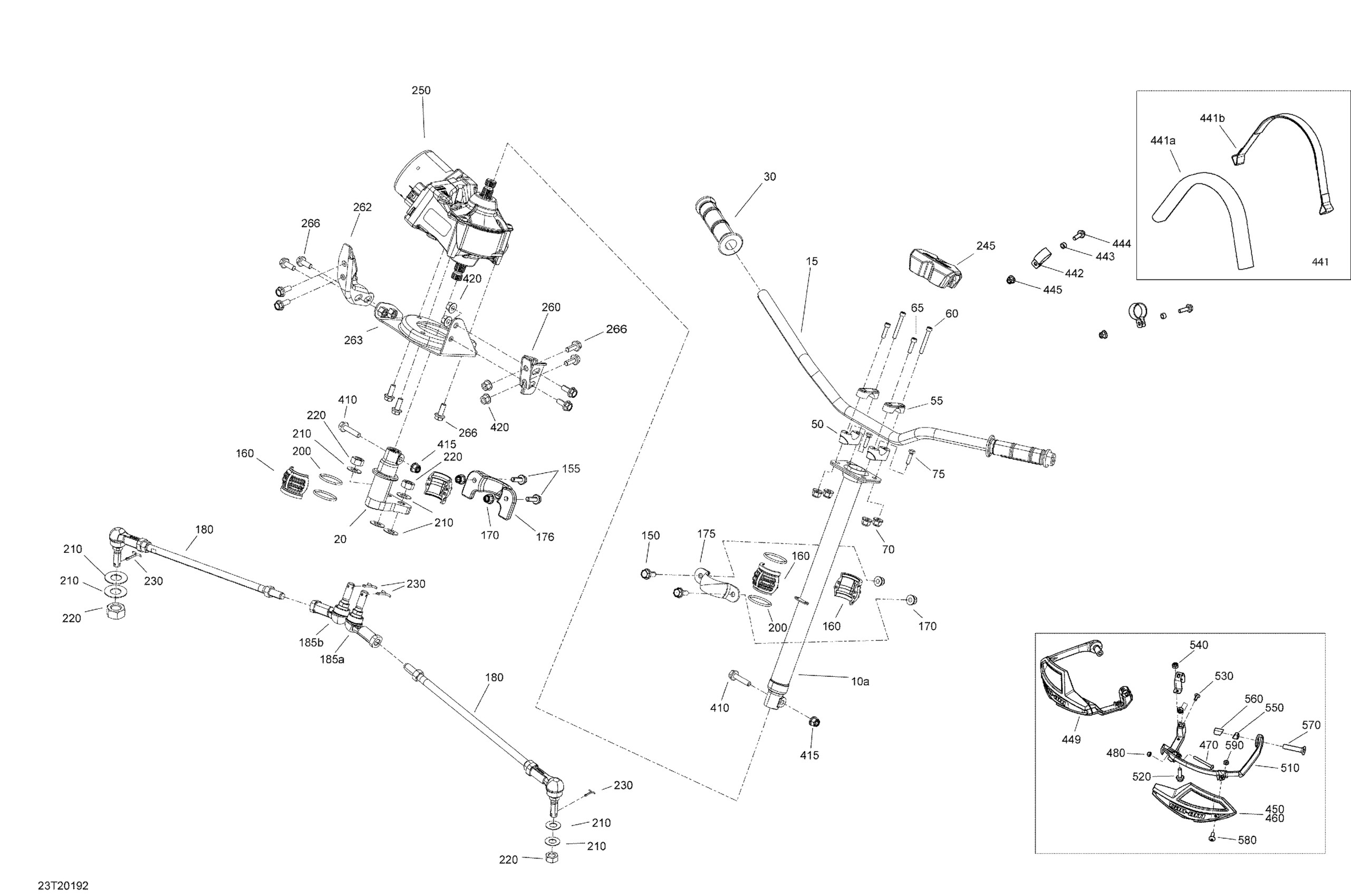

Can-Am 006 - Renegade 1000R EFI - XMR - International - Non-European Communities, 2020 07- Steering Diagram

Main Tube Kit | Model With DPS

703501108

$74.99

Manta Green, Handle Bar | Model-REN XXC Digital Camo

709401530

$110.99

Aluminum Handle Bar

709400513

$63.49

Platinum Silver Satin, Handlebar | Model Timeless Black

709402361

$110.99

Pitman Arm | Model XMR

703501161

$43.99

Handle Grip

709400493

$14.83

Lower Mounting Clamp

709402750

$25.99

Support

709400496

$22.49

Socket Head Screw M8 X 60

205086060

$4.12

Socket Screw M8 X 30

205083060

$2.96

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Screw M8 X 30

207183060

$1.58

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682544

$1.35

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Steering Cover | XTP

709402328

$90.99

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 35

250000986

$2.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut M8

233081416

$1.15

Strap Ass'y | Package XMR

506152115

$44.49

Strap Ass'y | Package XMR

506152115

$44.49

Strap Ass'y | Package XMR

506152115

$44.49

Collar Tube | Package XMR

709401720

$19.99

Bushing | Package XMR

506152156

$5.61

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Deflector Kit | Package XXC Digital Camo

715003812

$34.99

Deep Black RH Air Deflector | Camo Model

709401303

$35.99

Manta Green, RH Deflector | Package-XMR 1000 Digital Camo

709401622

$35.99

Deep Black LH Air Deflector | Camo Model

709401304

$35.99

Manta Green, LH Deflector | Package-XMR 1000 Digital Camo

709401623

$34.99

Socket Head Screw M4 X 40

205444056

$2.11

Elastic Stop Nut M4

232541414

$0.58

Air Deflector Support Kit | X

715001378

$138.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Elastic Stop Nut M6

232561600

$1.15

Small Bracket | DS 650 X

709400161

$21.99

Large Bracket | DS 650 X

709400162

$20.99

Socket Head Screw | X

205384034

$6.49

Torx Screw M5 X 14

250000742

$1.47

Hex. Elastic Nut M5 | X

232551600

$1.15
