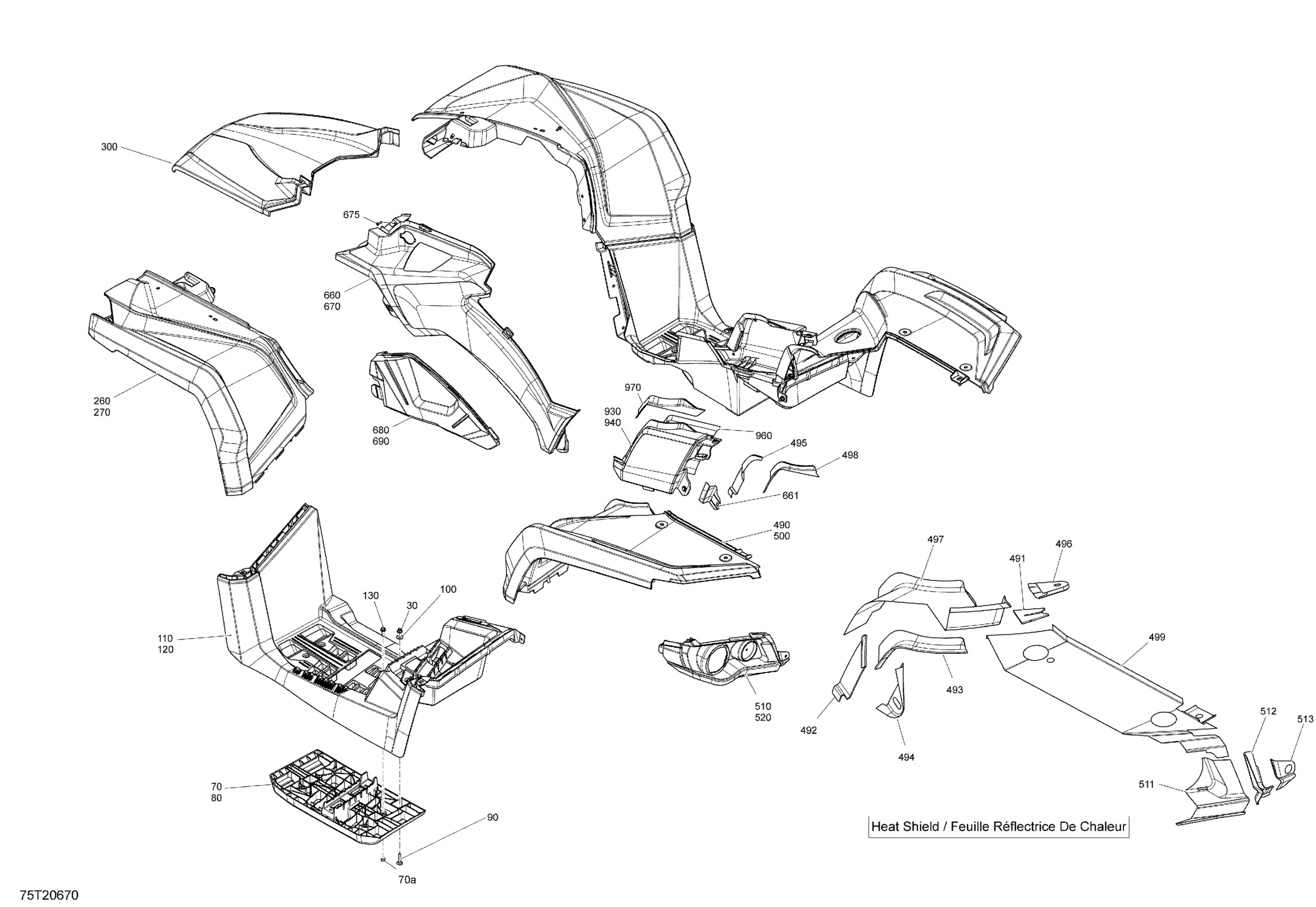

Can-Am 010 - Outlander MAX 650 EFI - XT - International - Non-European Communities, 2020 09- Body - Fenders And Lateral Panels - XT - Mineral Gray Satin Diagram

Description

Price

Flange Elastic Nut M6

233261434

$4.44

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footrest Max

705003525

$189.99

120

RH Footrest Max

705003521

$134.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

260

Mineral Gray Satin, LH Front Fender

715006933

$409.99

270

Mineral Gray Satin, RH Front Fender

715006949

$409.99

300

Mineral Gray Satin, Hood

715006988

$419.99

490

Mineral Gray Satin, LH Rear Fender

715006964

$409.99

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

495

Heat Shield

707002460

$4.29

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

498

Heat Shield

707002583

$4.29

499

Heat Shield

707002464

$3.89

500

Mineral Gray Satin, RH Rear Fender

705014483

$409.99

510

LH Rear Facia | North America, International

705006643

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002594

$0.98

520

RH Rear Facia | North America, International

705006650

$15.99

660

Mineral Gray Satin, LH Panel Central

705014484

$309.99

661

Heat Shield

707002467

$4.29

670

Mineral Gray Satin, RH Panel Central

705014485

$309.99

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector_Body Panel Kit

715007008

$28.99

690

Engine Cover

705003444

$22.99

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29
