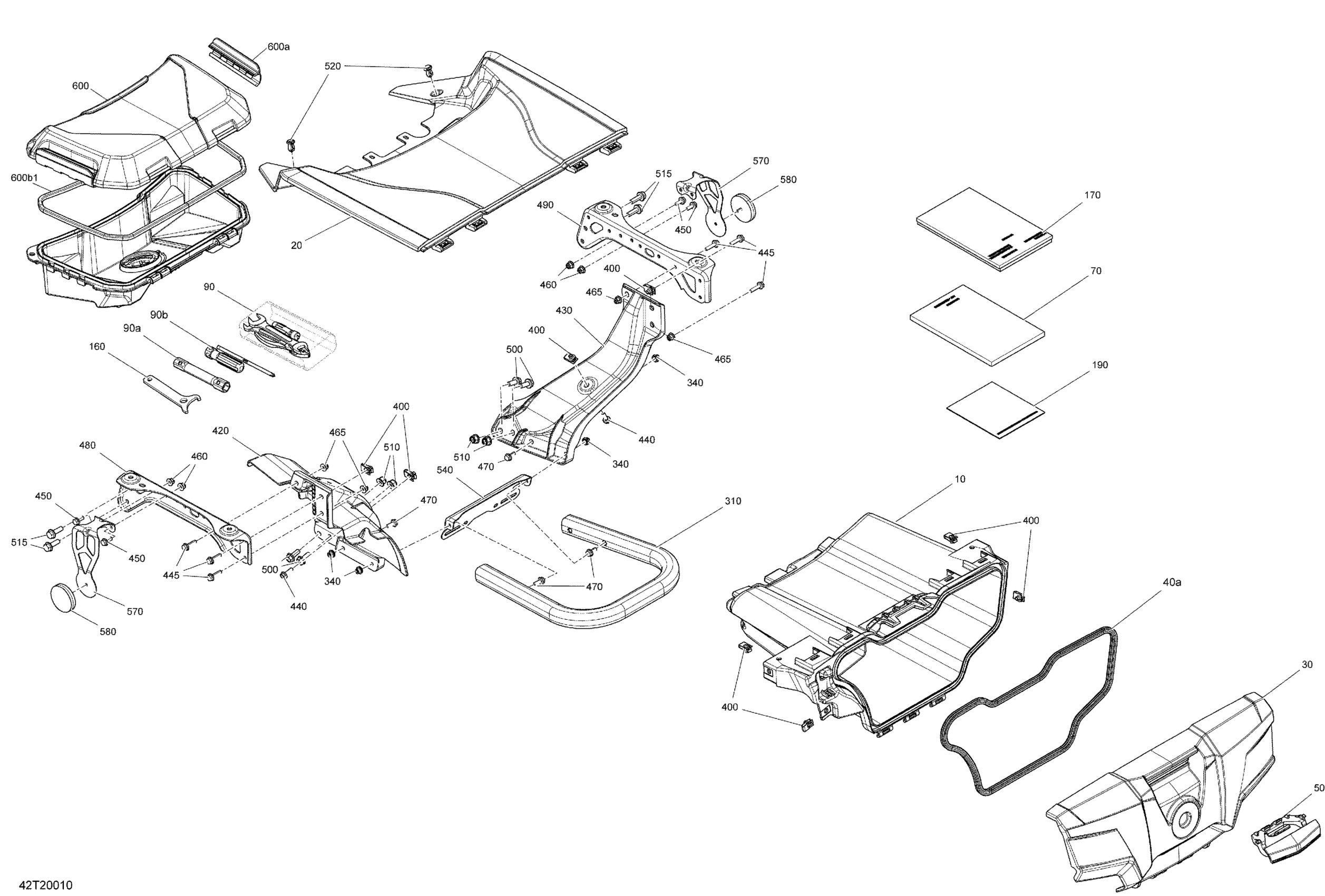

Can-Am 008 - Outlander 1000R EFI - XMR - International - Non-European Communities, 2020 09- Front Storage Compartment Diagram

Rear Storage Box

708300674

$93.99

Rear Storage Box Cover

708301212

$51.99

Rear Panel

708300150

$38.99

Was 293200163 Neoprene Seal

219704369

$29.99

Handle Latch

708201250

$14.49

Operator's Guide 2020

219002028

Unavailable

Tool Kit

704700168

$40.99

Socket Wrench 14/16MM

529000085

$6.55

Screw Driver

529000021

$3.29

Adjustment Wrench

529000035

$2.09

Manual Winch Kit | Not Shown

219001376

Unavailable

Waranty Registration Form

219400038

Unavailable

Deep Black, Rear Bumper

705015729

$42.49

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Panel Nut M6 X 1.0

250100198

$2.11

LH Cargo Support

705006997

$55.99

RH Cargo Support

705006998

$55.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

LH Support

705004563

$34.99

RH Support

705004564

$34.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Tuflok Plastic Rivet

293150230

$1.47

Plate Support

705004806

$13.99

Reflector Support

708200987

$4.09

Red Reflector

705011221

$14.49

Box Ass'y

708200408

$82.99

Clip | Outlander Max

269501945

$15.89

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99
