Description

Price

1

Inter.Press.Hui*Switch-Oil Pressure

420856539

$43.99

2

Crush Washer

420552280

$3.70

3

Drain Plug M18 X 1.5

420840278

$23.99

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$16.86

6

Oil Collector

420256650

$50.99

7

O-Ring

420650697

$11.05

8

Oil Sieve

420256576

$19.49

9

Torx Flange Screw M6 X 20

420440207

$3.06

10

Oil Dipstick

420256800

$17.05

11

O-Ring

420631640

$2.11

12

Needle Pin

420232431

$4.39

13

Idle Gear, 25 Teeth

420635191

$17.05

14

Snap Ring

420245330

$1.79

15

Location Pin 10 M6x50

420229302

$3.17

16

Idle Gear, 42 Teeth

420635660

$20.49

17a

Oil Pump Ass’y | Includes 17 to 24

420296507

$284.99

17b

Oil Pump Housing

420610221

$96.49

18

Piston Valve

420256922

$12.70

19

Compression Spring

420238220

$8.09

20

Plug Screw M16

420641167

$19.49

21

Oil Pump Shaft

420220814

$132.49

22

Oil Pump Outer Rotor

420256935

$69.99

23

Needle Pin

420232431

$4.39

24

Oil Pump Cover

420610570

$71.99

25

Needle Pin

420232431

$4.39

26

Oil Pump Gear, 32 Teeth

420635220

$20.99

27

O-ring

420250290

$8.85

28

Torx Flange Screw M6 X 45

420440324

$0.98

29

Oil Filter

420256188

$13.77

30

O-Ring

420230923

$3.17

31

Oil Filter cover

420612135

$11.63

32

Torx Flange Screw M6 X 25

420440234

$3.06

33

Torx Flange Screw M6 X 25

420440234

$3.06

34

Seal Washer

420230415

$1.79

35

Water Pump Housing

420222680

$62.49

36

Gasket

420630270

$11.05

37

Water Impeller

420222505

$19.99

38

Waterpump Shaft Ass'y

420620171

$73.99

39

Oil Seal

420650315

$11.65

40

Thrust Washer

420827590

$4.01

41

Needle Pin

420232431

$4.39

42

Idle Gear, 34 Teeth

420635620

$17.05

43

Snap Ring

420245330

$1.79

44

Loctite 243, 10 ml

293800060

$21.49

45

Grease, Super Lube

293550030

$28.99

46

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

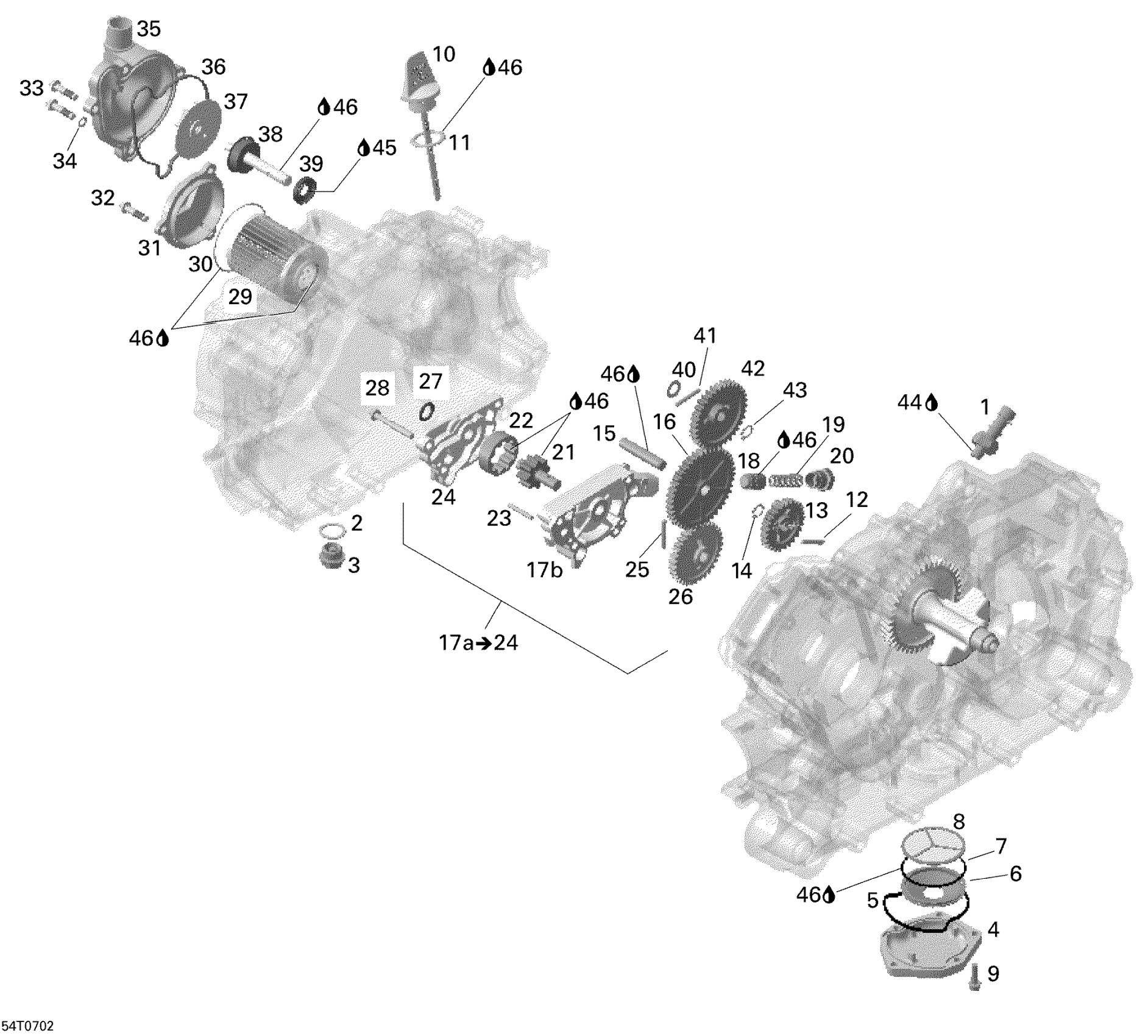

Can-Am Outlander 400 XT 4 X 4, 2007 01- Engine Lubrication Diagram
