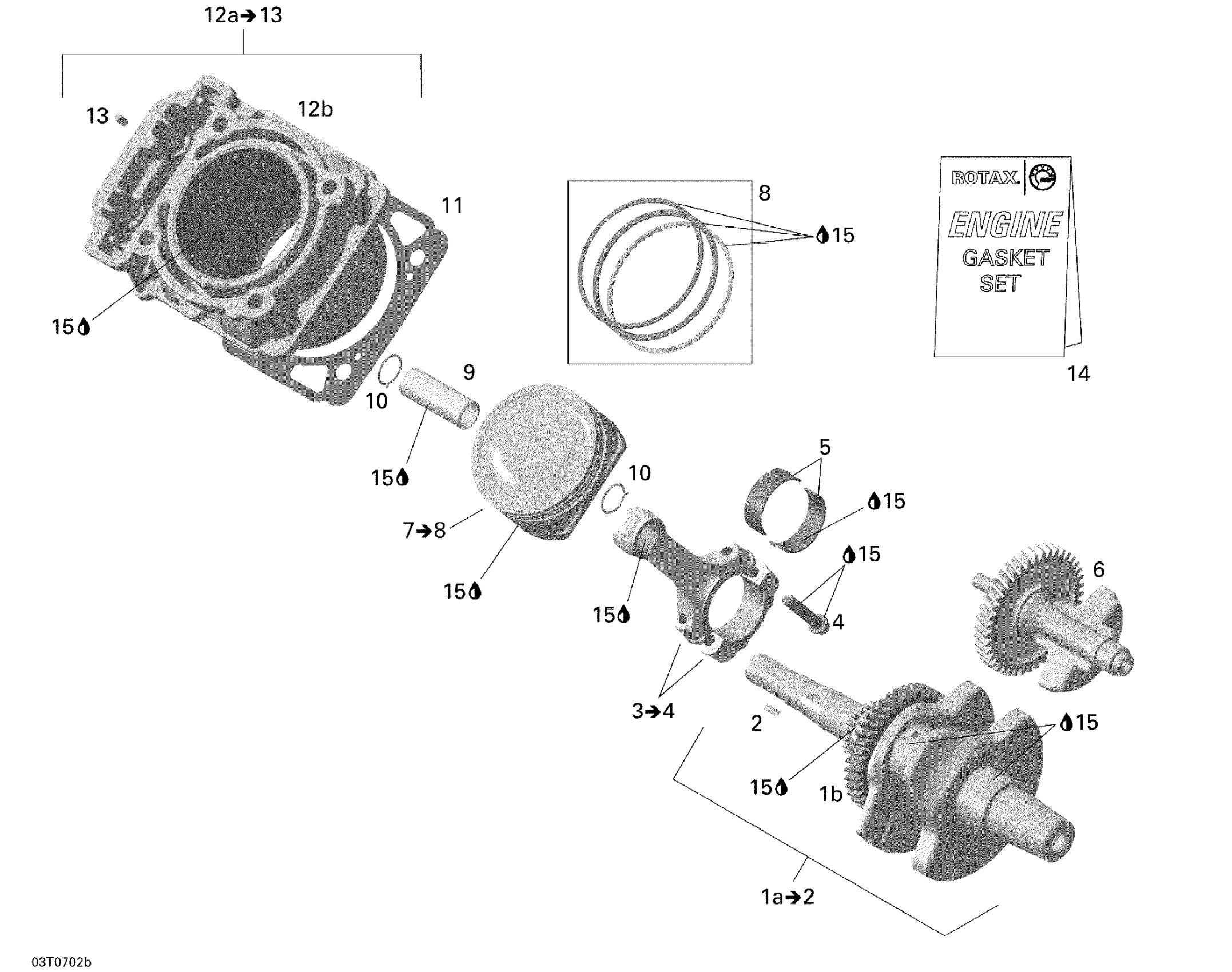

Can-Am Outlander 400 XT 4 X 4, 2007 01- Cylinder Diagram

#

Description
Price

1a

Crankshaft Ass'y | Includes 1 to 2

420296672

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

4

Connecting Rod Screw M8 X 1

420641645

$14.28

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

7

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$159.49

7

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

8

Piston Ring Set | 400HO

420296774

$78.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Piston Pin

420216270

$25.99

10

Piston Circlip

420845106

$3.93

11

Gasket

420630210

$12.71

12a

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Drive Pin 5 X 10

420929650

$1.68

14

Gasket Set | 400HO

420684125

$391.99

15

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
