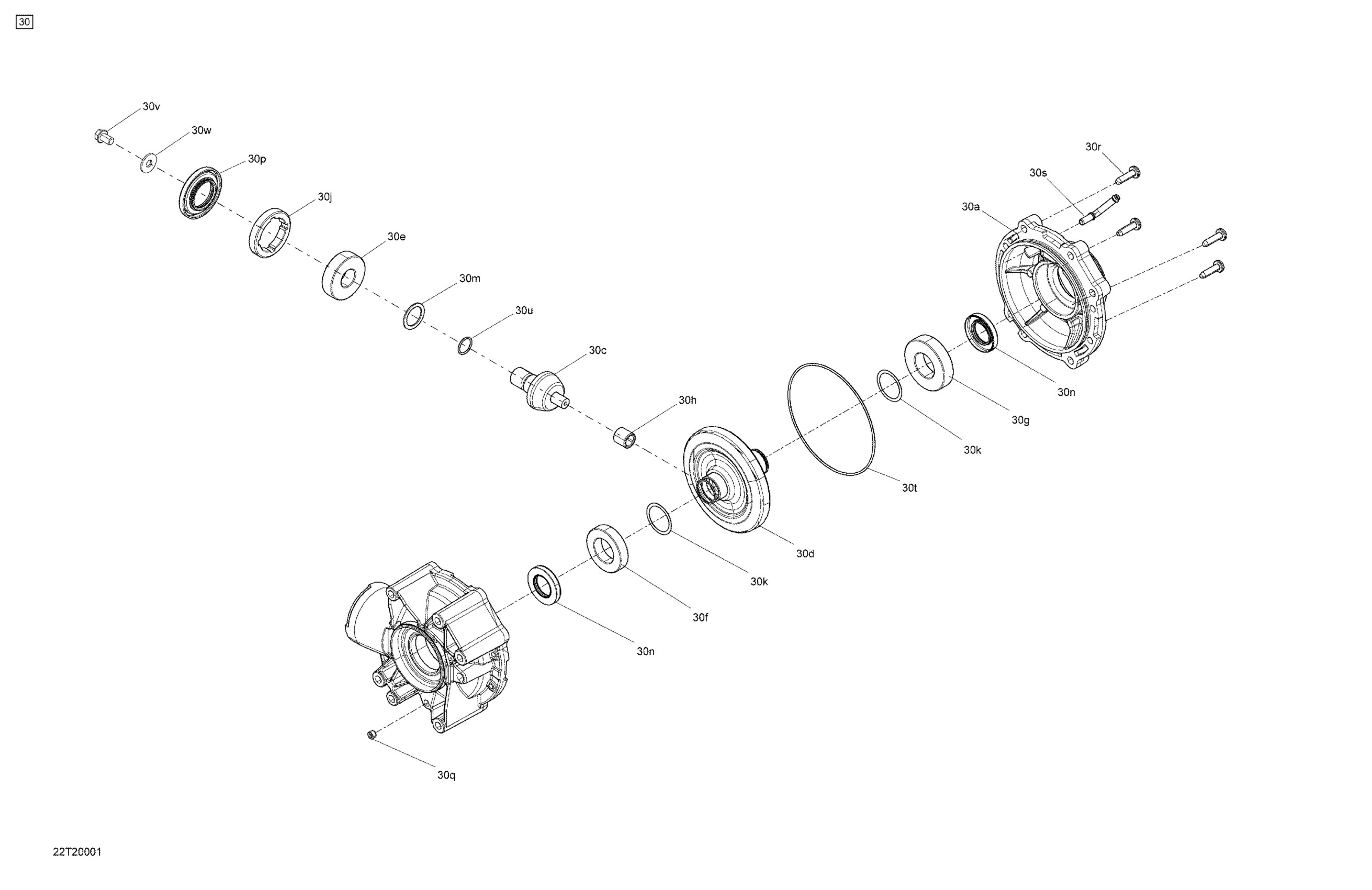

Can-Am 006 - Outlander 570 EFI - XMR - International, 2020 04- Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

30a

Rear Cover

705502734

$179.99

30c

Pinion 10 Teeth

705502053

$209.99

30d

Gear 36 Teeth

705502682

$189.99

30e

Ball Bearing

705502736

$31.99

30f

Ball Bearing

705502737

$48.49

30g

Ball Bearing

705502738

$59.49

30h

Needle Bearing

705502058

$49.99

30j

Nut

705502059

$32.99

30k

Differential Shim 0.02 mm

705502060

$13.76

30m

Pinion Gear Shim 1.67 mm

705502061

$18.99

30n

Oil Seal

705501556

$17.99

30p

Oil Seal

705502062

$23.49

30q

Plug Drain

705501724

$5.95

30r

Screw

705502063

$3.24

30s

Breather Tube

705501584

$14.99

30t

Seal

705502064

$8.47

30u

O-Ring

705502065

$5.95

30v

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

30w

Flat Washer M10 | 4X4

250200014

$1.49
