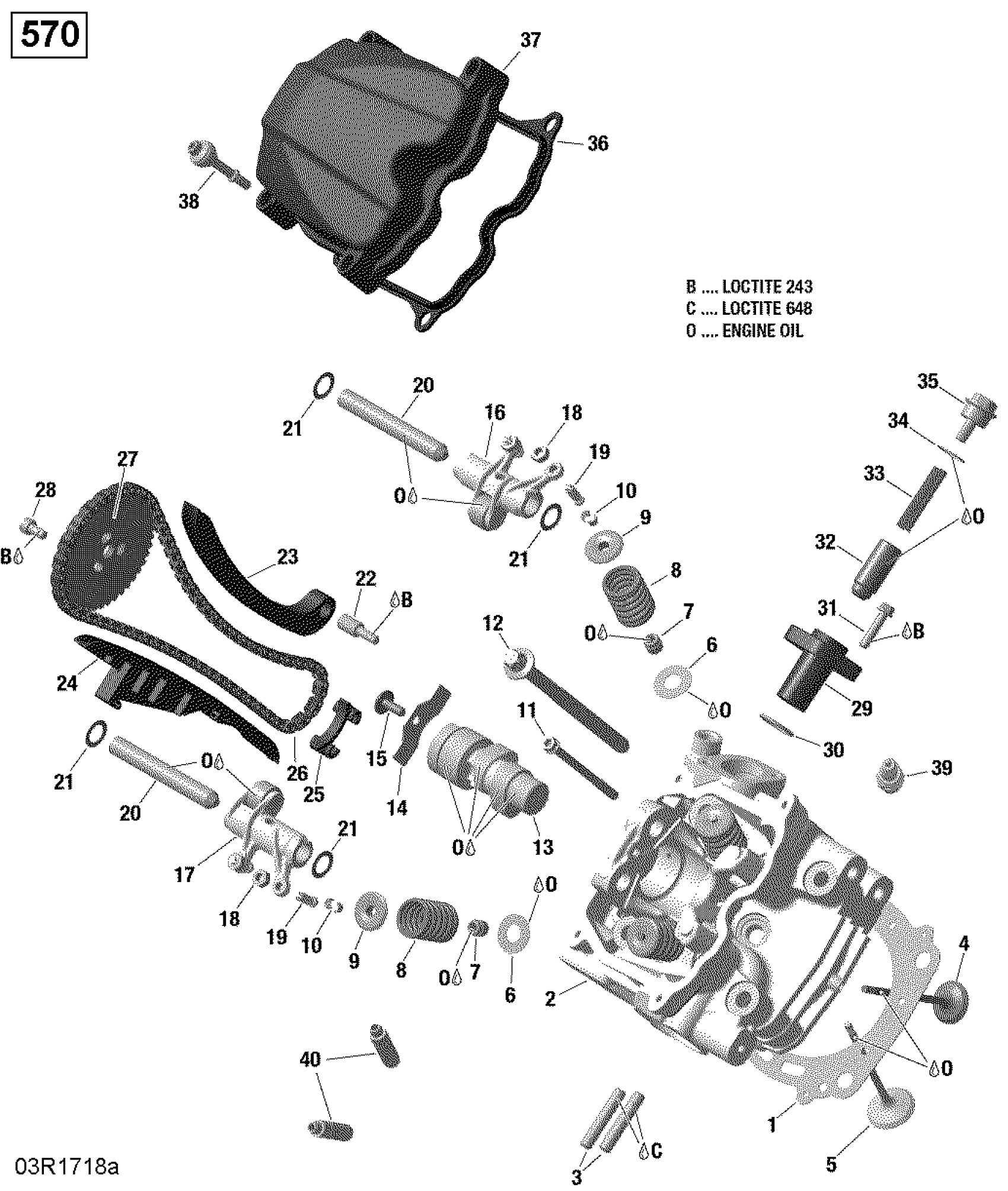

Can-Am 006 - Outlander 570 EFI - XMR - International, 2020 01- Cylinder Head, Front - 570 EFI Diagram

#

Description
Price

1

Cylinder Head Gasket

420630852

$68.99

2>3

Cylinder Head | Includes 2a to 3

420623941

$660.49

3

Stud M8 x 26

420941014

$14.22

4

Intake Valve 31MM

420254359

$35.99

5

Exhaust Valve 27MM

420254368

$69.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.18

8

Valve Spring

420239295

$14.28

9

Valve Spring Retainer

420254132

$14.28

10

Cotter Valve

420254120

$4.12

11

Torx Flange Screw M6 X 85

420641228

$7.41

12

Torx Screw M10X140

420641551

$14.28

13

Camshaft

420281078

$217.49

14

Holding Strip

420627743

$18.49

15

Torx Screw M6 X 16

420241529

$2.11

16

Inlet Rocker Arm

420254907

$142.99

17

Exhaust Rocker Arm

420254911

$147.99

18

Adjustment Screw M6 X 0.75

420241337

$5.07

19

Hex Nut M6

420242913

$0.53

20

Pin #12, Small, M6 X 90

420229712

$15.89

21

Shim

420944382

$4.12

22

Bearing Screw M6

420240943

$5.24

23

Chain Tension Guide

420436015

$29.49

24

Chain Guide

420236584

$7.51

25

Chain Guide

420236351

$14.81

26

Silent Chain

420297063

$65.49

27

Timing Gear 42T

420254438

$18.49

28

Allen Screw M6 X 12

420840032

$4.44

29

Chain Tensioner Housing

420236510

$11.63

30

O-Ring

420430373

$3.17

31

Torx Flange Screw M6 X 25

420440235

$2.11

32

Chain Tensioner Plunger

420236521

$14.83

33

Spring

420238120

$7.41

34

O-Ring

420250890

$3.06

35

Plug Screw

420641150

$7.41

36

Gasket

420630260

$26.49

37

Valve Cover

420610393

$26.49

38

Hex Screw M6 X 30

420440568

$8.58

39

Spark Plug, NGK DCP-R8E

715900637

$6.35

40

Valve Guide

420254374

$27.99
