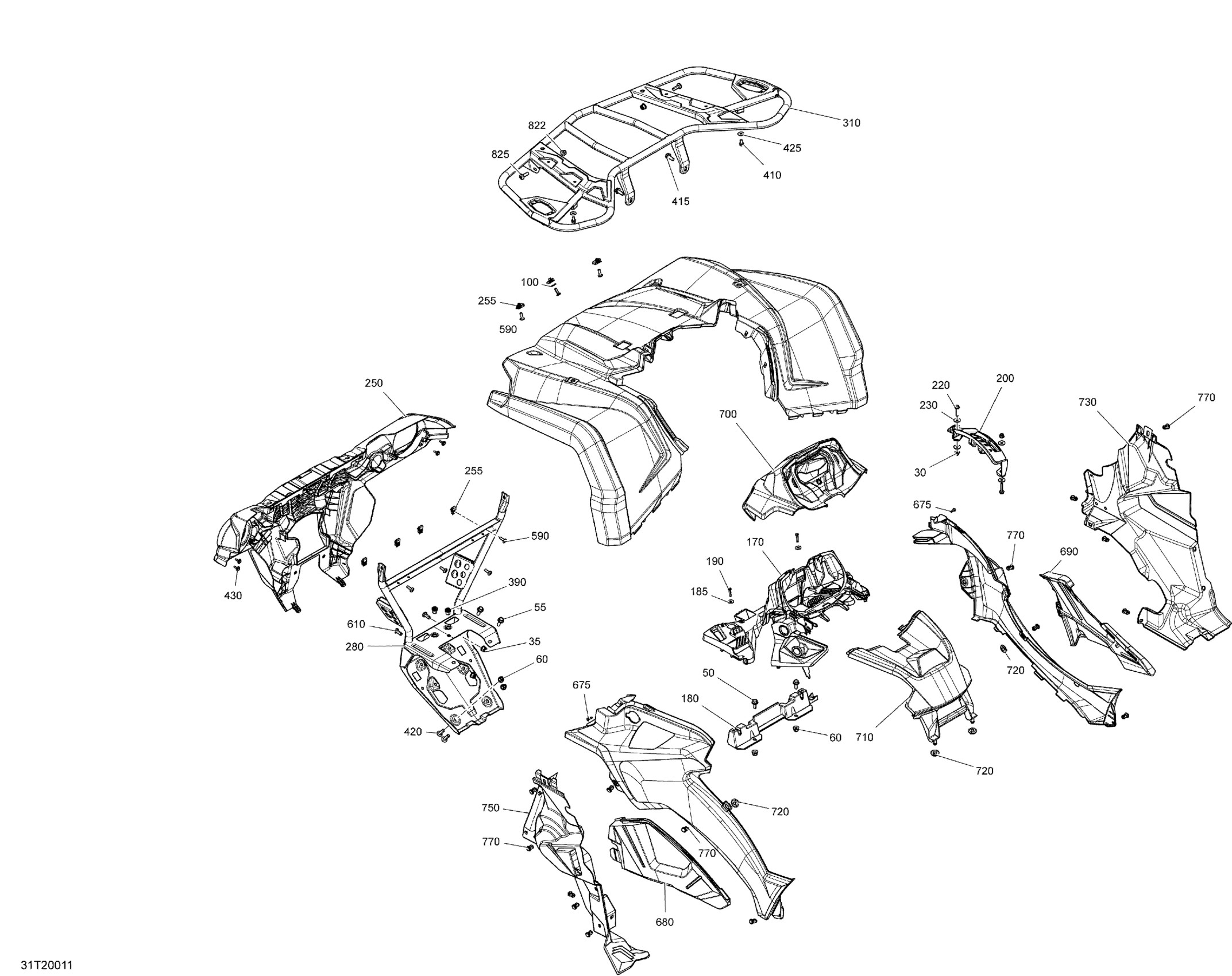

Can-Am 003 - Outlander 570 EFI - STD - International, 2020 09- Body - Front Section Diagram

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Elastic Nut M8

233281434

$2.11

Flat Washer 6 mm

234062410

$0.77

Console Support Ass'y | Model-Europe/International

715006101

$63.99

Console Support Insert

705010406

$16.99

Flat Washer M6, Stainless

234062600

$0.77

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$26.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Front Facia | Model-North America, International

705009334

$119.99

Panel Nut M6 X 1.0

250100198

$2.11

Front Frame

705017337

$264.99

Black, Front Luggage Rack

705006887

$285.99

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Hex. Flange Screw M6 X 12

210261250

$1.90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Torx Screw M8 X 30

250000886

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Screw M4 X 16

250000725

$3.49

Torx Screw M6 X 20

250000722

$1.68

Hex. Screw M8 X 20

236282054

$1.47

Phillips Screw K40 X 16

250000723

$0.98

Deflector_Body Panel Kit

715007008

$28.99

Engine Cover

705003444

$22.99

Gage Support

705007066

$44.99

Dash Kit

715005837

$33.99

Grommet

705003264

$4.09

RH Front Wheel Arch Protector

705017023

$28.49

LH Inner Fender

705012338

$28.49

Tuflok Plastic Rivet

293150230

$1.47

Elastic Flange Nut M8

233281464

$1.01

Pan Torx Screw M8 X 25

250000898

$2.11
