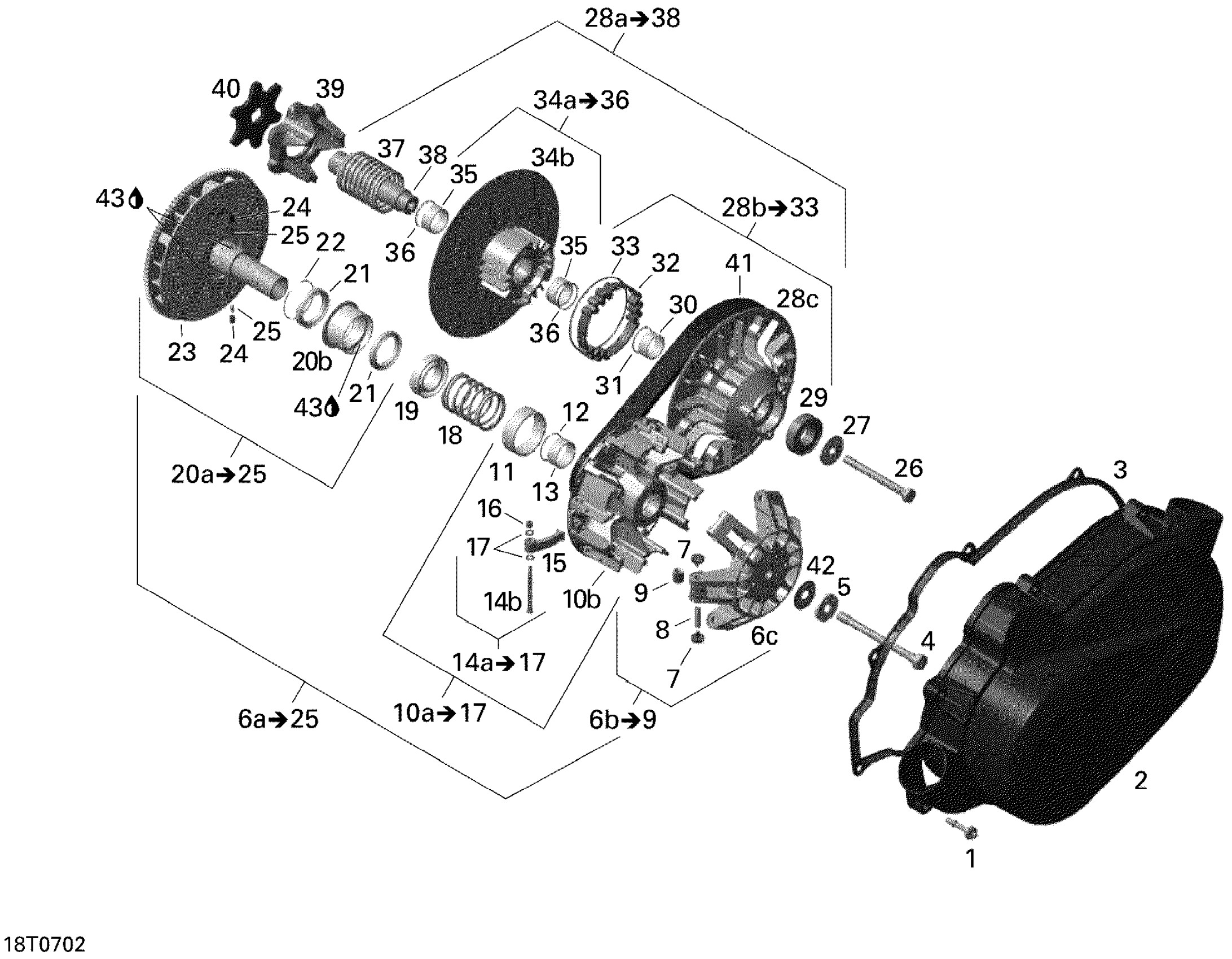

Can-Am Outlander 400 STD 4 X 4, 2007 05- Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$8.58

2

CVT COVER - Call your local BRP dealership

420610426

Unavailable

3

CVT Cover Gasket

420630290

$31.99

4

Hex. Screw M12 X 140

420641812

$29.49

5

Spring Washer

420627760

$11.65

6a

CVT Drive Ass'y | Includes 48 to 67

420684401

Unavailable

6b

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

6c

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10a

Outer Half Ass'y | Includes 52 to 59

420280316

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$75.49

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring

420238166

$35.99

19

Seat Spring

420627578

$35.99

20a

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

20b

Clutch

420257439

$169.99

21

Ball Bearing

420632377

$49.99

22

Retaining Ring

420245951

$5.31

23

Inner Half Ass'y

420280247

$381.49

24

Spring Sleeve

420229577

$18.49

25

Compression Spring

420239135

$6.59

26

Hex. Screw M10 X 110

420441485

$12.18

27

Thrust Washer

420627590

$16.99

28a

CVT Driven Pulley Ass'y | Includes 70 to 81

420685230

Unavailable

28b

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

28c

Not Available As Spare Part - Friction Washer

Unavailable

29

Ball Bearing

420932421

$28.49

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Torque Gear

420660124

$23.49

33

Retaining Ring

420245911

$5.31

34a

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Compression Spring

420238340

$24.49

38

Driven Pulley Shaft

420220913

$134.99

39

Cam

420280250

$43.49

40

Cam Plate

420627586

$48.99

41

Drive Belt

422280283

$104.99

42

Thrust Washer

420627920

$7.51

43

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
