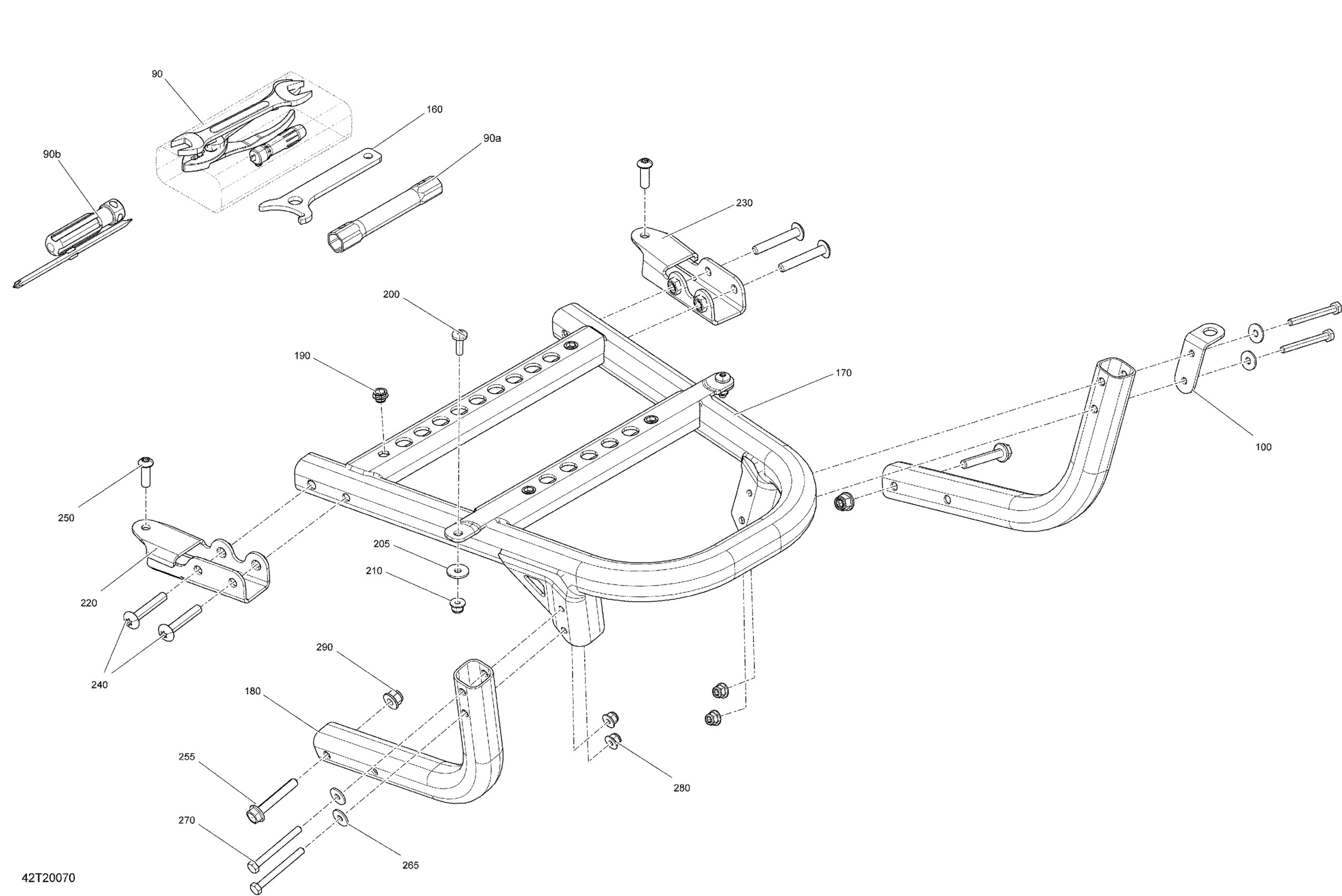

Can-Am 001 - Renegade 570 EFI - STD - North America, 2020 09- Front Storage Compartment Diagram

Description

Price

Tool Kit

704700168

$40.99

90a

Socket Wrench 14/16MM

529000085

$6.55

90b

Screw Driver

529000021

$3.29

100

Flag Support | Except Europe

705005837

$7.89

160

Adjustment Wrench

529000035

$2.09

170

Rear Bumper Kit | Package STD

715004150

$142.99

180

Rear Tube

705004981

$28.99

190

Insert Half Hex Body M6 x 1.0

250100199

$3.19

200

Torx Screw M6 X 20

250000712

$2.11

205

Flat Washer

224061201

$1.37

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

220

LH Front Bracket

705004977

$34.99

230

RH Front Bracket

705004978

$34.99

240

Torx Screw M8 X 50 S.GRIP

250000844

$6.77

250

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

255

Hex. Flange Screw M8 X 50

207685044

$1.69

265

Flat Washer 6 mm

234062410

$0.77

270

Hex. Screw M6 X 60

207066044

$0.67

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

290

Hex. Flange Elastic Nut M8

233281414

$1.47
