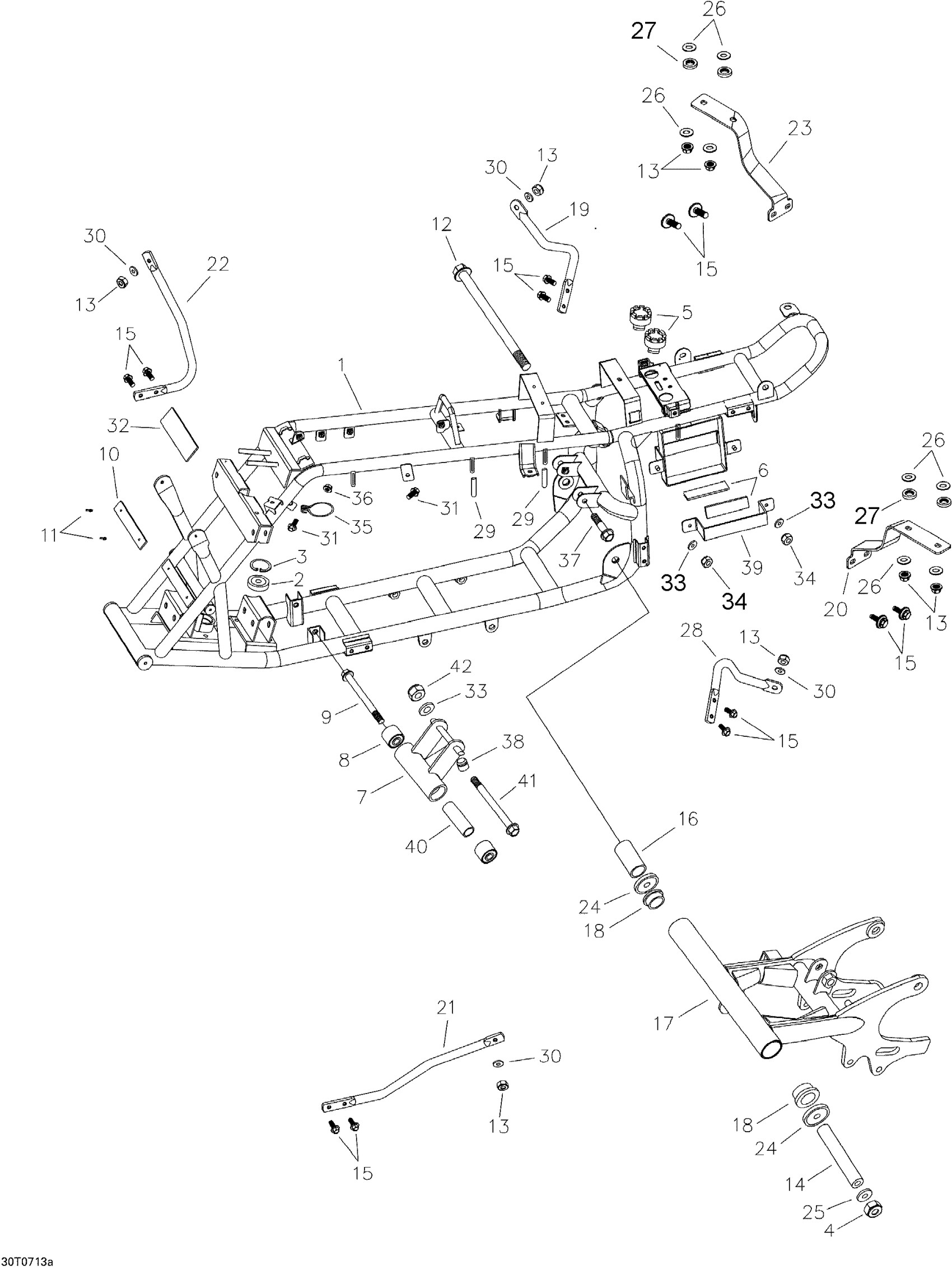

Can-Am Mini DS 90 4-strokes, 2007 09- Frame Diagram
#
1
Frame
A50100238001
Unavailable
3
INTERNAL CIRCLIP - Call your local BRP dealership
A945123200R
Unavailable
4
NYLON NUT M14 - Call your local BRP dealership
A9035014000
Unavailable
5
Rubber
A77211145000
Unavailable
6
SPONGE PAD - Call your local BRP dealership
A17505145000
Unavailable
7
Engine Bracket
A50350175000
Unavailable
8
RUBBER BUSHING - Call your local BRP dealership
A96400102820
Unavailable
9
Hexagonal Washer Face Bolt
A960001011014G
Unavailable
10
Frame No. Plate
A50110145000
Unavailable
11
Rivet
A90662105000
Unavailable
12
HEXAGONAL WASHER FACE BOLT M14X290 - Call your local BRP dealership
A960001429019
Unavailable
13
NYLON NUT M6 - Call your local BRP dealership
A9035006000
Unavailable
14
SWING ARM SPACER - Call your local BRP dealership
A52104145000
Unavailable
15
HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership
A920000601410
Unavailable
16
Rubber Sleeve
A52101145001
Unavailable
17
SWING ARM SUB ASS'Y - Call your local BRP dealership
A52100145004
Unavailable
18
BUSH - Call your local BRP dealership
A52103145000
Unavailable
19
REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership
A83401155000
Unavailable
20
Rear Cover Up Left Fixed Plate
A83402166000
Unavailable
21
FRONT COVER LEFT FIXED POLE - Call your local BRP dealership
A64307155000
Unavailable
22
FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership
A64308155000
Unavailable
23
REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership
A83403166000
Unavailable
24
SWING ARM SEAL COVER - Call your local BRP dealership
A52144145000
Unavailable
25
Plain Washer, 14 X 26 X 3
A941011426030
Unavailable
26
PLAIN WASHER, 6 X 14 X 2 - Call your local BRP dealership
A941010614020
Unavailable
27
Rubber Washer
A94102145000
Unavailable
28
Rear Cover Lower Left Fixed Pole
A83404155000
Unavailable
29
Cable Clamp Rubber
A11357145000
Unavailable
30
PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership
A941010618020
Unavailable
31
HEXAGONAL BOLT M6 X 16 - Call your local BRP dealership
A920000601610
Unavailable
32
Frame Decal
ABO907559
Unavailable
33
PLAIN WASHER - Call your local BRP dealership
A941051022025G
Unavailable
34
PLAIN WASHER - Call your local BRP dealership
A941010615010
Unavailable
35
CLIP - Call your local BRP dealership
A9451045000
Unavailable
37
HEXAGONAL WASHER FACE BOLT M10X40 - Call your local BRP dealership
A960001004014G
Unavailable
38
Rubber Damper
A95011101000
Unavailable
39
BATTERY BRACKET - Call your local BRP dealership
A31504145000
Unavailable
40
Spacer
A50358175001
Unavailable
41
Hexagonal Washer Face Bolt
A960001017014
Unavailable
