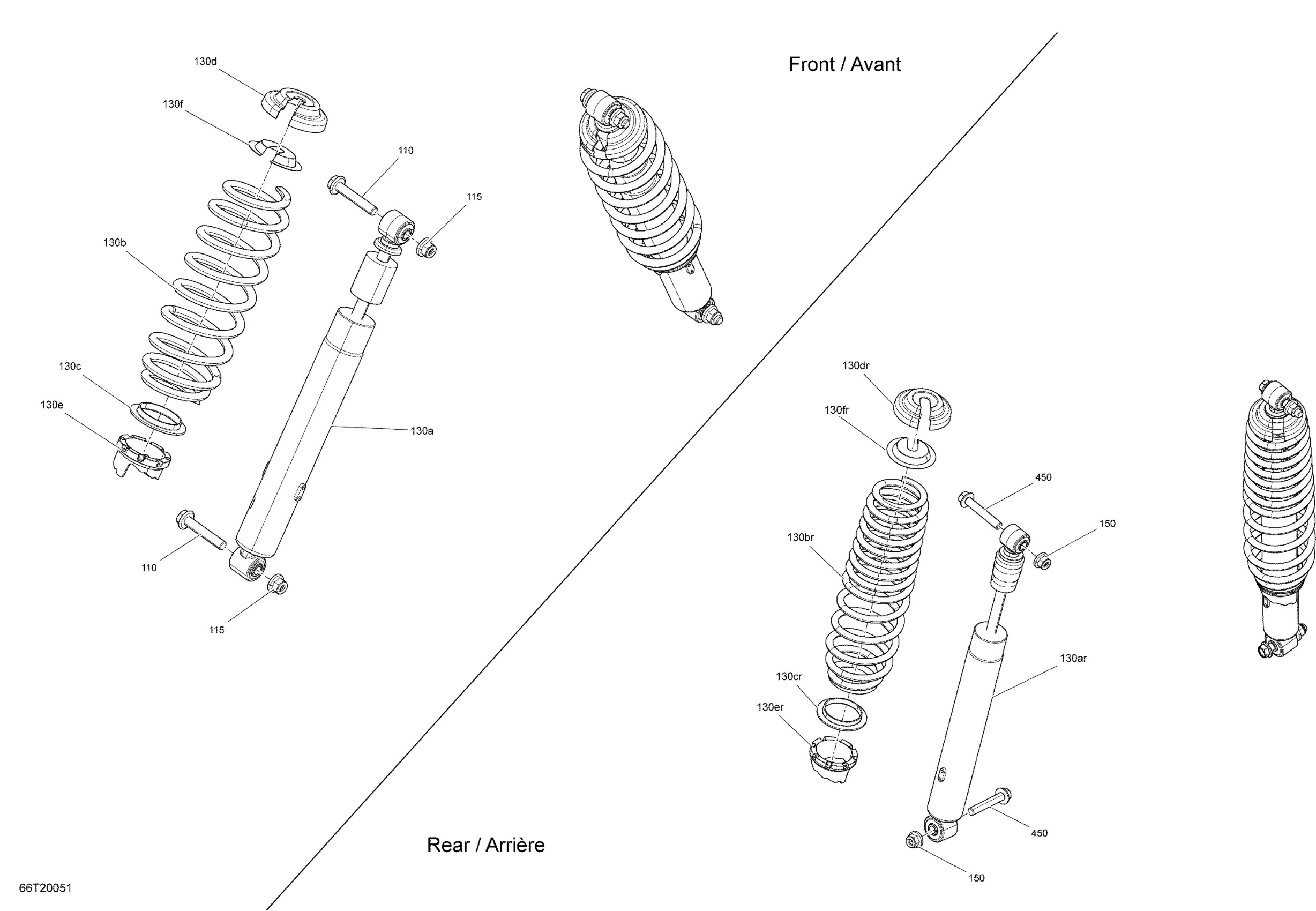

Can-Am 007 - Outlander MAX 650 EFI - North America, 2020 08- Shocks - XT Diagram

Description

Price

110

Hex. Flange Screw M10 X 55

207605546

$2.11

115

Hex. Flange Elastic Nut M10

233201436

$2.11

130a

Shock Absorber

706203204

$158.99

130b

Black, Spring

706203409

$78.49

130b

Red, Spring | Timeless Black

706203410

$100.49

130b

Compression Spring | Model Mineral Gray Satin

706203858

$96.49

130c

Adjustment Cam

505073625

$12.99

130d

Spring Stopper

706200881

$12.99

130e

Spring Guide

503187500

$10.49

130f

Cap

706200785

$4.69

130ar

Rear Shock Absorber

706003033

$179.99

130br

Black Spring

706003232

$100.49

130br

Red Spring | Timeless Black

706003247

$137.99

130br

Compression Spring | Model Mineral Gray Satin

706003682

$96.49

130cr

Adjustment Cam

505073625

$12.99

130dr

Spring Stopper

706200881

$12.99

130er

Spring Guide

503187500

$10.49

130fr

Cap

706200785

$4.69

150

Hex. Flange Elastic Nut M10

233201436

$2.11

450

Hex. Flange Screw M10 X 6

207606046

$4.12
