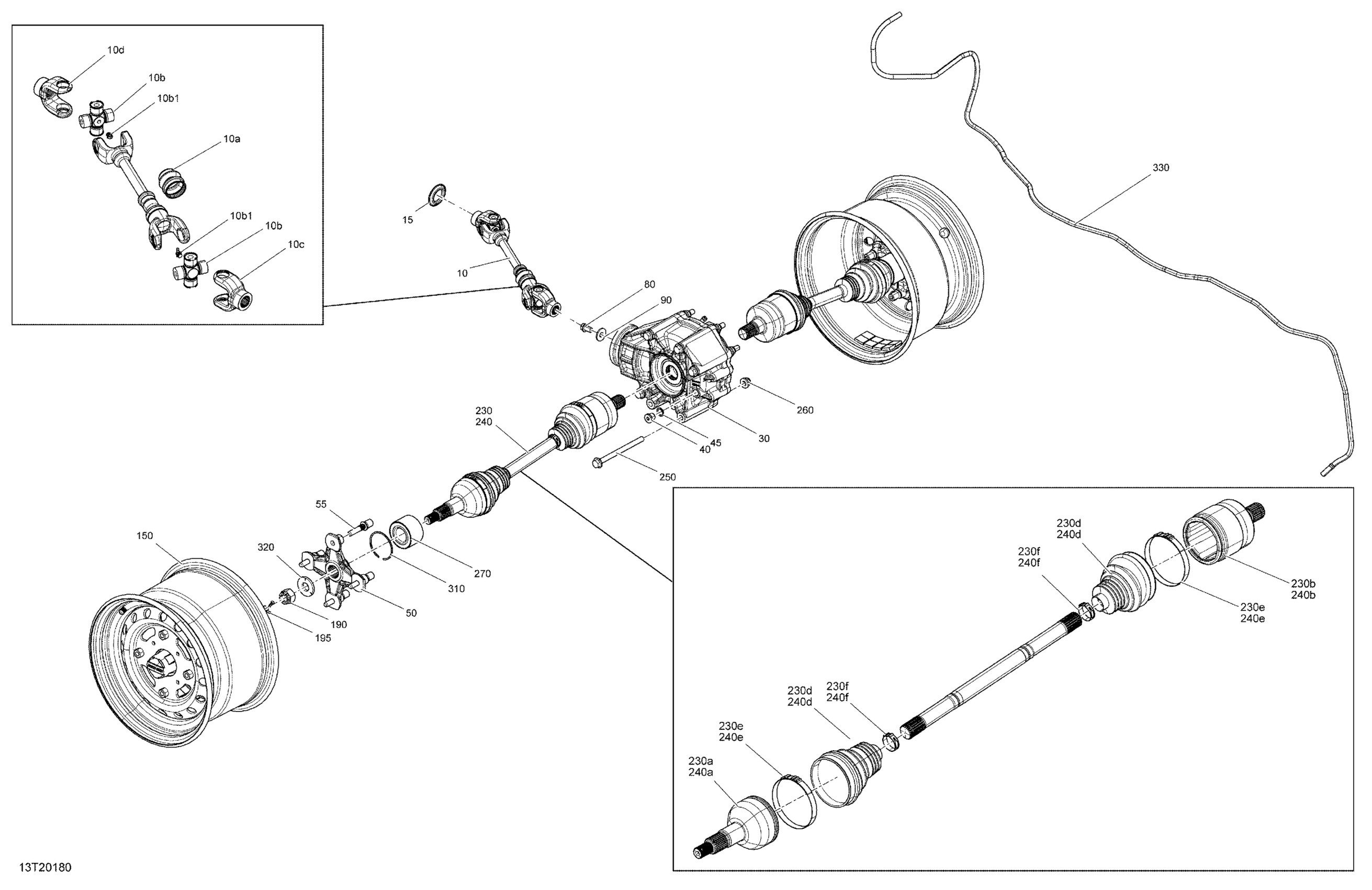

Can-Am 006 - Outlander 1000R EFI - XMR - North America, 2020 08- Rear Drive - Common Parts Diagram

Shaft Ass'y Kit

703500989

$206.49

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Yoke

715900499

$24.99

Joint | T3

715900436

$24.99

Protector

705501123

$7.55

Rear Final Drive Unit | Includes 30 to 30n

705503536

$1,292.99

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Wheel Rear

705402231

Unavailable

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH CV Joint | Package XMR

705503024

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

LH CV Joint | Package XMR

705503025

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
