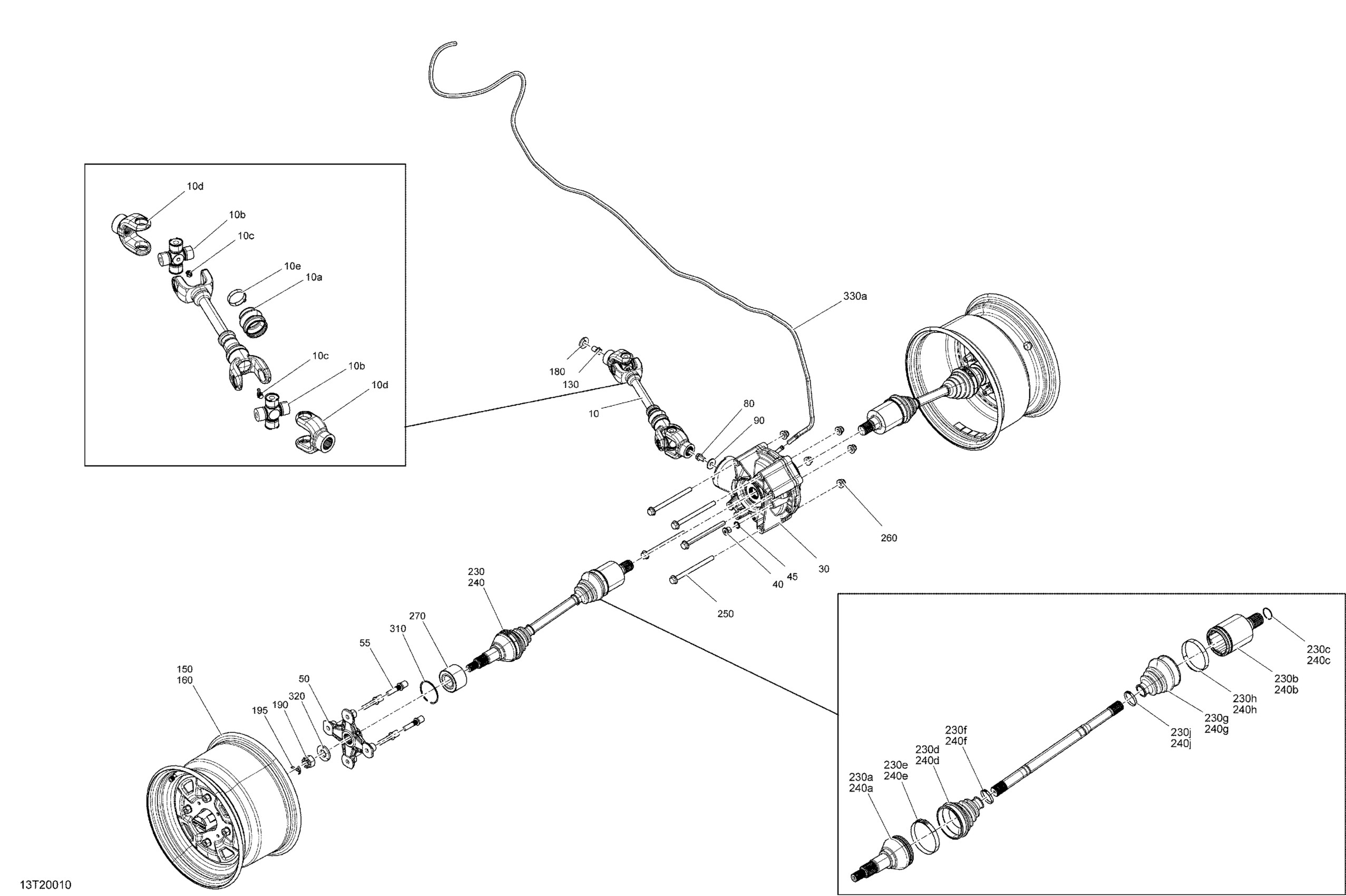

Can-Am 004 - Outlander MAX 450 EFI - North America, 2020 08- Rear Drive - Common Parts Diagram

Rear Propeller Shaft Ass'y Kit

703500933

$259.49

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Fixe Yoke

715900439

$24.99

Wear Ring | 4X4

705400036

$26.49

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH Half Shaft Ass'y

705501897

$243.99

CV Joint

705401344

$259.49

Plunging Joint

715900304

$121.49

Circlip

705501781

$6.50

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Differential Side

705401346

$42.49

Oetiker Clamp, Large

715900284

$5.29

Oetiker Clamp, Small

715900261

$5.29

LH Half Shaft Ass'y

705501898

$243.99

CV Joint

705401344

$259.49

Plunging Joint

715900304

$121.49

Circlip

705501781

$6.50

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Differential Side

705401346

$42.49

Oetiker Clamp, Large

715900284

$5.29

Oetiker Clamp, Small

715900261

$5.29

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
