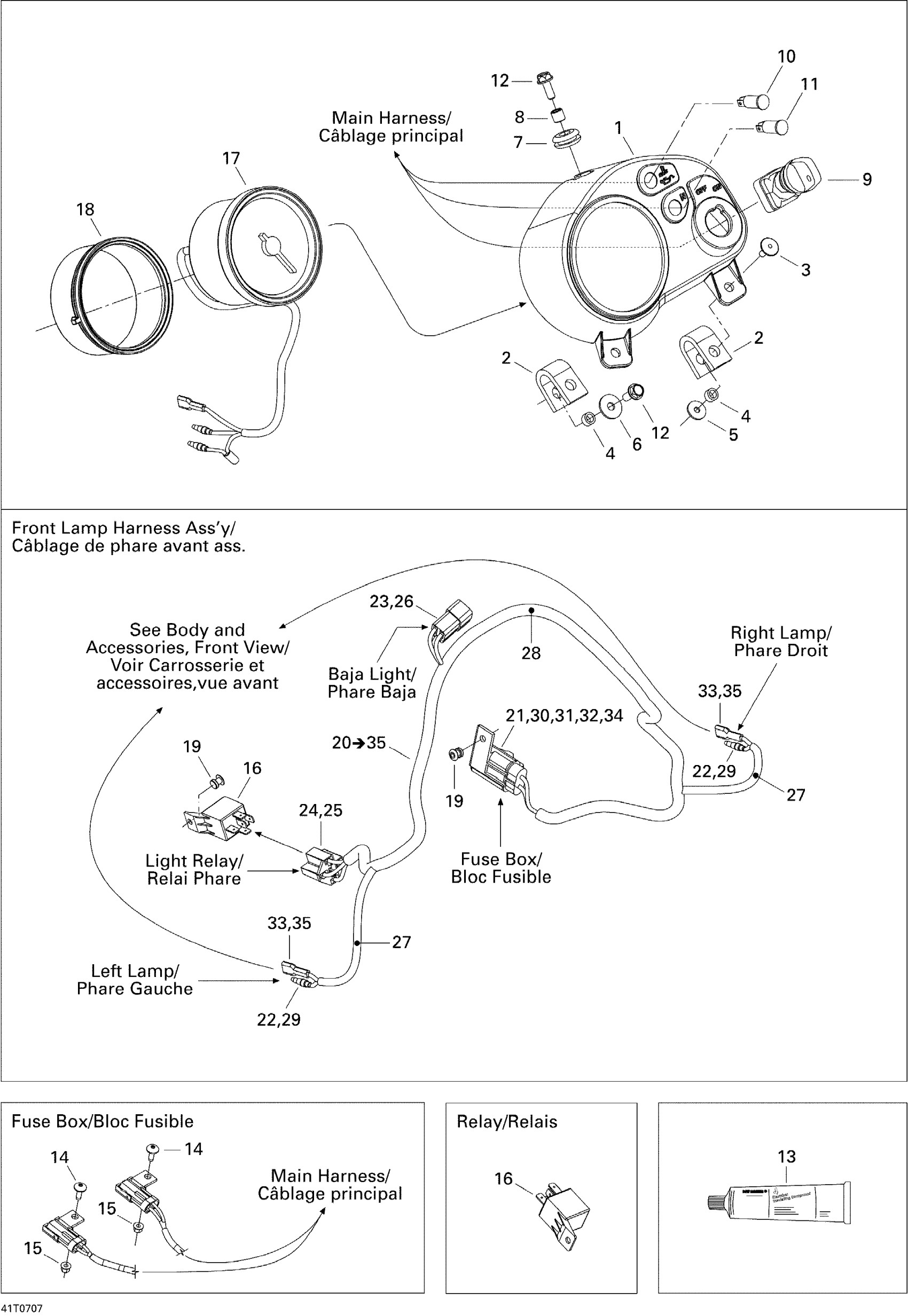

Can-Am DS 650 X, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

DASHBOARD - Call your local BRP dealership | DS 650 X

710000250

Unavailable

2

HOLDER - Call your local BRP dealership | DS 650 X

710000505

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Bushing | DS 650 X

293900104

$5.50

5

Washer

517124300

$0.19

6

Flat Washer

224061201

$1.37

7

Grommet

709000582

$4.69

8

Bushing

293900105

$7.65

9

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

10

Pilot Lamp, Red

710000062

Unavailable

11

PILOT LAMP, GREEN - Call your local BRP dealership

710000240

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Torx Screw M5 X 14

250000742

$1.47

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Relay | DS 650 X

710010053

$23.49

17

TACHOMETER - Call your local BRP dealership | DS 650 X

710000426

Unavailable

18

GAUGE SUPPORT - Call your local BRP dealership | DS 650 X

710000427

Unavailable

19

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

20

FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37

710000256

Unavailable

21

Cushion

278000805

$3.28

22

Male Terminal

278000230

$4.39

23

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

24

Female Housing, 5 Circuits

409209900

$9.59

25

Female Terminal

561503100

$2.41

26

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

27

Tubing 6 Mm 3000Mm Long

219704425

$13.75

28

Was 409901700 Tubing (9 mm)

219704399

$84.99

29

Insulated Sheath

278001008

$3.28

30

Fuse, 15 Amperes

278000343

$3.28

31

Fuse Holder Cap

278001326

$7.69

32

Fuse Holder

278001325

$8.79

33

Rubber Envelope Terminal

710000115

Unavailable

34

Female Terminal

710000113

$6.99

35

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable
