Description

Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$0.55

40

Positive Cable

710004376

$48.99

41

Battery Cable Cap

710006729

$7.20

72

Hex. Flange Screw M6 X 16

210261640

$2.11

200

Harness | CARB Vehicle - Packages XTP, XMR & LTD

710006240

$989.99

202

Indicator Light Cable

710005840

$19.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

250

Brake Harness | Includes 1 to FRV2

710004324

$30.99

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

282

Clip

414227300

$1.67

287

Clip

414227300

$1.67

370

Tie-Rap Clip

710002896

$4.39

384

Tie-Rap Clip

710002896

$4.39

385

Tie-Rap Clip

710002896

$4.39

390

Tie-Rap Clip

710002896

$4.39

391

Tie-Rap Clip

710002896

$4.39

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410

Flasher Unit

710003239

$78.49

500

LH Multi Fonction Control

710006211

$174.99

530

Ignition Switch

710008400

$78.49

600

Speedometer

710006216

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600b

BRP Logo13 mm

704904615

$13.49

600c

Button

715900265

$13.71

630

Grey, Electronic Key

710002183

$63.49

640

Black, Electronic Key

710000817

$63.49

709a

LH Low Front Housing

710001083

$19.99

709a

RH Low Front Housing

710001081

$19.99

709b

LH Low Rear Housing

710001084

$12.99

709b

RH Low Rear Housing

710001082

$12.99

709c

Setting Screw

710001147

$12.71

709e

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$149.99

709f

Halogen Bulb

415129249

$41.49

709g

Hex. Screw M4 X 25

207142544

$2.00

709h

Flat Washer M5

234051410

$0.53

709j

Elastic Stop Nut M4

232541414

$0.58

709k

Phillips Screw K40 X 16

250000723

$0.98

709m

Painted Headlamp Support

705004309

$16.99

709n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

709p

Light Harness

710005944

$30.99

709q

LH High Front Housing

710001087

$19.99

709q

RH High Front Housing

710001085

$19.99

709r

LH High Rear Housing

710001088

$12.99

709r

RH High Rear Housing

710001086

$12.99

709s

LH Low Light Support

710006353

$26.99

709s

RH Low Light Support

710006354

$20.99

709t

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

709t1

Halogen Bulb

415129249

$41.49

709u

LH Front Facia

705004508

$51.99

709u

RH Front Facia

705004509

$51.99

709v

Clip

414227300

$1.67

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

720a

Bulb

520000758

$9.10

725a

License Plate Light | Europe

710005563

$126.99

725b

Plate Support | Europe

708300553

$24.49

725c

Red Reflector

705011221

$14.49

730

Position Light Harness

710005676

$15.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

747

Clip

414479100

$1.90

748

Hex. Flange Elastic Nut M8

233281414

$1.47

749

Hex. Flange Screw M8 X 20

207682044

$1.15

750a

RH Flasher Support

710005900

$8.99

750a

LH Flasher Support

710005899

$8.99

750b

Flasher | Europe

710002964

$35.99

750c

Day Light | Europe

710001726

$35.99

750d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

752

Washer

503175800

$3.28

753

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 16

207661644

$0.74

783

Horn Support

710006112

$6.95

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

810

Rectifier Support

710002587

$15.99

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

813

Rubber Bumper

293830005

$8.09

850

Connector Plug

710004904

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710006561

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

920

Fixation Plate

710002404

$9.39

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99

1830

Speed Sensor

710006981

$83.99

1831

Torx Screw K50 X 16

250000720

$1.69

1832

Torx Truss Screw M6 X 16

250000721

$1.69

1844

Socket Head Screw M5 X 35

205053588

$1.90

1845

Trailer Harness

710005846

$229.99

1851

Clamp

293650256

$5.49

1852

Hex. Flange Screw M6 X 16

210261640

$2.11

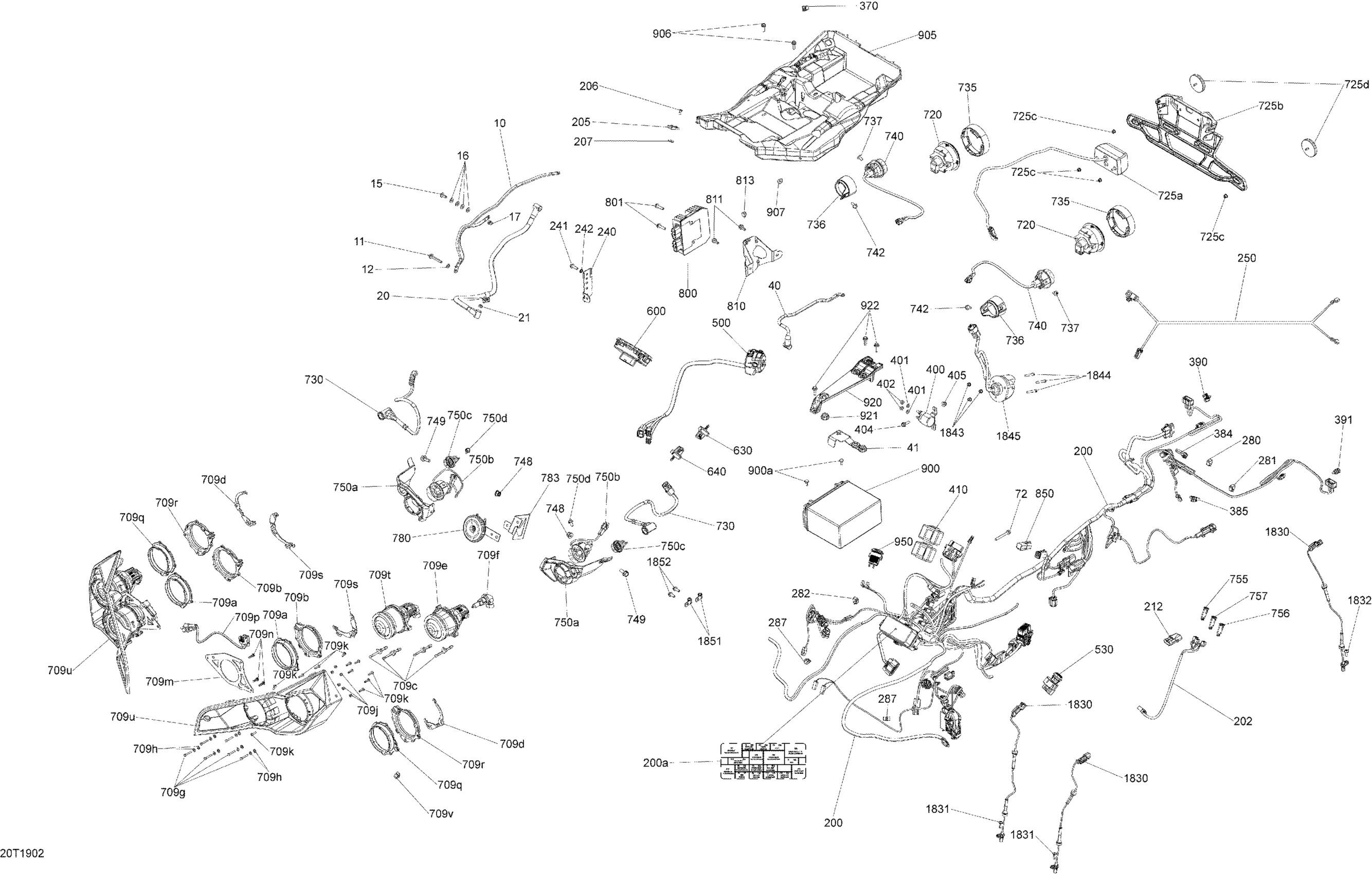

Can-Am 002 - Renegade 1000 EFI - T3, 2019 10- Electrical - 1000R EFI Diagram

Ground Cable

Hex. Flange Screw M6 X 16, Scotch Grip

Lock Washer Helical M6

Torx Head Screw M6 X 16

Flat Washer

Domed Nut M6

Positive Cable

Elastic Stop Nut M6

Positive Cable

Battery Cable Cap

Hex. Flange Screw M6 X 16

Harness | CARB Vehicle - Packages XTP, XMR & LTD

Indicator Light Cable

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Connector Ass'y | STD / Includes 7 to 10

Female Terminal Housing, 3 Circuits | XT Models

Wire Seal

Clip

Connector Bracket

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Brake Harness | Includes 1 to FRV2

Clip

Clip

Clip

Clip

Tie-Rap Clip

Tie-Rap Clip

Tie-Rap Clip

Tie-Rap Clip

Tie-Rap Clip

Starter Relay

Lock Washer Helical M6

Elastic Stop Nut M6

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flasher Unit

LH Multi Fonction Control

Ignition Switch

Speedometer

Trim Ring Ass'y

BRP Logo13 mm

Button

Grey, Electronic Key

Black, Electronic Key

LH Low Front Housing

RH Low Front Housing

LH Low Rear Housing

RH Low Rear Housing

Setting Screw

Low Beam Ass'y 60MM | Includes 709 to 709v

Halogen Bulb

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Phillips Screw K40 X 16

Painted Headlamp Support

Hex. Flange Screw K50 X 2.24 X 16

Light Harness

LH High Front Housing

RH High Front Housing

LH High Rear Housing

RH High Rear Housing

LH Low Light Support

RH Low Light Support

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

LH Front Facia

RH Front Facia

Clip

Tail Light Ass'y | Includes 32 to 33

Bulb

License Plate Light | Europe

Plate Support | Europe

Red Reflector

Position Light Harness

Flasher | Europe
