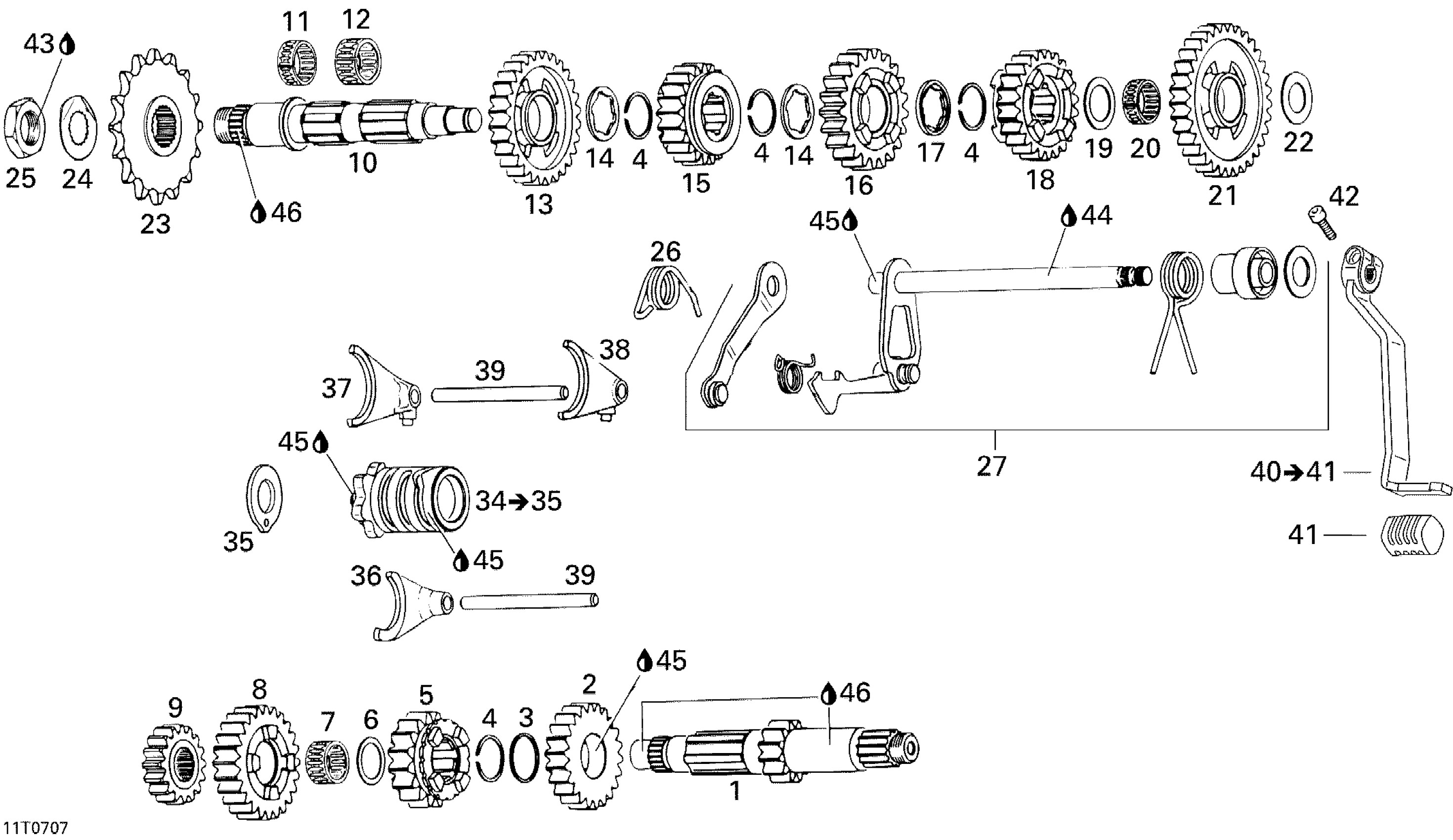

Can-Am DS 650 X, 2007 05- Gear Shift Diagram

#

Description
Price

1

GEAR SET, 1 SPEED - Call your local BRP dealership

420281410

Unavailable

2

Gear Set, 4 Speed

420281416

Unavailable

3

THRUST WASHER - Call your local BRP dealership

420227825

Unavailable

4

Circlip

420445302

$4.12

5

GEAR SET, 3 SPEED - Call your local BRP dealership

420281414

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227445

Unavailable

7

NEEDLE BEARING - Call your local BRP dealership

420232805

Unavailable

8

Gear Set, 5 Speed

420281418

Unavailable

9

Gear Set, 2 Speed

420281412

Unavailable

10

MAIN SHAFT - Call your local BRP dealership

420220730

Unavailable

11

NEEDLE BEARING - Call your local BRP dealership

420232520

Unavailable

12

Needle Bearing

420232530

$28.49

13

Not Available As Spare Part - Friction Washer

Unavailable

14

THRUST RING - Call your local BRP dealership

420627051

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

ANGULAR RING - Call your local BRP dealership

420627061

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Thrust Washer

420244100

Unavailable

20

Needle Bearing

420232742

$19.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

THRUST WASHER - Call your local BRP dealership

420227430

Unavailable

23

CHAIN WHEEL - Call your local BRP dealership

420236470

Unavailable

24

Tab Washer

420245391

$20.49

25

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.54

26

INDEX SPRING - Call your local BRP dealership

420239095

Unavailable

27

Shift-Shaft Ass'y | Includes 27 to 32

420620230

Unavailable

34

DRUM-SHIFT - Call your local BRP dealership | Includes 34 to 35

420258275

Unavailable

35

ISOLATING WASHER - Call your local BRP dealership

420227562

Unavailable

36

FORK-SHIFT - Call your local BRP dealership

420258038

Unavailable

37

FORK-SHIFT - Call your local BRP dealership

420258028

Unavailable

38

FORK-SHIFT - Call your local BRP dealership

420258018

Unavailable

39

FORK SPINDLE - Call your local BRP dealership

420258782

Unavailable

40

Gearshift Lever

420248317

Unavailable

41

Rubber Sleeve

420260205

Unavailable

42

Socket Head Screw M6 X 20

205062047

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Grease, Super Lube

293550030

$28.99

45

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

46

Petamo Grease, GHY133N, 400 g

420899271

$67.99
