Description

Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$0.55

41

Battery Cable Cap

710006729

$7.20

200

No ABS Cable

710006170

$1,009.99

202

Indicator Light Cable

710005840

$19.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

211

Clip

710000992

$4.29

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410

Flasher Unit

710003239

$78.49

500

LH Multi Fonction Control

710006211

$174.99

530

Ignition Switch

710008400

$78.49

600

Speedometer

710006216

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600b

BRP Logo13 mm

704904615

$13.49

600c

Button

715900265

$13.71

610

BRP Logo13 mm

704904615

$13.49

630

Grey, Electronic Key

710002183

$63.49

640

Black, Electronic Key

710000817

$63.49

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

770

Day Light | Europe

710001726

$35.99

779

Horn Support

710006113

$13.49

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 70

207667044

$0.85

783

Bushing

708001129

$11.99

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

785

Hex. Flange Screw M6 X 16

207661644

$0.74

800

Voltage Regulator

710005842

$189.99

802

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

803

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

850

Connector Plug

710004904

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710006561

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

920

Fixation Plate

710002404

$9.39

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$0.77

1839

Cable

710004567

$12.76

2000

Rear Light Harness

710005932

$299.99

2020

Trailer Harness

710005846

$229.99

2030

Screw M5 X 35 | Not Shown

40233

Unavailable

2040

Hex. Flange Elastic Nut M5

233251414

$1.04

2050

Plug Fastening Plate

705204572

Unavailable

2060

Elastic Stop Nut M10

232500416

$1.90

2070

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

2080

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2090

Sheath | Not Shown

710004193

$20.49

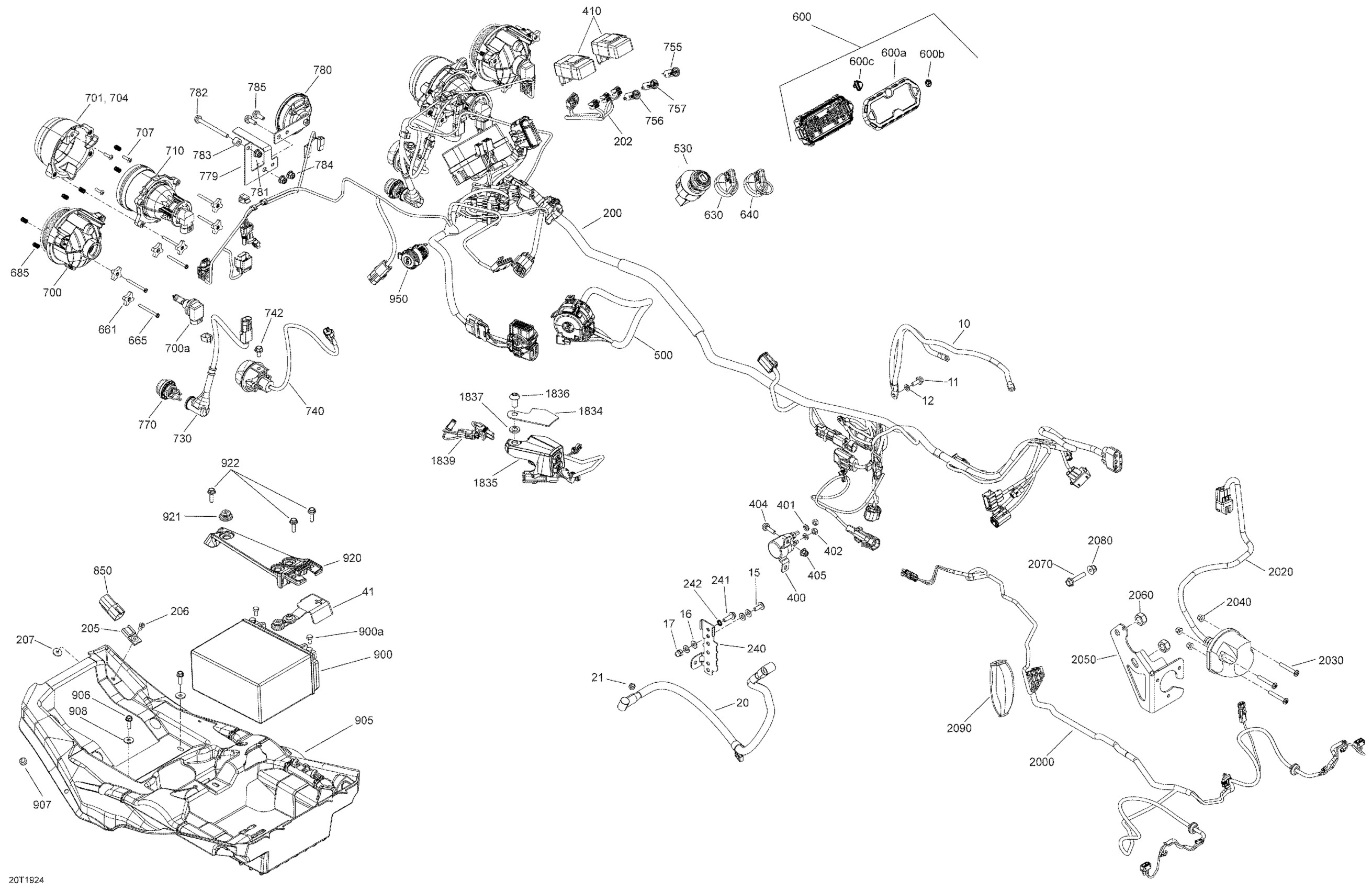

Can-Am 006 - Outlander MAX 6X6 - 1000 EFI - T3, 2019 10- Electrical 6X6 - 650 EFI - 1000 EFI - EUROPE Diagram

Ground Cable

Hex. Flange Screw M6 X 16, Scotch Grip

Lock Washer Helical M6

Torx Head Screw M6 X 16

Flat Washer

Domed Nut M6

Positive Cable

Elastic Stop Nut M6

Battery Cable Cap

No ABS Cable

Indicator Light Cable

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Clip

Connector Bracket

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Starter Relay

Lock Washer Helical M6

Elastic Stop Nut M6

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flasher Unit

LH Multi Fonction Control

Ignition Switch

Speedometer

Trim Ring Ass'y

BRP Logo13 mm

Button

BRP Logo13 mm

Grey, Electronic Key

Black, Electronic Key

Handle

Hex. Screw K40 X 45

Spring

Low Beam | Includes 54 to 55

Bulb 12V 55W

RH High Front Housing

LH High Front Housing

Phillips Screw K40 X 16

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

Flasher | Europe

Hex. Flange Screw M6 X 12, Scotch Grip

Pilot Light Trailer Flasher

Pilot Light Tail Lamp

Pilot Lamp | Model-Europe

Day Light | Europe

Horn Support

Horn

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 70

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 16

Voltage Regulator

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Connector Plug

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Support

Hexagonal Head Screw

Rubber Bumper

Stainless Steel Flat Washer

Fixation Plate

Stopper Rubber

Hex. Flange Screw M6 X 20

DC Outlet

Top Plate

Multifonction Housing Ass'y

Screw M10 X1.25 X 20 BHCS S.Grip

Washer

Cable

Rear Light Harness

Trailer Harness

Screw M5 X 35 | Not Shown

Hex. Flange Elastic Nut M5
