Description

Price

1

FUEL TANK - Call your local BRP dealership

709000010

Unavailable

2

Hex. Screw M5 X 14

207151444

$0.87

3

Grommet

570045500

$6.69

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

7

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

8

Spring Clamp

414655700

$0.72

9

Oetiker Clamp

293650125

$3.29

10

FUEL VALVE - Call your local BRP dealership

709000011

Unavailable

11

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

12

Fuel Tank Cap 91 Octane

513033722

$22.49

13

Neoprene Seal (1PAC=3M)

219704364

$27.49

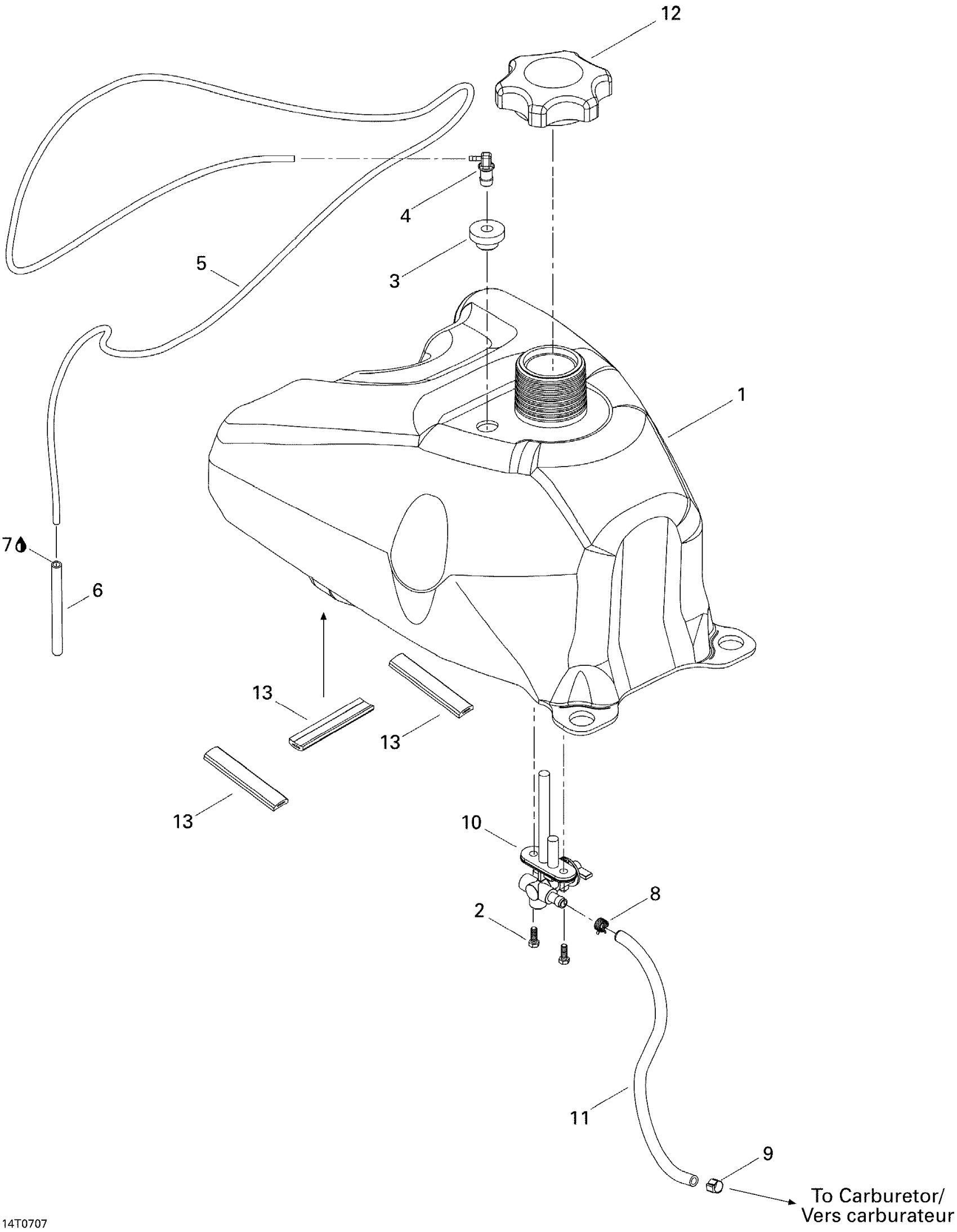

Can-Am DS 650 X, 2007 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Hex. Screw M5 X 14

Grommet

Male Connector

Was 415080100 Fuel Line Primer 3,2mm

Was 415110000 Polyurethane Hose 5.2 mm

Était Was 413705800 Loctite 414 , 29.5 c.c

Spring Clamp

Oetiker Clamp

FUEL VALVE - Call your local BRP dealership

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

Fuel Tank Cap 91 Octane

Neoprene Seal (1PAC=3M)
