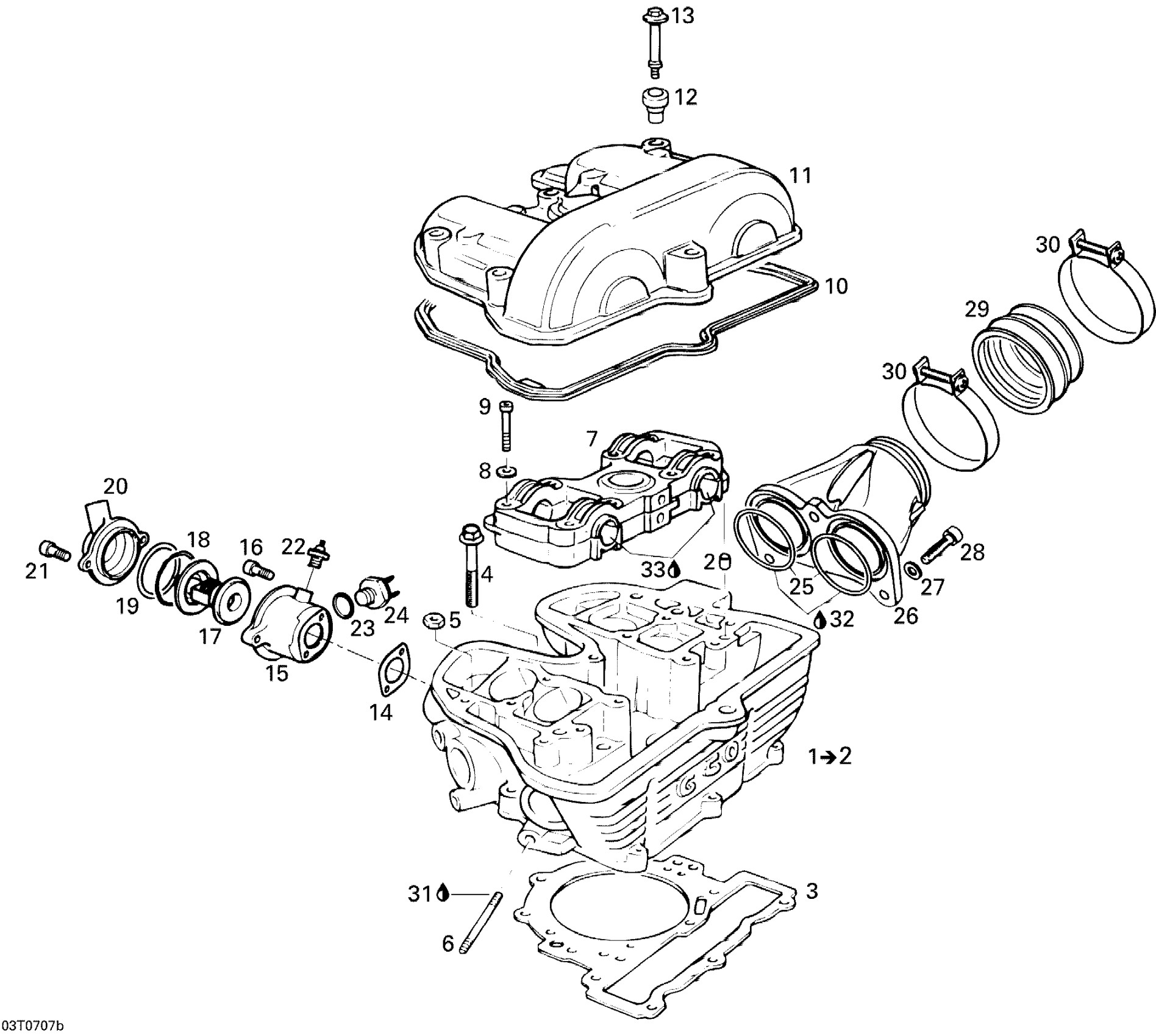

Can-Am DS 650 X, 2007 01- Cylinder Head Diagram

#

Description
Price

1

CYLINDER HEAD - Call your local BRP dealership | Includes 1 to 2

420223916

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

GASKET - Call your local BRP dealership

420650020

$69.99

4

Hex. Flange Screw M8 X 45

207684544

$3.80

5

HEX. FLANGED NUT M10 - Call your local BRP dealership

420242855

Unavailable

6

STUD M8 X 58 - Call your local BRP dealership

420240362

Unavailable

7

Camshaft Bridge

420211326

Unavailable

8

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

9

Socket Head Screw M6 X 45

420241820

Unavailable

10

GASKET - Call your local BRP dealership

420250900

Unavailable

11

VALVE COVER - Call your local BRP dealership

420211301

Unavailable

12

Rubber Bushing

420260050

Unavailable

13

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$25.99

14

Gasket

420650060

Unavailable

15

THERMOSTAT HOUSING - Call your local BRP dealership

420222430

Unavailable

16

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840518

Unavailable

17

Thermostat

420222463

$69.99

18

CORRUGATED WASHER - Call your local BRP dealership

420245770

Unavailable

19

O-RING - Call your local BRP dealership

420650030

Unavailable

20

THERMOSTAT COVER - Call your local BRP dealership

420222440

Unavailable

21

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

420840512

Unavailable

22

Thermostatic Switch

420265392

Unavailable

23

O-RING - Call your local BRP dealership

420230380

Unavailable

24

Inter.Thermost.*Switch-Thermo Fan

420265396

$35.99

25

O-Ring

293300059

$7.51

26

Intake Adaptor

420267230

Unavailable

27

Flat Washer 6 mm

234061410

$1.36

28

Socket Head Screw M6 X 25

205062544

$1.15

29

Carburator Flange 52 mm

420267240

$46.49

30

Norma Gear Clamp

293650090

$4.54

31

Sealant Loctite 648

219703000

$45.99

32

Grease, Super Lube

293550030

$28.99

33

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
