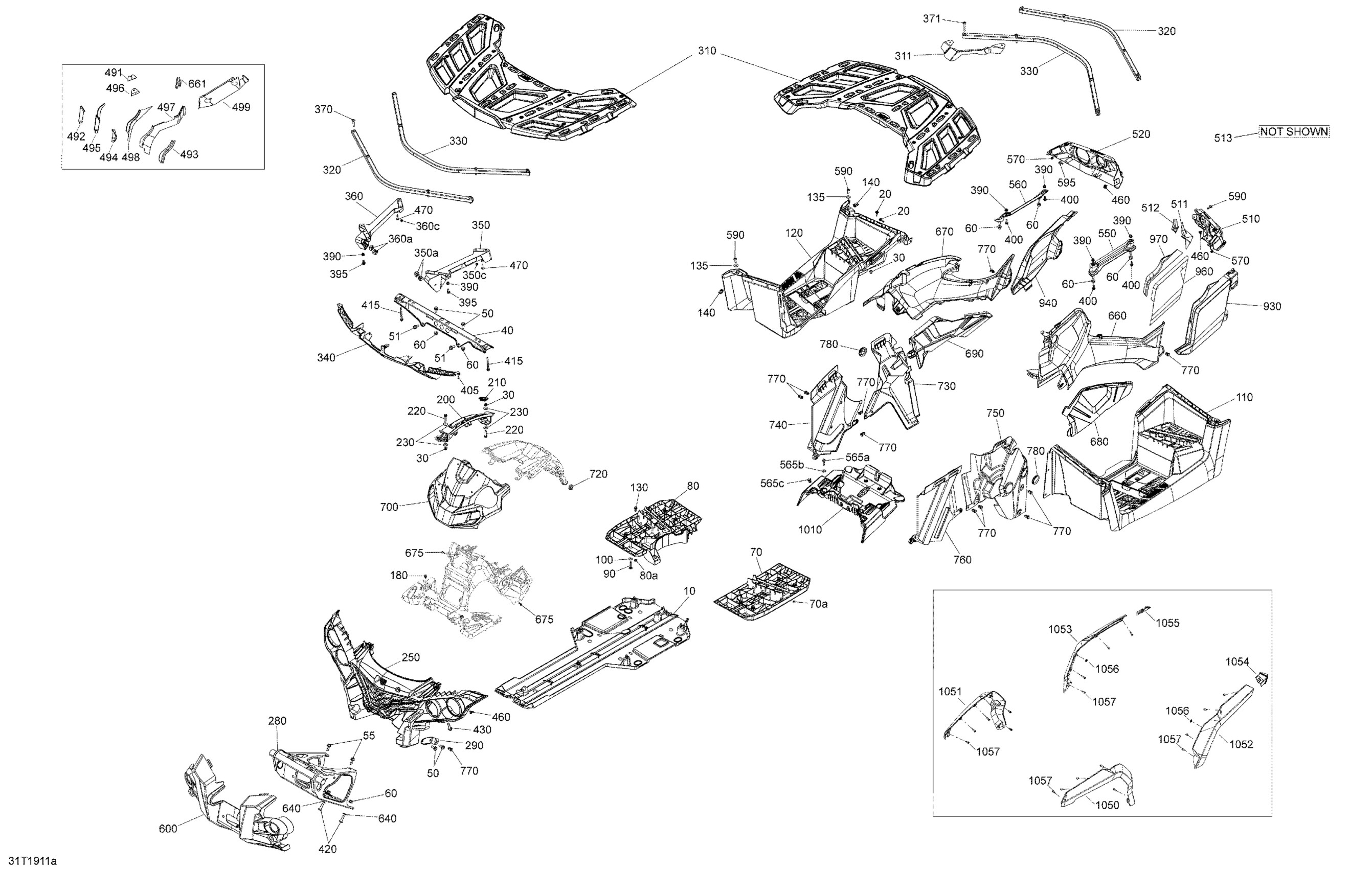

Can-Am 006 - Outlander MAX 570 EFI - PRO NORDIC - T3, 2019 09- Body And Accessories Pro Nordic - 3SKC Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footrest Max

705003525

$189.99

120

RH Footrest Max

705003521

$134.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

200

Indicator | Package PRO T3

715004087

$26.99

210

Shiftgate Trim | Europe

705005003

$10.49

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

310

Rack Kit | Europe, Int'l

715002784

$194.99

311

ESD Bracket

705013222

$48.99

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

371

Screw-torx Button Head M6 X 40

235564054

$6.89

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683534

$2.11

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

495

Heat Shield

707002460

$4.29

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

498

Heat Shield

707002463

Unavailable

499

Heat Shield

707002464

$3.89

510

LH Rear Facia | Europe

705006651

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002293

$10.49

520

RH Rear Facia | Europe

705006652

$15.99

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

565a

Hex Flange Screw M6 X 25

250000841

$7.51

565b

Stainless Steel Flat Washer

234062670

$2.11

565c

Tuflok Plastic Rivet

293150230

$1.47

570

Push Nut

732610072

$2.19

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Screw M6 X 16

207661654

$2.11

600

Front Guard Plate | Europe

705006300

$43.99

640

Ring

705004497

$5.19

660

Squadron Green, LH Lateral Panel | Green Model

705009760

$74.99

661

Heat Shield

707002467

$4.29

670

Squadron Green, RH Lateral Panel | Green Model

705009764

$74.99

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector_Body Panel Kit

715007008

$28.99

690

Engine Cover

705003444

$22.99

700

Gauge Support | Includes 700 to 700a

705012572

$44.99

700a

Gauge Support

705012554

$44.99

710

Dash Kit | Europe, Int'l

715002783

$64.99

720

Grommet

705003264

$4.09

730

RH Rear Inner Fender

705011462

$23.99

740

RH Front Inner Fender

705011463

$18.49

750

LH Rear Inner Fender

705013111

$23.99

760

LH Front Inner Fender

705011465

$18.49

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

1010

Seat Holder

705007948

$58.99

1050

LH Front Mudguard

705003914

$14.69

1051

RH Front Mudguard

705003915

$14.69

1052

LH Rear Mudguard

705003918

$14.69

1053

RH Rear Mudguard

705003920

$14.69

1054

LH Mudgard Cap

705004888

$4.92

1055

RH Mudgard Cap

705004889

$4.92

1056

Push Nut

732610072

$2.19

1057

Self Tapping Screw 8 X 5/8

250001072

$1.37
