Description

Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut M8

233081416

$1.15

30

Front Head Pipe

707600764

$142.99

40

Rear Head Pipe

707601447

$206.49

50

Spring

415107100

$6.35

60

Muffler | Package XMR

707602185

$847.49

60a

Spark Arrestor

707601803

$49.99

60b

Gasket

707601799

$5.99

60d

Socket Head Screw M6 X 20

205062060

$2.32

60e

Muffler End Piece

715900143

$35.99

60f

Support

715900147

$3.29

70

Oxygen Sensor

707600872

$144.99

75

Clip

414227300

$1.67

80

Exhaust Pipe Clamp

293650228

$12.49

100

Vibration Damper

707603323

$11.65

110

Rubber

707600448

$7.90

120

Spacer Bushing

293900116

$3.24

140

Hex. Flange Screw M8 X 35

207683544

$1.69

160

Flat Washer M8

250200158

$2.11

180

Hex. Flange Nut M8

233081416

$1.15

250

Heat Shield

707603724

$13.99

270

Protector

707601484

$12.71

290

Heat Shield

707600996

$24.49

300

Protector

707601485

$12.71

310

Heat Shield

707602604

$19.99

320

Protector

707601425

$19.49

330

Panel Nut M6 X 1.0

250100198

$2.11

340

Hex. Flange Screw M6 X 16

207661644

$0.74

350

Flat Washer 6 mm

234062410

$0.77

360

Panel Nut M6 X 1.0

250100198

$2.11

370

Hex. Flange Screw M6 X 16

207661644

$0.74

400

Hex. Flange Screw M6 X 25

207662534

$2.11

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Grommet

709000582

$4.69

430

Bushing

293900105

$7.65

440

Flat Washer

224060201

$1.26

450

Rubber Bumper

293830005

$8.09

460

Rubber Stopper

708000506

$7.55

500

Pipe Protector

707600932

$15.81

510

Flat Washer

250200082

$0.42

520

Hex. Flange Screw M6 X 12

250000574

$2.11

560

Heat Deflector

707600710

$42.99

570

Heat Shield End Cap

707601255

$45.99

590

Torx Head Screw M6 X 16

250000717

$2.11

600

Stainless Steel Flat Washer

234062670

$2.11

610

Torx Screw M6 X 35

250000541

$2.11

620

Torx Truss Screw M6 X 12

250000767

$2.00

630

Bushing

293900106

$4.55

650

Carriage Bolt M6 X 12

207761244

$1.90

660

Elastic Stop Nut M6

232561414

$0.55

670

Flat Washer 6 mm

234061410

$1.36

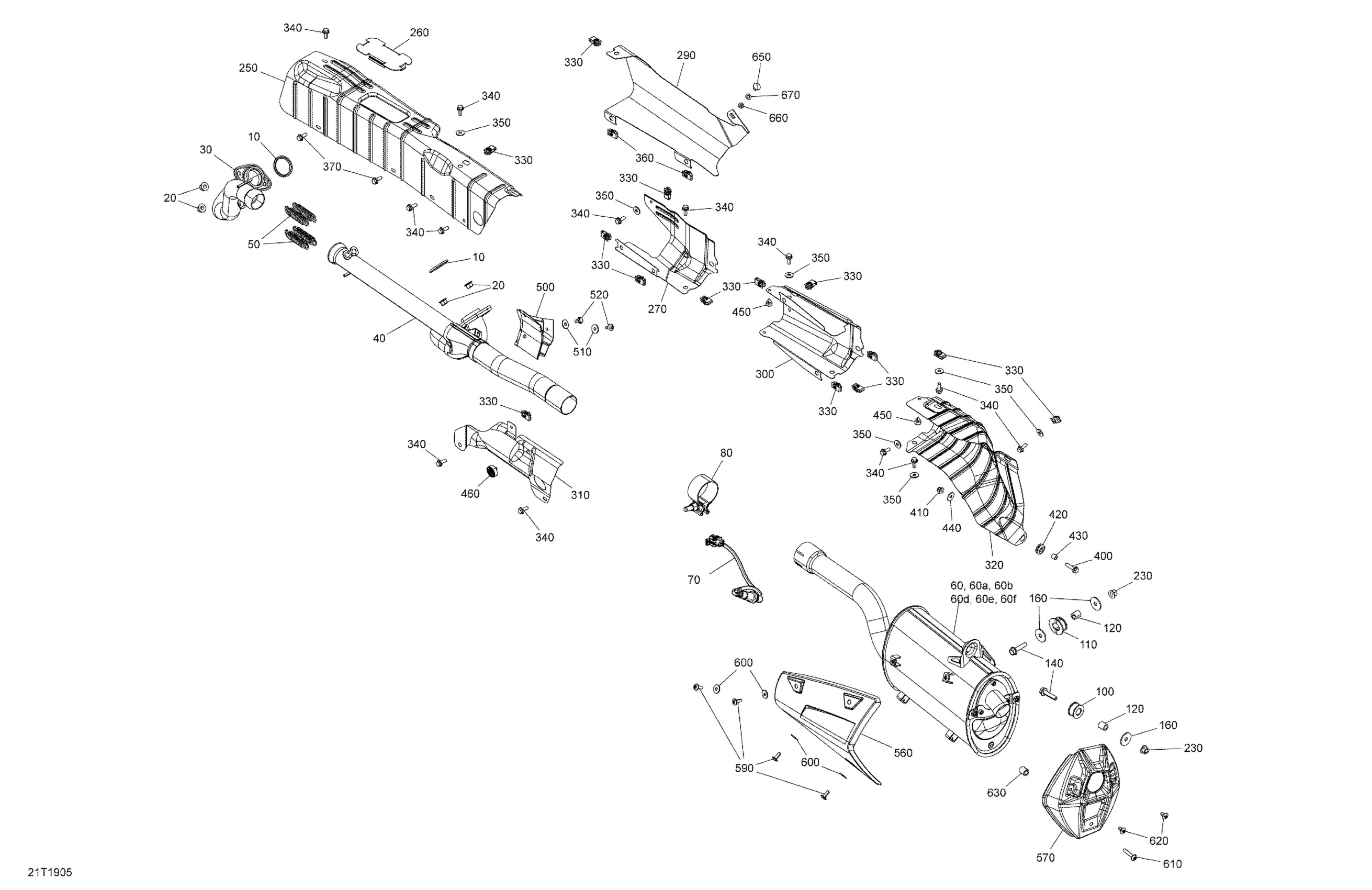

Can-Am 006 - Outlander MAX 570 EFI - PRO NORDIC - T3, 2019 01- Exhaust - 570 EFI Diagram

Gasket

Hex. Flange Nut M8

Front Head Pipe

Rear Head Pipe

Spring

Muffler | Package XMR

Spark Arrestor

Gasket

Socket Head Screw M6 X 20

Muffler End Piece

Support

Oxygen Sensor

Clip

Exhaust Pipe Clamp

Vibration Damper

Rubber

Spacer Bushing

Hex. Flange Screw M8 X 35

Flat Washer M8

Hex. Flange Nut M8

Heat Shield

Protector

Heat Shield

Protector

Heat Shield

Protector

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 16

Flat Washer 6 mm

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Grommet

Bushing

Flat Washer

Rubber Bumper

Rubber Stopper

Pipe Protector

Flat Washer

Hex. Flange Screw M6 X 12

Heat Deflector

Heat Shield End Cap

Torx Head Screw M6 X 16

Stainless Steel Flat Washer

Torx Screw M6 X 35

Torx Truss Screw M6 X 12

Bushing

Carriage Bolt M6 X 12

Elastic Stop Nut M6

Flat Washer 6 mm
