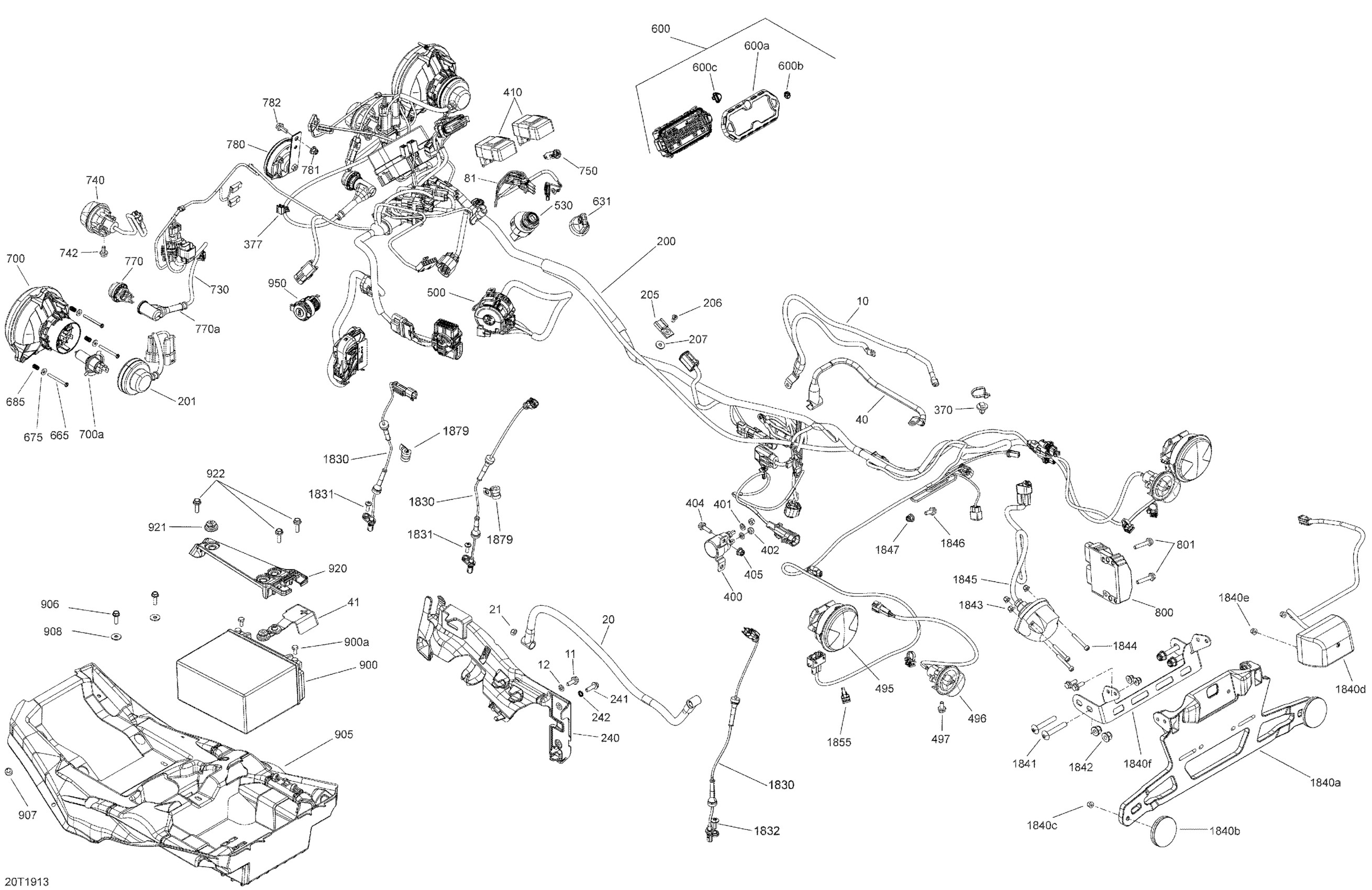

Can-Am 004 - Outlander MAX 450 EFI - T3, 2019 10- Electrical - 450 EFI - DPS Diagram

Ground Cable

710004380

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Positive Cable | Engine 450

710004381

$19.99

Elastic Stop Nut M6

232561414

$0.55

Positive Cable

710004376

$48.99

Battery Cable Cap

710006729

$7.20

Harness

710006169

$1,009.99

Light Cable

710005780

$23.99

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Cable Bracket

707001280

$13.49

Hex. Flange Screw M6 X 20

210262040

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Mount Dart

293730040

$1.04

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flasher Unit

710003239

$78.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Flasher | Europe

710002964

$35.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

LH Multi Fonction Control

710006211

$174.99

Switch_Ignition | Model-Europe

710007865

$68.99

Speedometer

710006216

$339.99

Grey, Electronic Key

710002183

$63.49

Hex. Screw K40 X 45

250000718

$2.11

Flat Washer

517225900

$0.18

Spring

517168600

$7.39

Low Beam

710003900

$114.99

Bulb, 12V 35/35W

710000871

$34.99

Flasher | Europe

710002964

$35.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Pilot Lamp | Model-Europe

710003909

$21.99

Day Light | Europe

710001726

$35.99

Cap Protector | Model-Europe

710003269

$12.11

Horn

710004791

$38.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16

207661644

$0.74

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710006561

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Fixation Plate

710002404

$9.39

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662054

$1.01

DC Outlet

710001248

$37.99

Plate Support | Europe

708300434

$27.99

Red Reflector

705011221

$14.49

License Plate Light | Europe

710005563

$126.99

License Plate Support

710009520

$12.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Torx Truss Screw M8 X 50

250000761

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M5

233251414

$1.04

Socket Head Screw M5 X 35

205053588

$1.90

Trailer Harness

710005846

$229.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Tie-Rap Clip

710002896

$4.39
