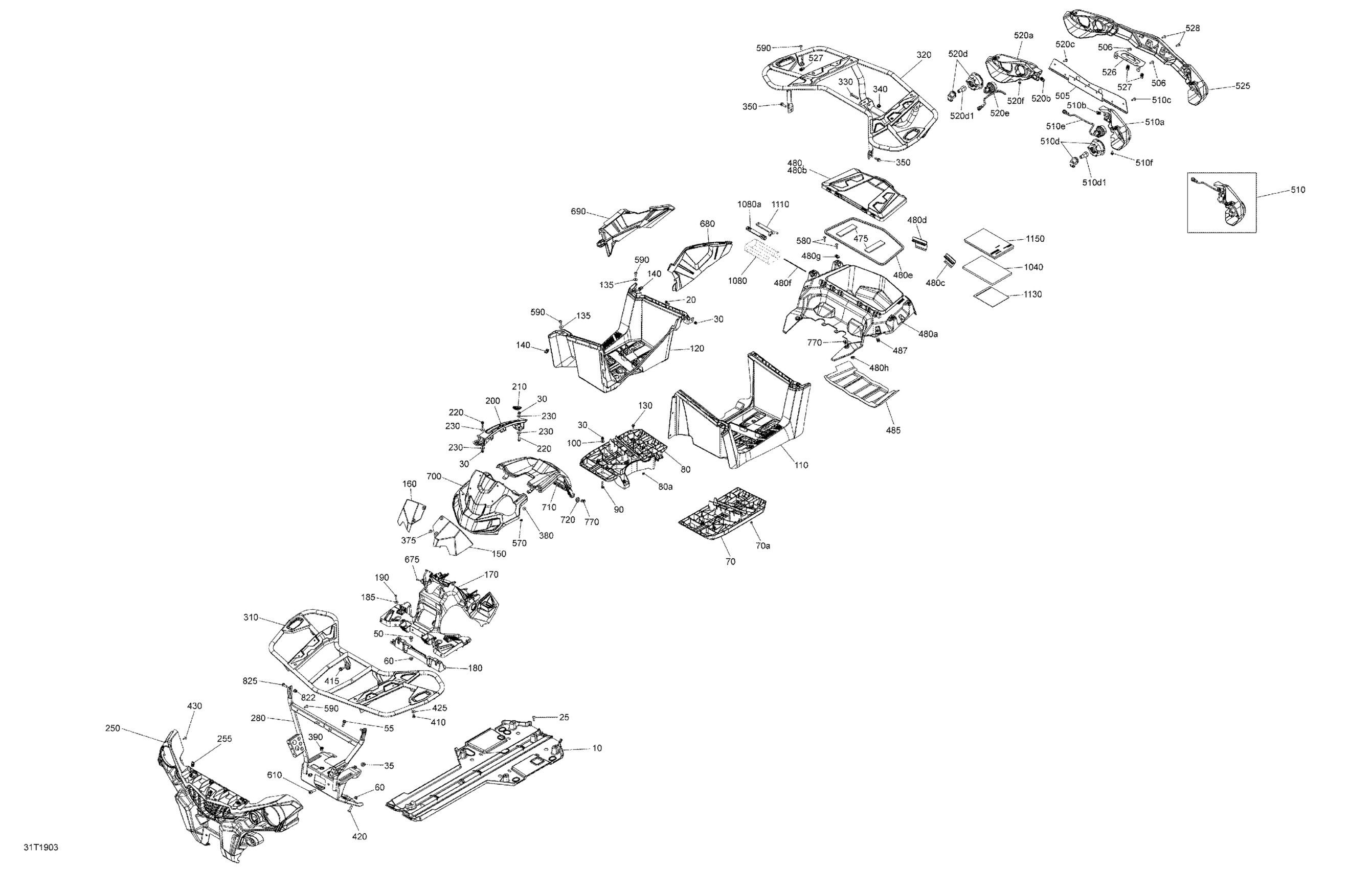

Can-Am 004 - Outlander MAX 450 EFI - T3, 2019 09- Body And Accessories - 450 EFI - T3 Diagram

Protective Plate Kit

715002374

$64.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M10

233201434

$2.09

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Elastic Nut M8

233281434

$2.11

LH Structural Footboard

705011540

$119.99

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.11

Flat Washer 6 mm

234062410

$0.77

LH Footrest Max

705003525

$189.99

RH Footrest Max | Engine 450 MAX Model

705007724

$104.99

Hex. Flange Screw M6 X 16

207661654

$2.11

Flat Washer

224061201

$1.37

Panel Nut M6 X 1.0

250100198

$2.11

Console Support Ass'y | Model-Europe/International

715006101

$63.99

Console Support Insert

705010406

$16.99

Flat Washer M6, Stainless

234062600

$0.77

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Indicator | Engine 450 Europe, T3

715003975

$26.99

Shiftgate Trim | Europe

705005003

$10.49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Front Facia | Model-Europe

705009335

$99.99

Panel Nut M6 X 1.0

250100198

$2.11

Front Frame

705017337

$264.99

Black, Front Luggage Rack

705006887

$285.99

Rear Luggage Rack Ass'y | Except Model North America

715005988

$275.49

Torx Truss Screw M8 X 50

250000761

$7.51

Elastic Flange Nut M8

233281464

$1.01

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Hex. Flange Screw M6 X 12

210261250

$1.90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Torx Screw M8 X 30

250000886

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Screw M4 X 16

250000725

$3.49

Rubber Pad

293830163

$10.49

Storage Cover | Model-Europe International

715004412

$219.99

Storage Cover | Model-Europe International

715004412

$219.99

Storage Cover | Model-Europe International

715004412

$219.99

LH Box Rear Latch

705007448

$11.99

RH Box Rear Latch

705007921

$13.49

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

Retaining Rod

705007531

$78.99

Panel Nut M6 X 1.0

250100198

$2.11

CAP - Call your local BRP dealership

414859400

Unavailable

Heat Deflector Sheet

705007487

$5.09

Panel Nut M6 X 1.0

250100198

$2.11

CABLE HOUSING - Call your local BRP dealership | Includes 55 To 56

708002041

Unavailable

Torx Screw M6 X 20

250000722

$1.68

LH Rear Light Support Ass'y | Includes 510 to 510g

705011495

Unavailable

LH Support

705010329

Unavailable

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Flasher | Europe

710002964

$35.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

RH Support

705010330

Unavailable

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Flasher | Europe

710002964

$35.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Rear Facia

705011887

$76.99

Bracket

705012280

$28.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw M6 X 20

250000722

$1.68

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Screw M8 X 20

236282054

$1.47

Phillips Screw K40 X 16

250000723

$0.98

Deflector_Body Panel Kit

715007008

$28.99

Engine Cover

705003444

$22.99

Gauge Support

705012554

$44.99

Dash Kit

715005837

$33.99

Grommet

705003264

$4.09

Tuflok Plastic Rivet

293150230

$1.47

Front Bumper kit | Model XT, Hunter

715001910

$179.99

Elastic Flange Nut M8

233281464

$1.01

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Pan Torx Screw M8 X 25

250000898

$2.11

Rear Bumper kit | Package Hunter

715001911

$142.99

Cap

705202455

$5.69

Tool Kit

704700168

$40.99

Socket Wrench 14/16MM

529000085

$6.55

Adjustment Wrench

529000035

$2.09

Waranty Registration Form

219400038

Unavailable

Manual Winch Kit | Not Shown

219001376

Unavailable
