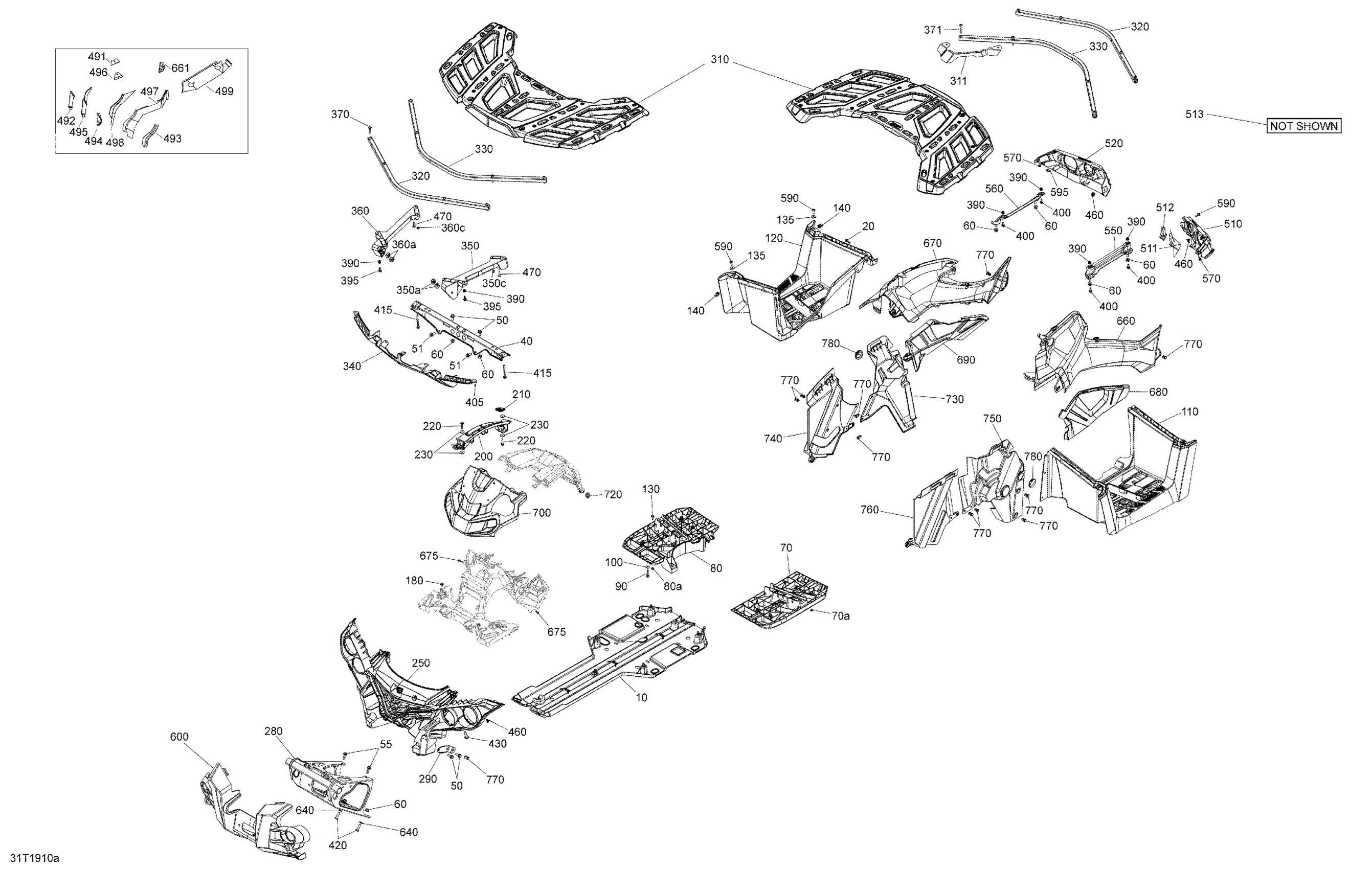

Can-Am 003 - Outlander 570 EFI - PRO NORDIC - T3, 2019 09- Body And Accessories Pro Nordic - 3FKC Diagram

Protective Plate Kit

715002374

$64.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Cargo Rack Center Support

705006812

$61.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Elastic Nut M8

233281434

$2.11

LH Structural Footboard

705011540

$119.99

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.11

Flat Washer 6 mm

234062410

$0.77

LH Step

705007040

$97.99

RH Step

705007039

$129.99

Hex. Flange Screw M6 X 16

207661654

$2.11

Flat Washer

224061201

$1.37

Panel Nut M6 X 1.0

250100198

$2.11

Console Support Ass'y | Model-Europe/International

715006101

$63.99

Rubber Bumper

293830005

$8.09

Indicator | Package PRO T3

715004087

$26.99

Shiftgate Trim | Europe

705005003

$10.49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Fascia

705012822

$119.99

Front Bumper Support

705016893

$349.99

Lower Fender Support

705004565

$6.89

Rack Kit | Europe, Int'l

715002784

$194.99

ESD Bracket

705013222

$48.99

Sectional Bent Tube

705016640

$38.99

Bent Sectional Tube

705016092

$42.99

Lugage Rack Moulding

705004523

$24.49

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Stop Nut M6

232561600

$1.15

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Stop Nut M6

232561600

$1.15

Black, Torx Screw M6 X 35

250000646

$0.98

Screw-torx Button Head M6 X 40

235564054

$6.89

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Screw K40 X 10

241140060

$1.48

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

Torx Screw M8 X 30

250000886

$2.11

Hex. Flange Screw M8 X 35

207683534

$2.11

Edge Clip

517302785

$0.88

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

Heat Shield

707002456

$3.89

Heat Shield

707002457

$3.89

Heat Shield

707002458

$19.99

Heat Shield

707002459

$3.89

Heat Shield

707002460

$4.29

Heat Shield

707002461

$3.89

Heat Shield

707002462

$3.89

Heat Shield

707002463

Unavailable

Heat Shield

707002464

$3.89

LH Rear Facia | Europe

705006651

$15.99

Heat Shield

707002103

$10.49

Heat Shield

707002107

$2.59

Heat Shield

707002293

$10.49

RH Rear Facia | Europe

705006652

$15.99

LH Support

705007277

$30.99

RH Support

705007278

$30.99

Push Nut

732610072

$2.19

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Screw M6 X 16

207661654

$2.11

Front Guard Plate | Europe

705006300

$43.99

Ring

705004497

$5.19

Squadron Green, LH Lateral Panel | Green Model

705009760

$74.99

Heat Shield

707002467

$4.29

Squadron Green, RH Lateral Panel | Green Model

705009764

$74.99

Phillips Screw K40 X 16

250000723

$0.98

Deflector_Body Panel Kit

715007008

$28.99

Engine Cover

705003444

$22.99

Dash Kit | Europe, Int'l

715002783

$64.99

Gauge Support | Includes 700 to 700a

705012572

$44.99

Grommet

705003264

$4.09

RH Rear Inner Fender

705011462

$23.99

RH Front Inner Fender

705011463

$18.49

LH Rear Inner Fender

705013111

$23.99

LH Front Inner Fender

705011465

$18.49

Tuflok Plastic Rivet

293150230

$1.47

Rubber Cover

293250242

$6.99
