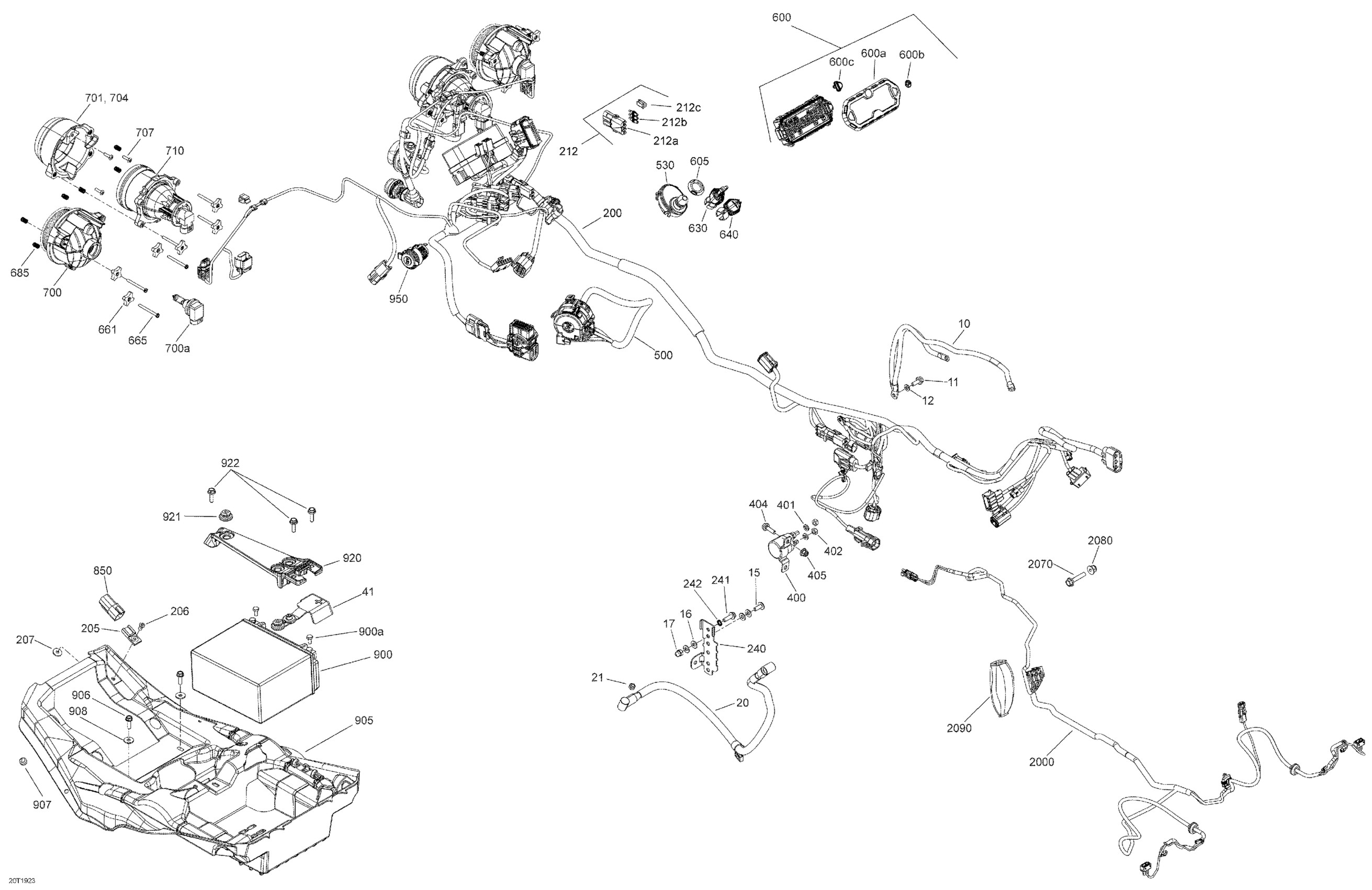

Can-Am 001 - Outlander 6X6 - 650 EFI - International, 2019 10- Electrical 6X6 - International Diagram

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Positive Cable

710004377

$27.99

Elastic Stop Nut M6

232561414

$0.55

Positive Cable

710004376

$48.99

Battery Cable Cap

710006729

$7.20

Harness | CARB Vehicle - Packages XTP, XMR & LTD

710006240

$989.99

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Clip

710000992

$4.29

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Wire Seal

278000216

$3.19

Clip

710000992

$4.29

Connector Bracket

710004118

$5.40

Hex. Flange Screw M6 X 20

210262040

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Clip

414227300

$1.67

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Switch Handle

710006134

$71.99

Socket Head Screw M5 X 35

205053588

$1.90

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Speedometer Ass'y | Includes 600 to 600c

710005599

$329.99

Trim Ring

710002092

$8.99

Lens

415129320

$24.49

Button

710001473

$13.71

Safety Nut (DESS Switch)

278002963

$3.28

BRP Logo13 mm

704904615

$13.49

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Low Beam | Includes 54 to 55

710006177

$119.99

Bulb 12V 55W

715900141

$41.49

RH High Front Housing

710002291

$28.99

LH High Front Housing

710002292

$22.49

Phillips Screw K40 X 16

250000723

$0.98

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Voltage Regulator

710005842

$189.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Connector Plug

710004904

$8.79

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710006561

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Fixation Plate

710002404

$9.39

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662054

$1.01

DC Outlet

710001248

$37.99

Rear Light Harness

710005932

$299.99

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Sheath | Not Shown

710004193

$20.49
