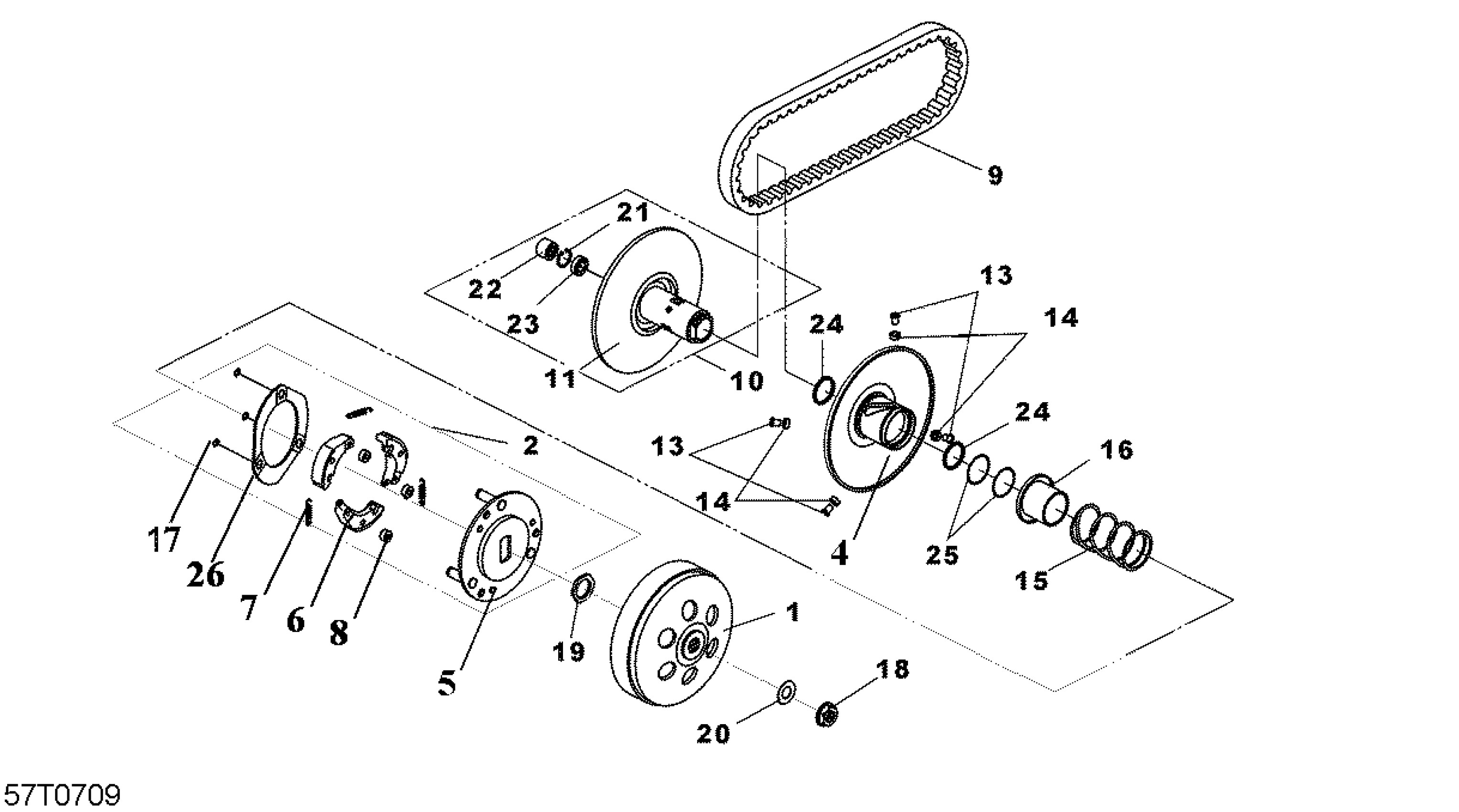

Can-Am DS 250, CE, 2007 05- Driven Pulley Diagram

#

Description
Price

1

Outer Clutch

S22101HMA000

$147.99

2

Drive Plate

S22300HMB000

$299.99

4

Movable Flange

S23220HMA000

$179.99

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Not Available As Spare Parts

NASP/NDPR

Unavailable

7

Not Available As Spare Parts

NASP/NDPR

Unavailable

8

Not Available As Spare Parts

NASP/NDPR

Unavailable

9

Drive Belt

S23100RB1000

$158.99

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Fix Flange

S23210HMA000

$195.99

13

Pin

S23225HMA000

$8.11

14

Guide Roller

S23226HMA000

$8.89

15

Driven Pulley Spring

S23233HMA000

Unavailable

16

Seal Collar

S23237HMA000

$20.99

17

Not Available As Spare Parts

NASP/NDPR

Unavailable

18

NUT FLANGE - Call your local BRP dealership

S90201KR8751

Unavailable

19

Special Nut

S90202HMA000

$8.01

20

Thrust Washer

S90401KJ9000

$2.09

21

Circlip

S90602HMA000

$3.93

22

Needle Bearing

S91006HMA300

$84.99

23

Bearing

S91007HMA300

$22.99

24

Oil Seal

S91211HMA000

$7.34

25

O-ring

S91305HMA000

$4.23

26

Not Available As Spare Parts

NASP/NDPR

Unavailable
