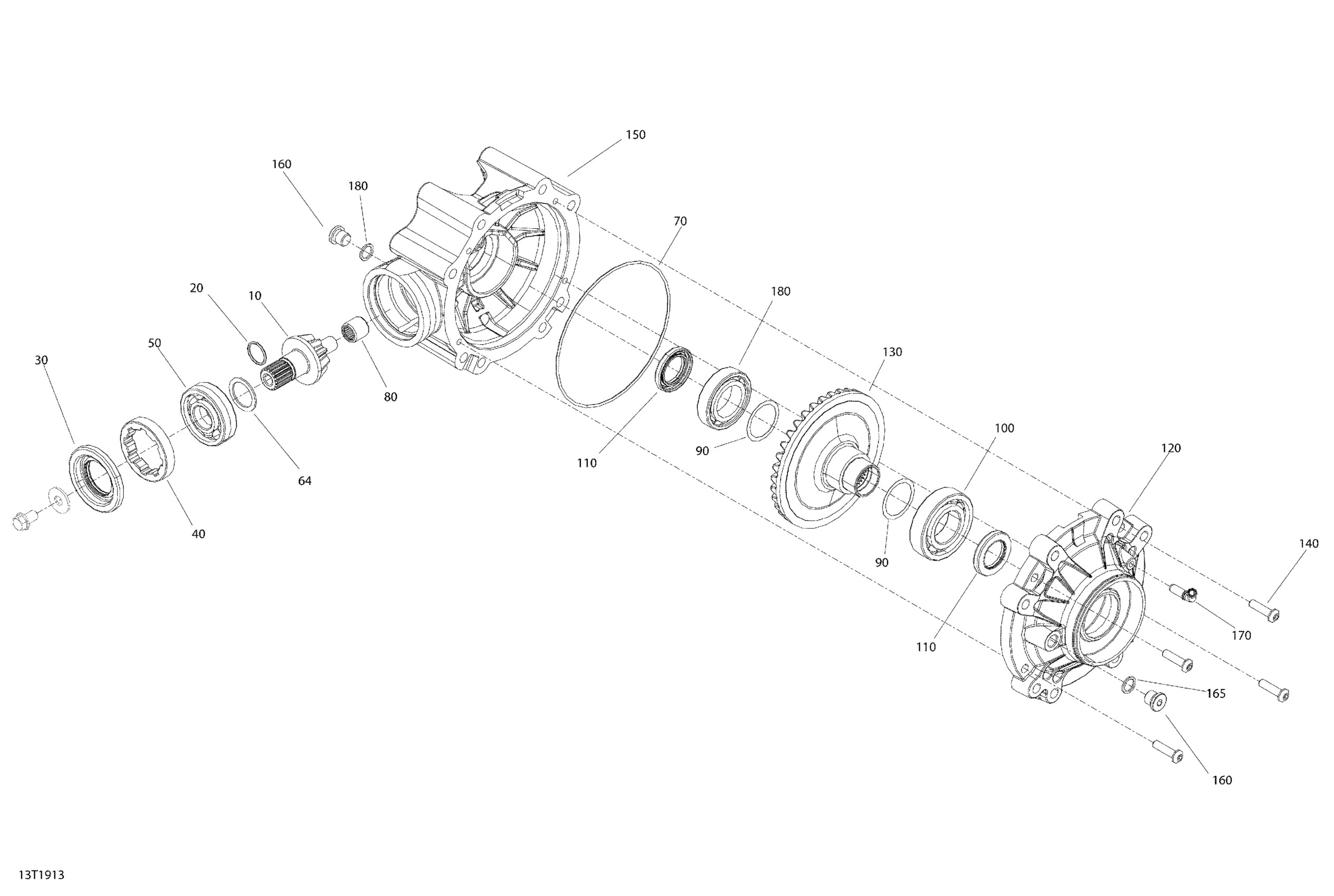

Can-Am 002 - Outlander MAX 6X6 - 650 EFI - North America, 2019 08- Rear Drive - Final Drive Unit Diagram

Description

Price

PINION 10 TOOTH - Call your local BRP dealership

705501571

$234.99

O-Ring | 4X4

705500267

$7.65

Oil Seal | 4X4

705401481

$19.49

Nut | 4X4

705401603

$35.99

Ball Bearing | 4X4

705500260

$31.99

Pinion Gear Shim

705501162

$16.49

Seal

705502064

$8.47

Needle Bearing

705501408

$69.99

Differential Shim 0.02 mm

705502060

$13.76

100

Ball Bearing

705502738

$59.49

110

Oil Seal

705501996

$21.99

120

Cover Case

705502197

Unavailable

130

Gear, 36 Tooth

705501397

$449.99

140

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

150

Rear Gear Case

705502195

Unavailable

160

Fill Level Plug | 4X4

705500504

$10.01

165

Copper Washer | 4X4

705500506

$0.45

170

Breather Tube

705501584

$14.99

180

Ball Bearing

705502737

$48.49

200

LARGER CAP - Call your local BRP dealership | not shown

705502152

Unavailable

210

SMALLER CAP - Call your local BRP dealership | not shown

705502153

Unavailable

240

Rubber Plug | not shown

705502240

Unavailable
