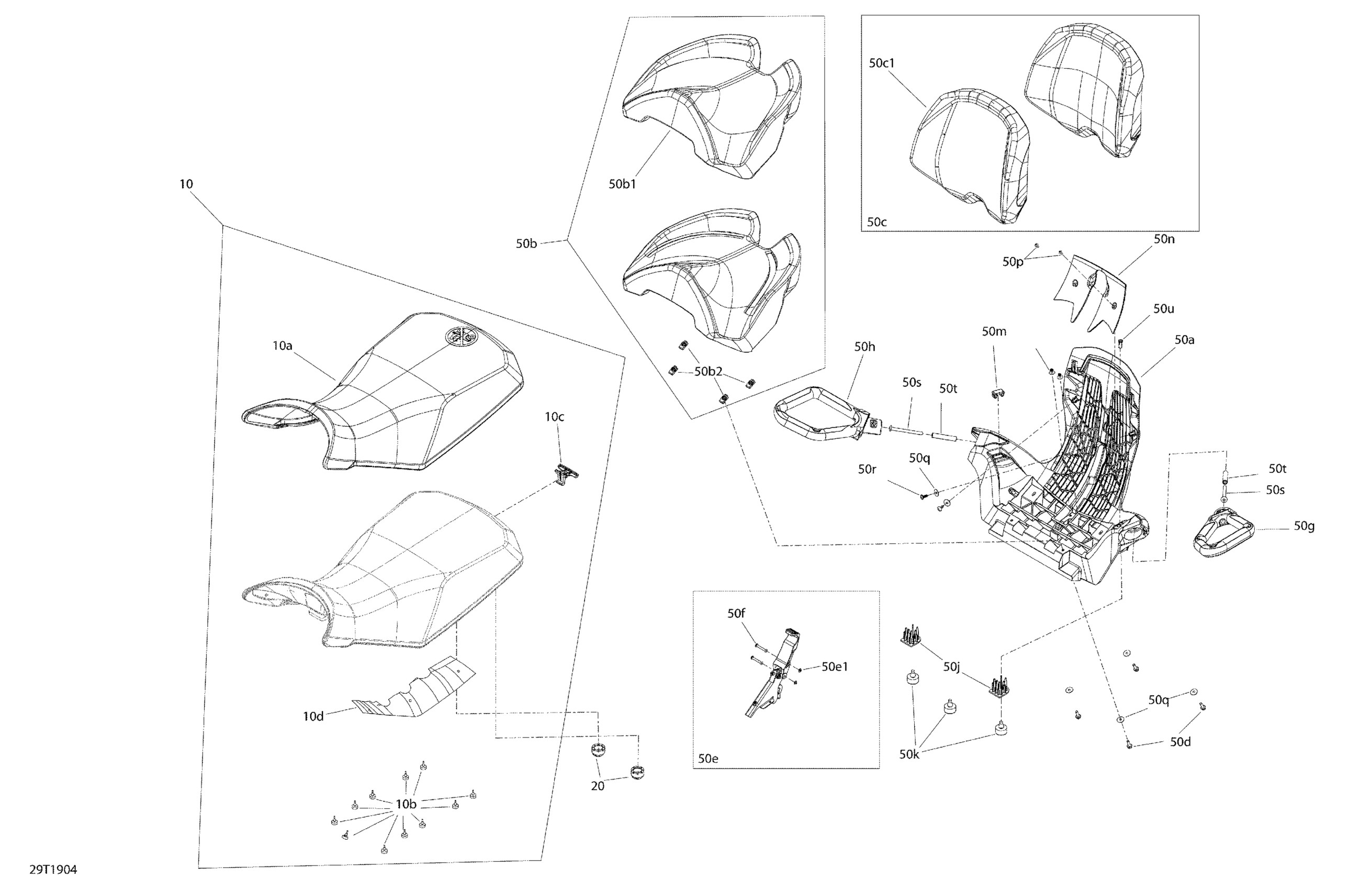

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - North America, 2019 09- Seat - 450 EFI & 570 EFI MAX Diagram

Description

Price

Seat Ass'y | Includes 1 to 4

708002491

$349.99

10a

Black, Seat Cover

708000724

$77.49

10b

Rubber Stopper

708000759

$4.19

10c

Latch

708000909

$6.29

10d

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

Bumper Rubber

708000760

$10.49

50a

Seat Base

708002574

$249.99

50b

Rear Seat | MAX Model

708002088

$229.99

50b1

Black, Seat Cover

708001290

$150.49

50b2

Panel Nut M6 X 1.0

250100198

$2.11

50c

Back Rest

708002085

$519.99

50c1

Back Rest Cover

708001841

$123.49

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50e

Latch

708001532

$67.99

50e1

Flat Washer M5

234051410

$0.53

50f

Pop Rivet 3/16”

293150108

$1.19

50g

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50h

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50j

Seat Support

708001483

$2.99

50k

Rubber Stopper

708000758

$12.99

50m

Insert

708001511

$4.29

50n

Cap

708001512

$13.99

50p

Torx Truss Screw K40 X 12

250000577

$2.11

50q

Flat Washer

224060201

$1.26

50r

Oval Head Torx Screw K60 X 16

250000546

$2.11

50s

Torx Truss M8 X 90

250000806

$7.51

50t

Sleeve

705009248

$14.99

50u

Pilot Lamp Cap

710003910

$4.29
