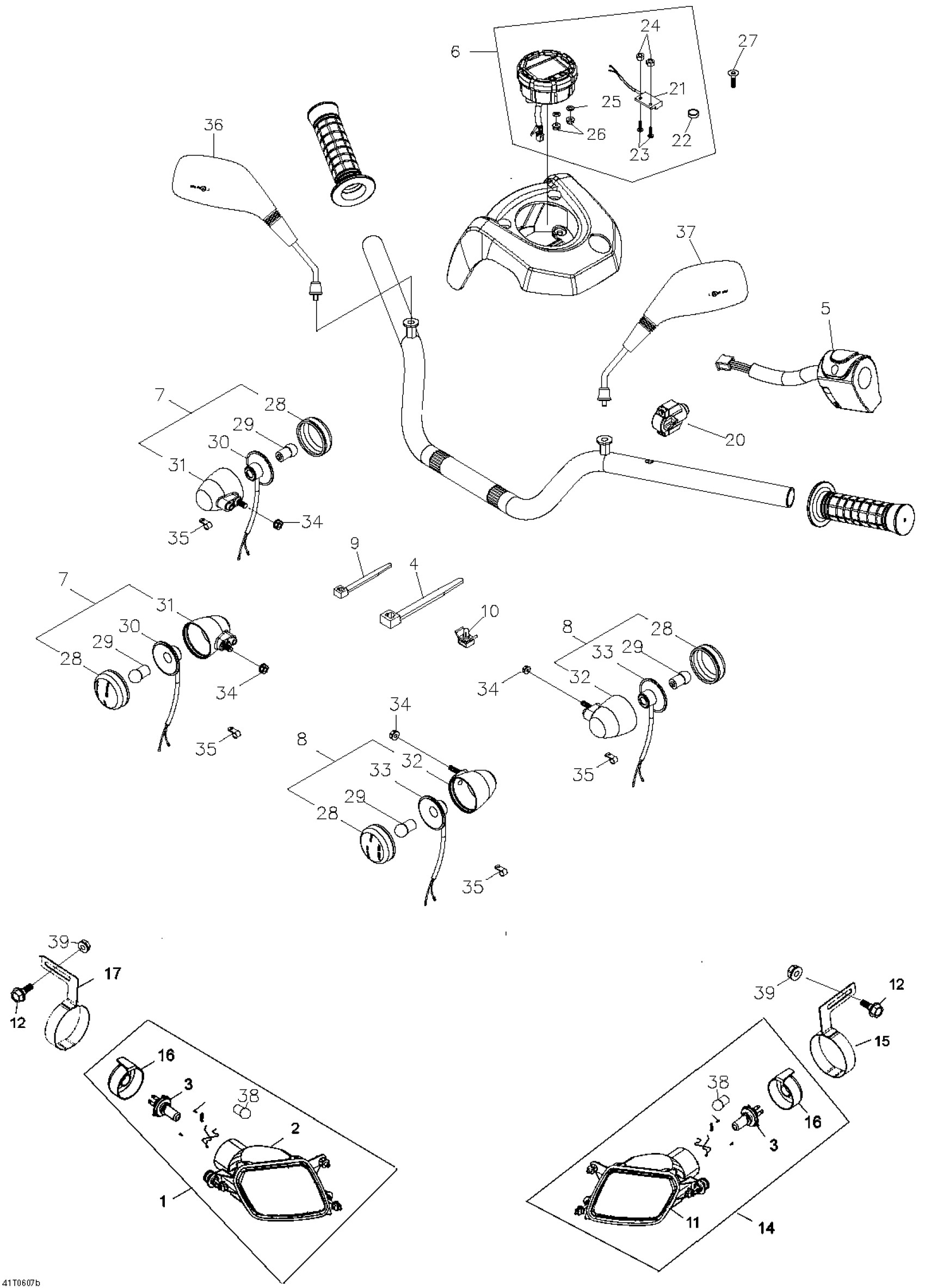

Can-Am Rally 175, 2006 10- Electrical Accessories EUROPE Diagram

#

Description
Price

1

RH front Light Ass'y

A3310017900A

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

BULB - Call your local BRP dealership

A34901179000

Unavailable

4

Tie-Rap 180 mm

414115200

$0.11

5

LH SWITCH - Call your local BRP dealership

A3520017900A

Unavailable

6

Speedometer

A37200179000

Unavailable

7

RH Turn Signal Light

A3340015900A

Unavailable

8

LH Turn Signal Light

A3345015900A

Unavailable

9

Tie-Rap 180 mm

414115200

$0.11

10

Mount Dart

293730040

$1.04

11

Lamp Housing

3311217900A

Unavailable

12

HEX.WASHER LADDER BOLT M6 X 16 - Call your local BRP dealership

A901120601610

Unavailable

13

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205453546

Unavailable

14

LH front Light Ass'y

A3320017900A

Unavailable

15

LH HEAD LIGHT BRACKET - Call your local BRP dealership

A33154179000

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

RH Head Light Bracket

A33155179000

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Flat Head Phillips Bolt

A9390206012

Unavailable

20

SWITCH - Call your local BRP dealership

A35115179000

Unavailable

21

Sensor

A37218169000

Unavailable

22

Magnet

A37217169000

Unavailable

23

Phillips Screw

A9350003010

Unavailable

24

NUT HEX. - Call your local BRP dealership

A9400103000

Unavailable

25

PLAIN WASHER - Call your local BRP dealership

A941010615010

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

PHILLIPS SCREW M6 X 15 - Call your local BRP dealership

A9370106015G

Unavailable

28

Signal Cover

A3341014500A

Unavailable

29

Bulb

A3490511800A

Unavailable

30

Socket Signal

A33401145000

Unavailable

31

RH Socket Signal

A3342515900A

Unavailable

32

LH Socket Signal

A33451145000

Unavailable

33

Socket Signal

A3343515900A

Unavailable

34

PHILLIPS SCREW M6 X 12 - Call your local BRP dealership

A9370106012G

Unavailable

35

Clip

A90667179000

Unavailable

36

RH MIRROR - Call your local BRP dealership

A88120145000

Unavailable

37

LH MIRROR - Call your local BRP dealership

A88110145000

Unavailable

38

Bulb

A34909179000

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
