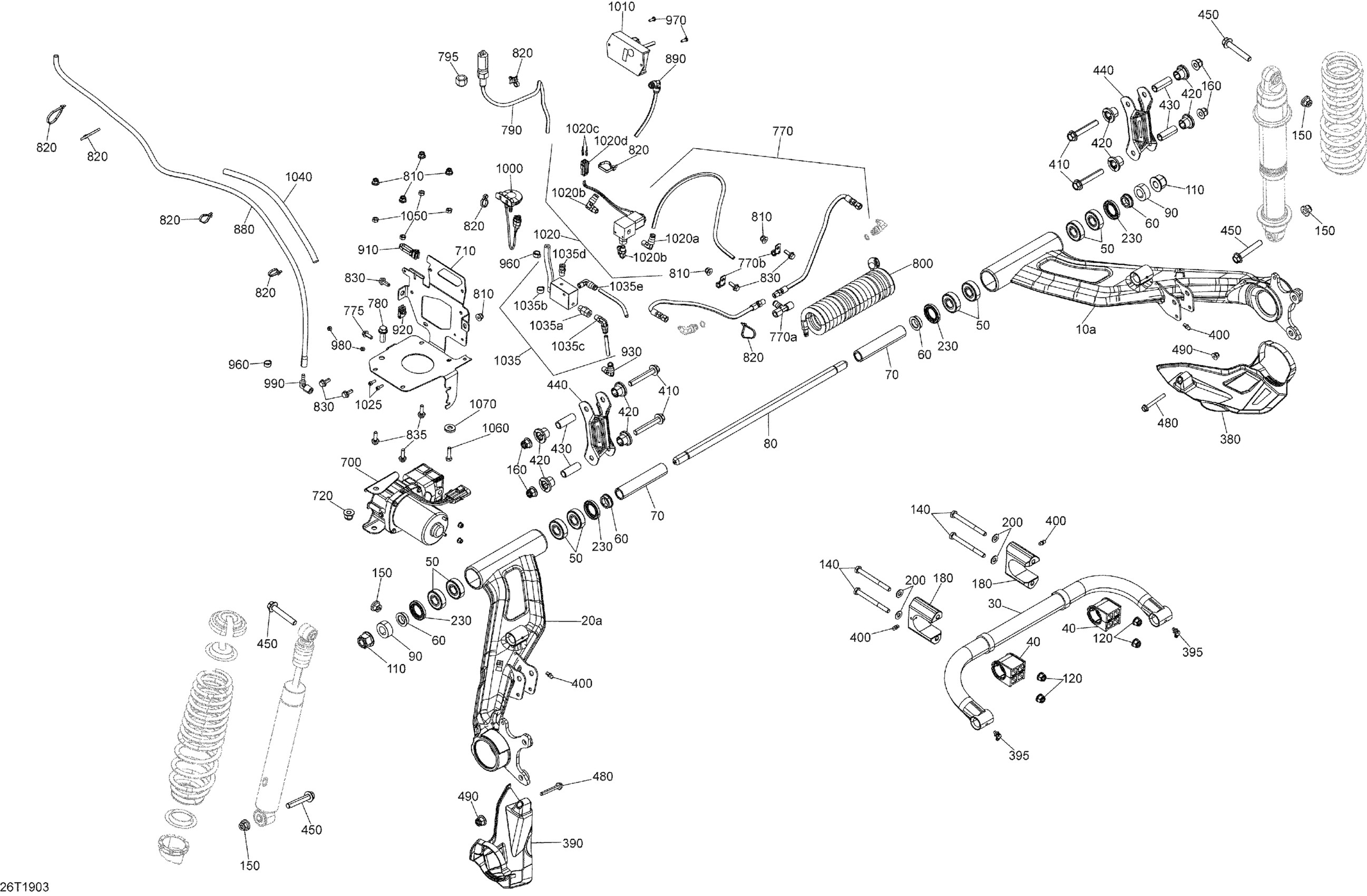

Can-Am 006 - Outlander MAX 1000R EFI - North America, 2019 08- Rear Suspension - Package LTD Diagram

#

Description
Price

10a

LH Swing Arm

706003041

$296.99

20a

RH Swing Arm

706003042

$296.99

30

Sway Bar

706003050

$126.99

40

Stabilizer Bar Bushing

706004641

$11.54

50

Ball Bearing

293350145

$13.75

60

Spacer

706001282

$12.99

70

Spacer

706002259

$28.99

80

Axial Pivot M16

706001664

$72.99

90

Flat Washer M17

250200112

$7.99

110

Hex. Flange Elastic Nut M16

233211466

$1.99

120

Hex. Flange Elastic Nut M8

233281434

$2.11

140

Hex. Screw M8 X 85

250001035

$1.89

150

Hex. Flange Elastic Nut M10

233201436

$2.11

160

Hex. Flange Elastic Nut M10

233201436

$2.11

180

Bushing Holder

706001099

$33.99

200

Flat Washer M8

234081430

$2.11

230

Seal

293200144

$5.09

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$18.49

390

RH Protector | All Except Packages XXC & Hunting Edition

706003053

$18.49

395

Grease Fitting 90°

293550056

$1.15

400

Grease Fitting

250000315

$5.82

410

Hex. Flange Screw M10 X 65

207606536

$4.44

420

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

430

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

440

Sway Bar Linkage

706001020

$13.99

450

Hex. Flange Screw M10 X 6

207606046

$4.12

470

Tork Screw M6 X 16

250000534

$2.11

475

Flat Washer

250200039

$0.74

700

Compressor Ass'y

706000964

$909.99

710

Bracket | Package LTD

706002114

$78.99

720

Hex. Flange Elastic Nut M10

233201414

$1.58

770

Rear Shock Distributor

706002020

$219.99

770a

T Fitting

706000946

$35.99

770b

Clamp

705601636

$7.87

775

Hex. Flange Screw M6 X 16

210261650

$1.67

780

Hex. Flange Screw M10 X 25

250001054

$14.21

790

Inflater Ass'y | Package LTD

706001827

$92.99

790a

O-Ring

414811400

$7.06

795

Hex. Nut With Nylon 1/2" X 20

250100124

$7.51

800

Auxiliary Hose

706000808

$104.99

810

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

820

Tie-Rap 173 mm

293750009

$1.04

830

Hex. Flange Screw M6 X 16

207661644

$0.74

835

Hex. Flange Screw M6 X 20

207662044

$2.00

840

Tie Wrap 368 mm

293750008

$1.04

880a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

881

Tie Wrap 142 mm

293750002

$1.25

882

Tie Wrap 142 mm

293750002

$1.25

883

Tie Wrap 142 mm

293750002

$1.25

884

Tie Wrap 142 mm

293750002

$1.25

885

Tie Wrap 142 mm

293750002

$1.25

886

Tie Wrap 142 mm

293750002

$1.25

890

Hose Ass'y

706002015

$39.99

910

Clip Tie-Rap

710002899

$8.49

920

Panel Nut M6 X 1.0

250100198

$2.11

930

Elbow 90°

706000928

$27.99

960

Clamp Oetiker

293650207

$12.17

970

HEX. SCREW M4 X 12 - Call your local BRP dealership

207141244

Unavailable

980

Elastic Stop Nut M4

232541414

$0.58

990

Elbow 90°

706001405

$18.49

1000

Air Suspension Sensor

710001825

$189.99

1010

Calibrated Module | LTD

710004405

$379.99

1020

Pressure Collector Ass'y

706002014

$389.99

1020a

Connector

706000869

$34.99

1020b

Elbow 90°

706000928

$27.99

1020c

Male Terminal

515175232

$1.58

1020d

Male Terminal Housing, 2 Circuits

515175654

$9.12

1025

Socket Head Screw M4 X 12

205041254

$2.11

1035

Hose Ass'y

706002012

$158.99

1035a

Check Valve

706000860

$42.99

1035b

Clamp Oetiker

293650207

$12.17

1035c

Elbow 90°

706000928

$27.99

1035d

Connector

706000869

$34.99

1035e

Elbow 90°

706000872

$28.99

1040

Protector Tube

504153074

$14.49

1050

Hex. Nut M6

232061414

$0.53

1060

Hex. Screw M6 X 25

207162544

$1.15

1070

Flat Washer

224061121

$0.53
