Description

Price

1

Front Wheel Washer

S44611RCA000

$0.95

2

Front Wheel Hub

S44610RCA000

$101.49

3

Wheel Stud

S44612RCA000

$1.78

4

Inner Spacer

S44620RCA000

$8.99

5

Outer Collar

S44622RCA000

$9.79

6

Brake Disk

S45351RCA000

$91.99

7

Bolt M8 X 24

S90105KR3000

$4.55

8

Radial Ball Bearing

S91208GA7003

$20.99

9

Oil Seal

S91202RCA000

$7.51

10

Oil Seal

S91205RCA000

$14.28

11

Ball Bearing

S961506004310

$20.99

12

RH Upper Arm Ass'y

S50200RCA000

$116.49

12

LH Upper Arm

S50210RCA000KB

$116.49

13

Bushing

S50201RCA000

$23.49

14

RH Lower Arm Ass'y

S50220RCA000

$116.49

14

LH Lower Arm Ass'y

S50230RCA000

$116.49

15

RH Knuckle Ass'y

S50240RCA000

$211.99

15

LH Knuckle Ass'y

S50250RCA000

$211.99

16

Hex. Castellated Nut M12

232221414

$3.17

17

Hex. Castlellated Nut 14 mm

S94011142000S

$2.30

18

Cotter Pin

371003400

$0.71

18

CIRCLIP - Call your local BRP dealership

S9451029120

Unavailable

19

Flanged Bolt M10 X 60

S958011006007

$1.18

20

Flanged Nylon Nut 10 mm

S90304RCA000

$5.66

22

Ball Joint

S50213RCA000

$46.49

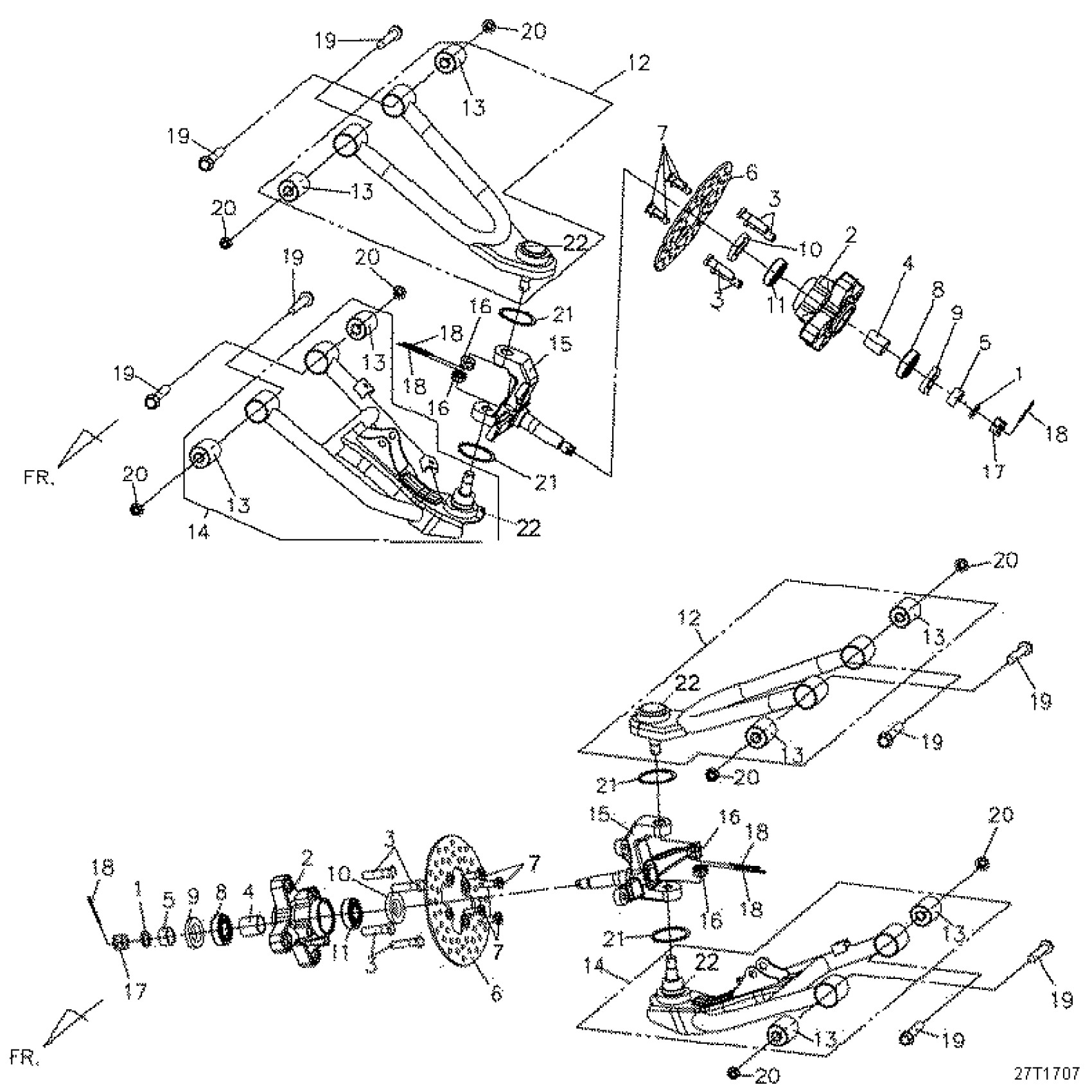

Can-Am 4- DS 250, 2018 07- Front Suspension North America Diagram

Front Wheel Washer

Front Wheel Hub

Wheel Stud

Inner Spacer

Outer Collar

Brake Disk

Bolt M8 X 24

Radial Ball Bearing

Oil Seal

Oil Seal

Ball Bearing

RH Upper Arm Ass'y

LH Upper Arm

Bushing

RH Lower Arm Ass'y

LH Lower Arm Ass'y

RH Knuckle Ass'y

LH Knuckle Ass'y

Hex. Castellated Nut M12

Hex. Castlellated Nut 14 mm

Cotter Pin

CIRCLIP - Call your local BRP dealership

Flanged Bolt M10 X 60

Flanged Nylon Nut 10 mm

Ball Joint
